Safe Working Load: 500kg - 30,000kg
Standard Height of Lift: 3m
The Tiger TCB chain block is constructed of a rugged steel lightweight body enabling great portability in any application. The Tiger chain block is aimed at the off-shore rigging industry however it can easily be used in a number of other industries.
Extra protection
The Tiger chain block has a few extra features that some regular chain block's lack:
- Double cover protection for brake chamber
- Drop forged and heat treated alloy hooks
- High quality alloy calibrated load chain
- Efficient, high safety reliable twin pawl mechanical brake
- Guaranteed light load protection
- Heat treated alloy steel triple spur gears and pinion shaft
- Operating temperature of -50 C to + 50 C
- Proof load tested to 1.5 times rated capacity
Manufactured from the highest quality steel's providing a ruggid lightweight hoist unit. Tiger proud their hoist on its exceptionally short headroom and ability to be used in applications where ever centimeter of headroom counts.
The super reliable and ultra efficient twin brake pawl system provides instant protection from any slipping of dropping of the load when the hand chain is released, this also allows for lowering under perfect control for precise operations.
Double Protection- Always.
The hoist's brake chamber is protected against the harshest of enviroments and foeign objects by the ratchet brake cover and hand chain wheel cover.
Only the highest quality load chain's are used to build Tiger chain blocks, a combination of the highest quality alloy, calibrated in grades 80 or 100.

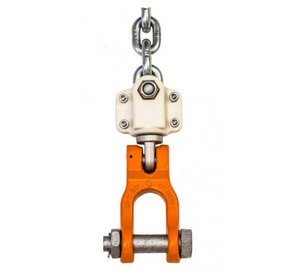

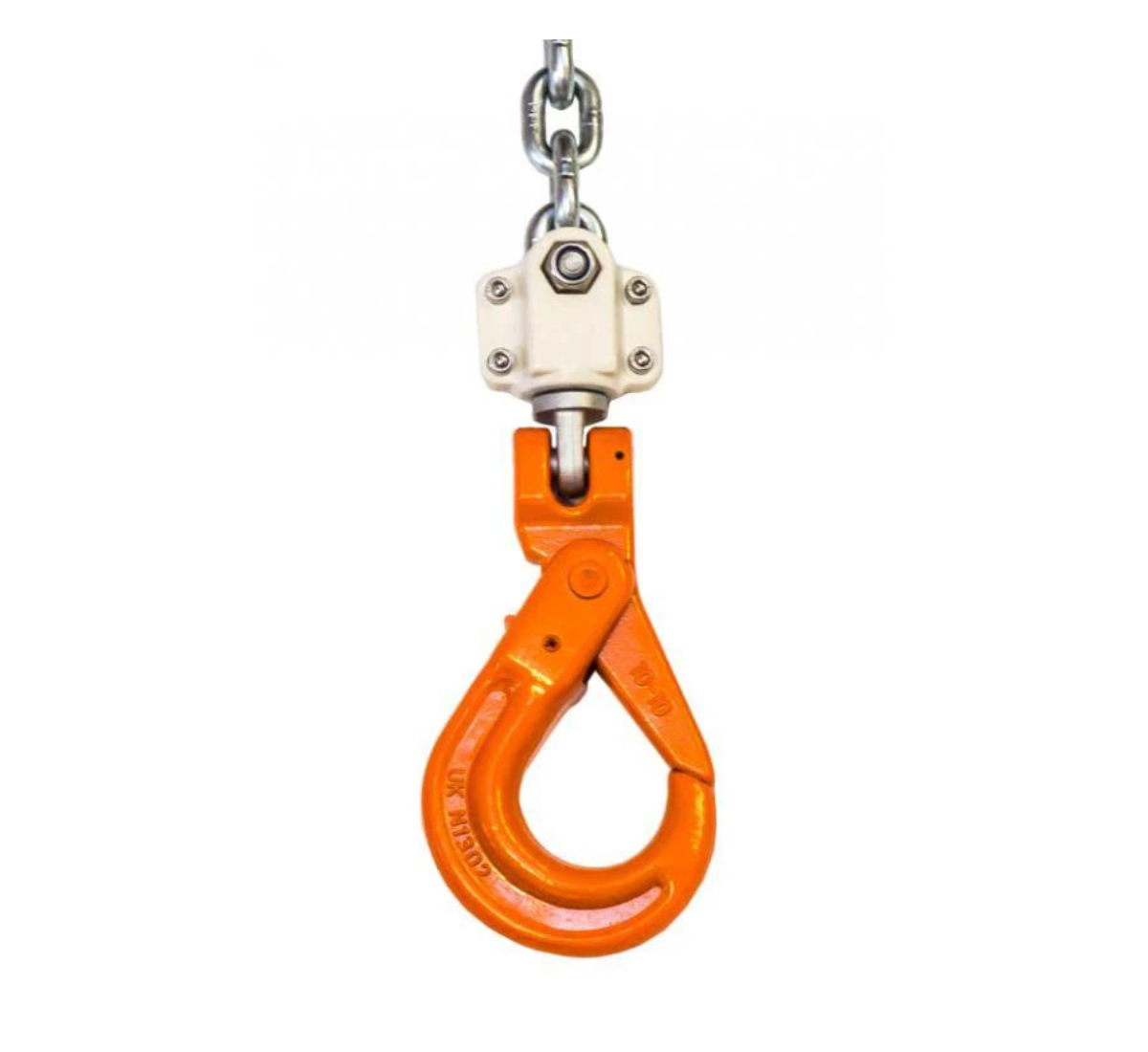

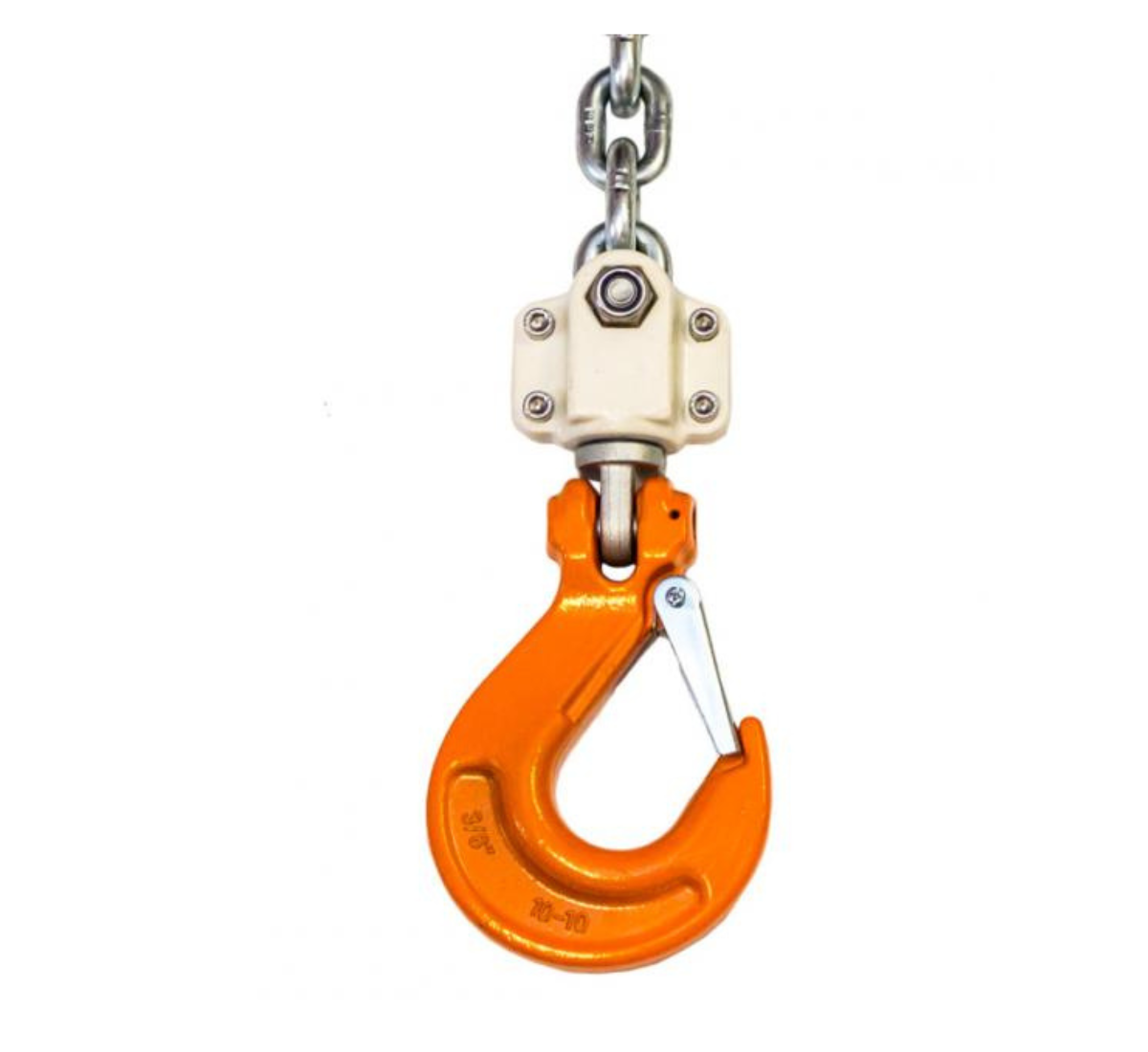

Drop forged and heat treated alloy top hooks and load hooks are used to suspend and lift. Heavy duty latch kits ensure that once the load is secure it cannot slip away by accident, providing maximum load security. Swivel hooks are attached to the YOke using only high grade fixtures.
Superb Quality
All major components are heat treated to ensure maximum efficiency, these are precisely machined to ensure long term smooth operation in the toughest of applications. High gear ration keep physical efforts to a minimum. Finished in a high quality powder coating to ensure superb corrosion protection.
The Tiger Chain block can also be directly mounted to a beam trolley to ensure lowest headroom.
Datasheets
| Product Code | Capacity (Tonne) | Effort (Kg) | Load Chain | Load Chain | Height of Lift (standard) (m) | Mass @ STD HOL (Kg) | ||||||||
| A | B | C | D | E | F | F1 | G | Diameter (mm) | No. of Falls | |||||
| CB-0050 | 0.5 | 21 | 92 | 66 | 52 | 78 | 24 | 305 | 6.3 | 1 | 3 | 10.8 | ||
| CB-0100 | 1.0 | 25 | 93 | 66 | 63 | 87 | 28 | 340 | 6.3 | 1 | 3 | 11.8 | ||
| CB-0150 | 1.5 | 32 | 98 | 73 | 78 | 102 | 34 | 385 | 7.1 | 1 | 3 | 16.2 | ||
| CB-0200 | 2.0 | 34 | 101 | 79 | 87 | 113 | 35 | 420 | 8.0 | 1 | 3 | 20.0 | ||
| CB-020L | 2.0 | 42 | 98 | 73 | 78 | 102 | 35 | 399 | 7.1 | 1 | 3 | 16.7 | ||
| CB-0300 | 3.0 | 38 | 109 | 84 | 98 | 157 | 36 | 550 | 10.0 | 1 | 3 | 30.6 | ||
| CB-030T | 3.0 | 34 | 99 | 73 | 60 | 148 | 36 | 465 | 7.1 | 2 | 3 | 23.3 | ||
| CB-0500 | 5.0 | 37 | 101 | 79 | 122 | 209 | 49 | 575 | 8.0 | 3 | 3 | 37.8 | ||
| CB-0800 | 8.0 | 37 | 101 | 79 | 140 | 238 | 51 | 745 | 8.0 | 4 | 3 | 64.0 | ||
| CB-1000 | 10.0 | 40 | 109 | 84 | 153 | 263 | 54 | 660 | 10.0 | 3 | 3 | 64.0 | ||
| CB-1500 | 15.0 | 41 | 110 | 84 | 225 | 378 | 59 | 840 | 10.0 | 5 | 3 | 128.5 | ||
| CB-2000 | 20.0 | 43 | 161 | 90 | 148 | 360 | 81 | 1050 | 10.0 | 6 | 3 | 178.7 | ||
| CB-200T | 20.0 | 43 | 161 | 161 | 383 | 383 | 81 | 1050 | 10.0 | 6 | 3 | 210.4 | ||
| CB-3000 | 30.0 | 42 | 220 | 220 | 388 | 388 | 91 | 1200 | 10.0 | 10 | 3 | 306.9 |
