Beam Travelling Trolleys
Explore our range of beam travelling trolleys, designed for smooth and effective transportation along beams. Suitable for both industrial and commercial lifting applications, our selection of beam trollies offer true reliability and durability - all at competitive prices, from the brands you know and love.
WHAT IS A BEAM TRAVEL TROLLEY?
A Beam Trolley – or simply a trolley - is a mechanical device that has been specifically designed to move along an overhead beam or rail.
This type of equipment is most commonly used in industrial environments such as warehouses, factories, garages and workshops – pretty much anywhere where heavy loads need moving in a horizontal manner.
Commonly used in conjunction with a chain hoist (manual or electric), Beam trolleys are known for their versatility, and often remove the need for a complex conveyor system, proving to be a far more cost-effective solution, with less maintenance and higher productivity output.
FEATURES OF BEAM TROLLEYS
ATTACHMENT TO A BEAM
The trolley is designed to securely attach to an overhead beam or rail. This beam is typically mounted at a high level, and the trolley can traverse across its length.
WORKING LOAD LIMIT (WLL)
Beam travel trolleys are constructed to support specific load capacity, ranging from light to heavy loads. This capacity is determined by the design and materials of the trolley. Working load capacities are clearly stated on the product listings on our website.
WHEELS/ROLLERS
The bottom of the trolley is equipped with wheels or rollers that support traversing of the beam, allowing the trolley to carry to load.
ADJUSTABLE WIDTH
Some beam travel trolleys have an adjustable width to accommodate different sizes of beams/rails. This adjustability makes them adaptable to a wide range of installations.
ATTACHMENT POINTS
Beam trolleys typically have attachment points or mechanisms for connecting to loads. This can include hooks, eyelets, or other fixtures that provide a secure connection. We have a range of this across our website.
WHAT ARE THE TYPES OF BEAM TROLLEY?
Beam Travelling Trollies come in a wide range of types and configurations, each designed to meet specific requirements for different applications. Choosing a particular type of travel trolley depends on multiple factors such as safe working load capacity, beam type, and method of movement. Here we outline the most common types of beam travel trolleys used in industrial settings.

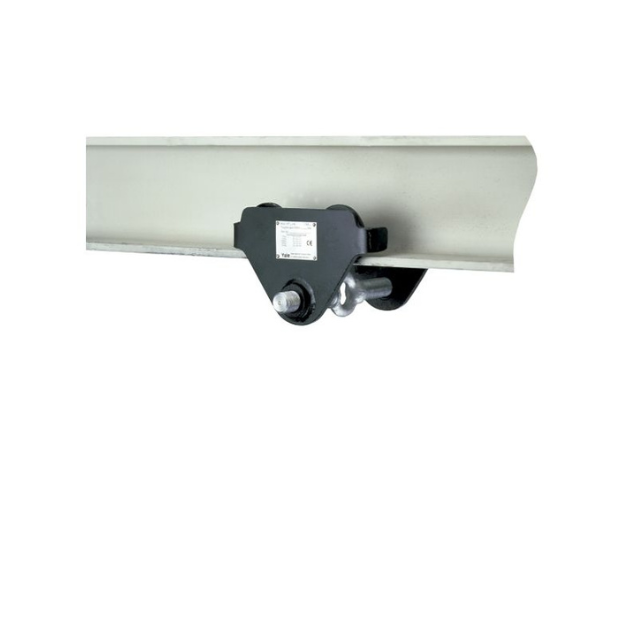

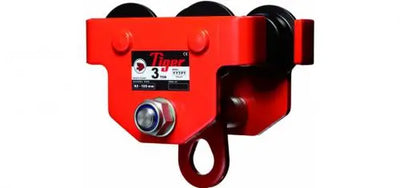

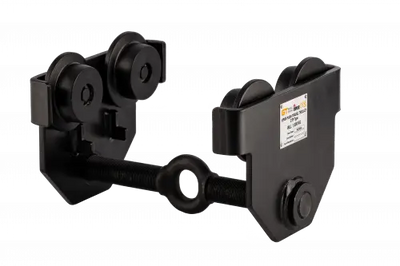

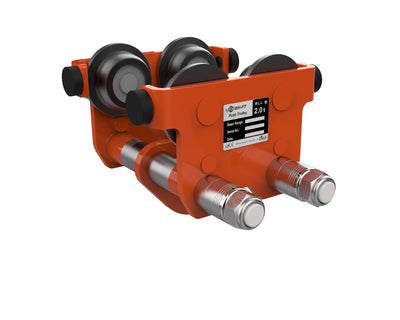

PUSH
This type of trolley is manually operated, pushed, and pulled along the beam by the user. They are most suited to lighter loads.

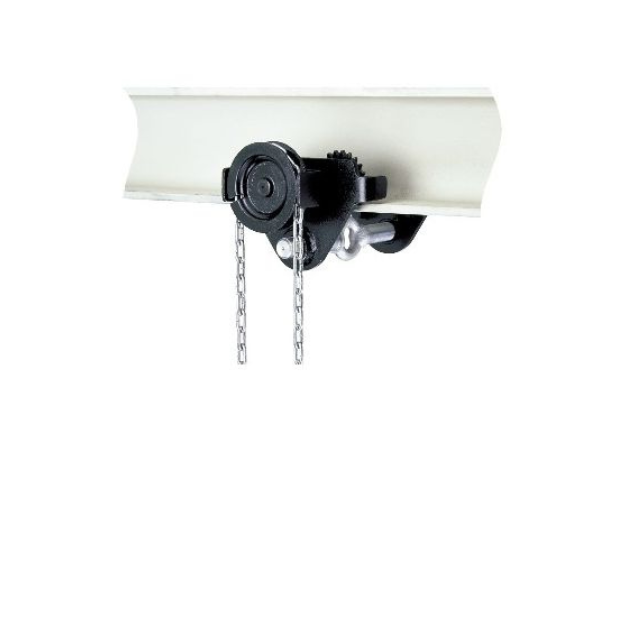

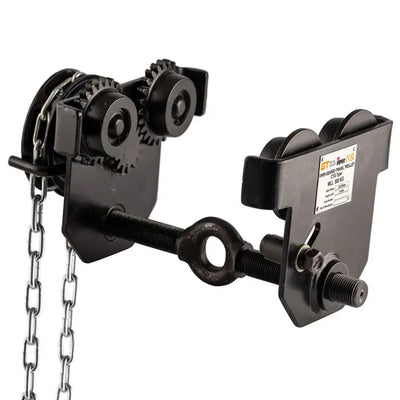

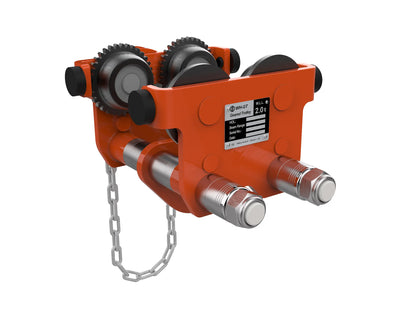

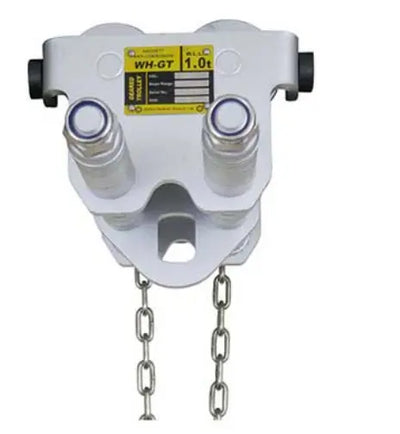

GEARED
Geared trolleys are built with a gearing mechanism that allows for easier movement of heavier loads. The operator turns a handle/crank to move the trolley along the beam, reducing manual effort compared the push trolleys.

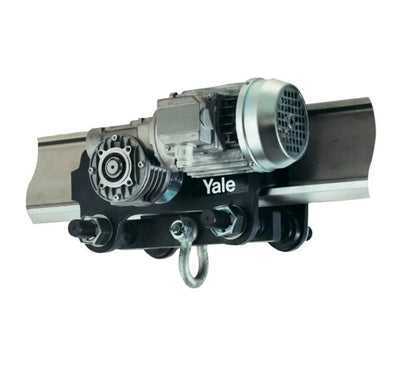

ELECTRIC
Electric travel trolleys are equipped with an electric motor, allowing for powered movement along your beam. They are more suited to shifting heavy loads and provide a more ergonomic user-friendly solution.
PNEUMATIC
Powered utilising compressed air, air-powered trolleys are most utilised in areas where electrical power is not practical or safe.
MOTORISED
Similar to electric trolleys, Motorised trolleys used an electric motor for powered movement. This type of trolley is better served for applications that require precise positioning or frequent load movement.

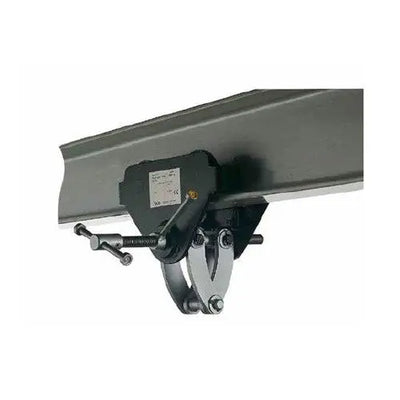

BEAM CLAMP
Beam clamp trolleys are designed to attach directly to the flange of the beam, providing a secure and stable connection for various beam types.
I-BEAM
Specifically designed for I-Beam profiles, these trolleys provide a secure fit on the horizontal flange of an I-Beam.
Beam Trolley FAQs
No. Beam trolleys are designed for use on specific beam types, typically I-beams or H-beams. The trolley must be compatible with the beam's width and flange thickness. Always consult the manufacturer’s specifications to ensure correct installation and safe operation.
Beam trolleys must be visually inspected before every use and subjected to a thorough examination by a competent person at least every 12 months. For trolleys used in high-risk applications or for lifting personnel, this should be done every 6 months, as outlined in LOLER.
If any defects such as cracks, bent components, worn wheels, or corrosion are found, the trolley must be immediately removed from service. It should be inspected by a qualified technician, and repairs should only be carried out following manufacturer guidance or by authorised professionals.
Key risks include overloading, incorrect installation, and improper use. These can result in trolley derailment, load instability, or structural failure, posing serious danger to personnel and equipment. Always adhere to rated capacities and use the trolley only as intended.
Store beam trolleys in a dry, clean environment, away from corrosive elements or extreme temperatures. Perform routine maintenance, including cleaning, lubrication (if applicable), and checking for wear. Proper care extends service life and helps maintain regulatory compliance.
