We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.
Delivery Prices & Transit Times
Delivery costs can be found at checkout.
EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00
Scottish Delivery: 1-2 Day Courier (after dispatch)
UK Before 10:30AM: (please call first to check availability)
UK Express Saturday Delivery: (please call first to check availability)
Click & Collect: Free!
Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)
Western Europe: (Netherlands, France, Belgium, Spain, Portugal)
Eastern Europe: Find out in checkout
Rest of the world: Find out in checkout
DELIVERY CUT-OFF
- For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
- All orders after 2pm will dispatch the following working day.
- For urgent shipments and 'last minute' requirements, please call our Sales Team - it's always worth asking if we can still get it out the door today!
Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.
We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.
Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430
Our alloy products are manufactured in conformity with common international technical standards and meet the essential safety requirements of the Machinery Directive 2006/42/EC
Certificate of conformity included in purchase

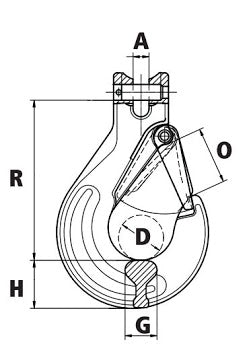

| Product Code | Model No. | Chain Dia | A | D | H | R | O | G |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | ||
| G80CSH8 | K1501 | 7/8 | 9.5 | 37 | 32.5 | 85.5 | 29 | 17 |
| G80CSH10 | K1502 | 10 | 13 | 46 | 35 | 104 | 39 | 23 |
| G80CSH13 | K1503 | 13 | 16.5 | 56 | 42.5 | 128 | 47 | 26 |
| G80CSH16 | K1504 | 16 | 21.5 | 60 | 54 | 150 | 55 | 34 |
| G80CSH20 | K1505 | 20 | 24 | 79 | 58 | 180 | 61 | 42 |
| G80CSH22 | K1506 | 22 | 27 | 101 | 62 | 213 | 72 | 44 |
Technical Data
| Chain Dia | Working Load Limit | Proof Load | Minimum Breaking Load | Weight |
|---|---|---|---|---|
| mm | t | t | t | kgs |
| 7/8 | 2.00 | 4.00 | 8.00 | 0.4 |
| 10 | 3.15 | 6.30 | 12.60 | 0.9 |
| 13 | 5.30 | 10.60 | 21.20 | 1.7 |
| 16 | 8.00 | 16.00 | 32.00 | 3.2 |
| 20 | 12.5 | 25.00 | 50.00 | 5.8 |
| 22 | 15.00 | 30.00 | 60.00 | 8.5 |
