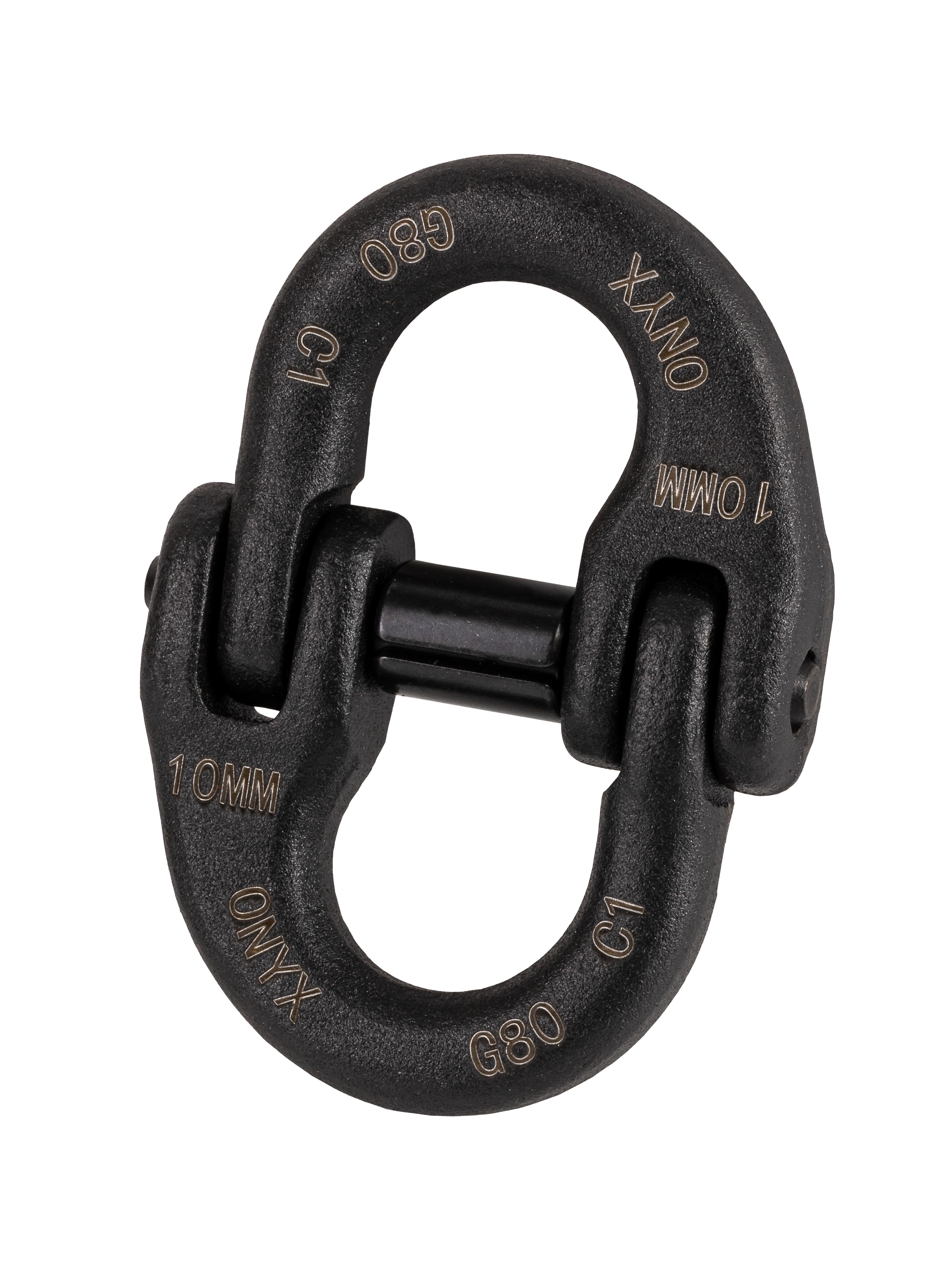

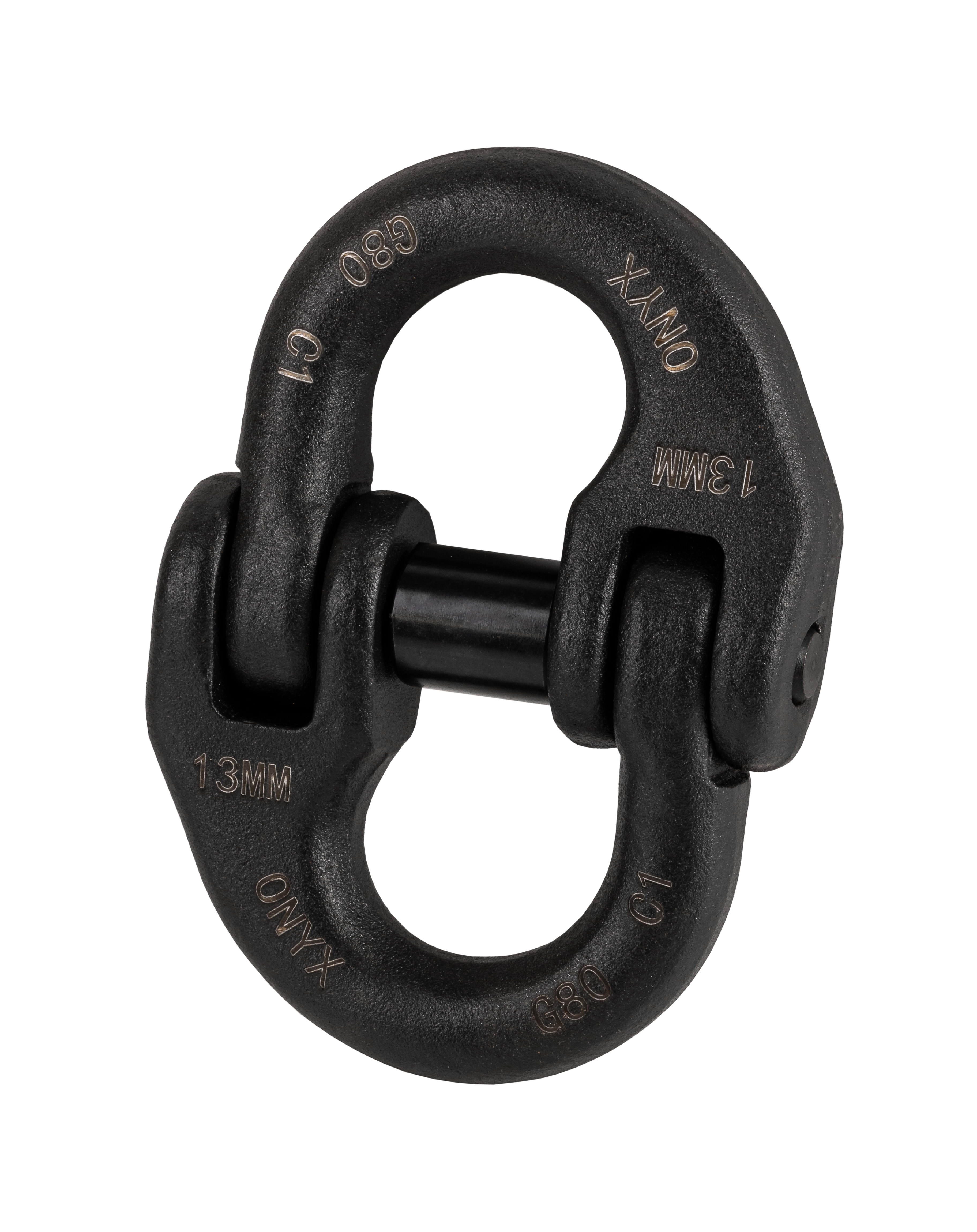

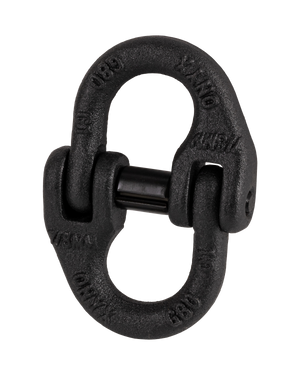

Designed for entertainment rigging, George Taylor’s new Onyx range continues to delivers on the brands already exceptional reputation.
Manufactured from quenched and tempered grade 80 alloy steel, this component connector is available for chain diameters from 7m to 13mm (WLL 2t – 5.3t), each with a minimum breaking load of 4x working load limit.
Capable of safely operating in environments with temperatures ranging from -20°C up to +200°C without losing integrity, each unit meets the WLL perf. requirement of BS EN 1677-1.
Finished with a sleek black matte paint, ideal for the entertainment industry, these component connectors are marked with the ONYX stamp, material grade, size, product ID, and traceability code, giving you peace of mind that you are purchasing a fully traceable item.
|
Product Code |
Chain Dia. (mm) |
A (mm) |
B (mm) |
C (mm) |
H (mm) |
K (mm) |
L (mm) |
M (mm) |
N (mm) |
Ø (mm) |
| OXCC8 | 7/8 | 20.5 | 9 | 24 | 8.8 | 58 | 77 | 55 | 14.8 | 6.3 |
| OXCC10 | 10 | 26 | 12 | 28 | 11.5 | 69 | 92 | 69 | 17.8 | 8.1 |
| OXCC13 | 13 | 30 | 15 | 35 | 15 | 85 | 115 | 86.6 | 25 | 10.3 |
Technical Data
| Product Code |
Chain Dia. (mm) |
W.L.L (t) |
M.P.L (t) |
M.B.L (t) |
Weight (kgs) |
| OXCC8 | 7/8 | 2 | 4 | 8 | 0.15 |
| OXCC10 | 10 | 3.15 | 6.3 | 12.6 | 0.32 |
| OXCC13 | 13 | 5.3 | 10.6 | 21.2 | 0.69 |
