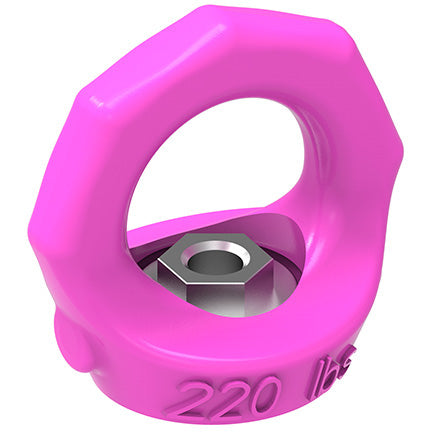

The RUD VRM Starpoint eye nut with the metric thread has a safety rating of 4:1 and comes fully tested and approved by DGUV. The starpoint pivots a full 360˚ for an easy adjustment into the load direction. This starpoint offers quick and easy installation with just one bolt connection. In true RUD fashion all the eye nuts are finished in a gloss pink.
Datasheets

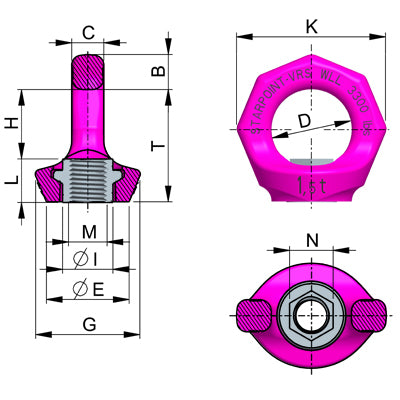

| Model | Product Code | Weight (kg) | Nominal WLL (mm) | T (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | H (mm) | I (mm) | K (mm) | L (mm) | M (mm) | N (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRM-M6 | 7900786 | 0.06 | 100 | 28 | 9 | 7 | 20 | 23 | 28 | 17 | 13 | 37 | 11 | M6 | 9 |
| VRM-M8 | 7992989 | 0.11 | 300 | 35 | 11 | 9 | 25 | 25 | 30 | 21 | 16 | 47 | 17 | M8 | 12 |
| VRM-M10 | 7990311 | 0.11 | 400 | 35 | 11 | 9 | 25 | 25 | 30 | 21 | 16 | 47 | 14 | M10 | 12 |
| VRM-M12 | 7990312 | 0.18 | 750 | 42 | 13 | 10 | 30 | 30 | 34 | 25 | 20 | 56 | 17 | M12 | 14 |
| VRM-M16 | 7990314 | 0.32 | 1500 | 49 | 15 | 13 | 35 | 36 | 40 | 31 | 22 | 65 | 21 | M16 | 19 |
| VRM-M20 | 7990315 | 0.48 | 2300 | 58 | 17 | 16 | 40 | 41 | 50 | 35 | 29 | 76 | 23 | M20 | 24 |
| VRM-M24 | 7990316 | 0.83 | 3200 | 70 | 20 | 19 | 49 | 51 | 60 | 41 | 35 | 92 | 29 | M24 | 30 |
| VRM-M30 | 7993008 | 1.32 | 4500 | 87 | 26 | 24 | 60 | 66 | 75 | 51 | 44 | 114 | 36 | M30 | 36 |
