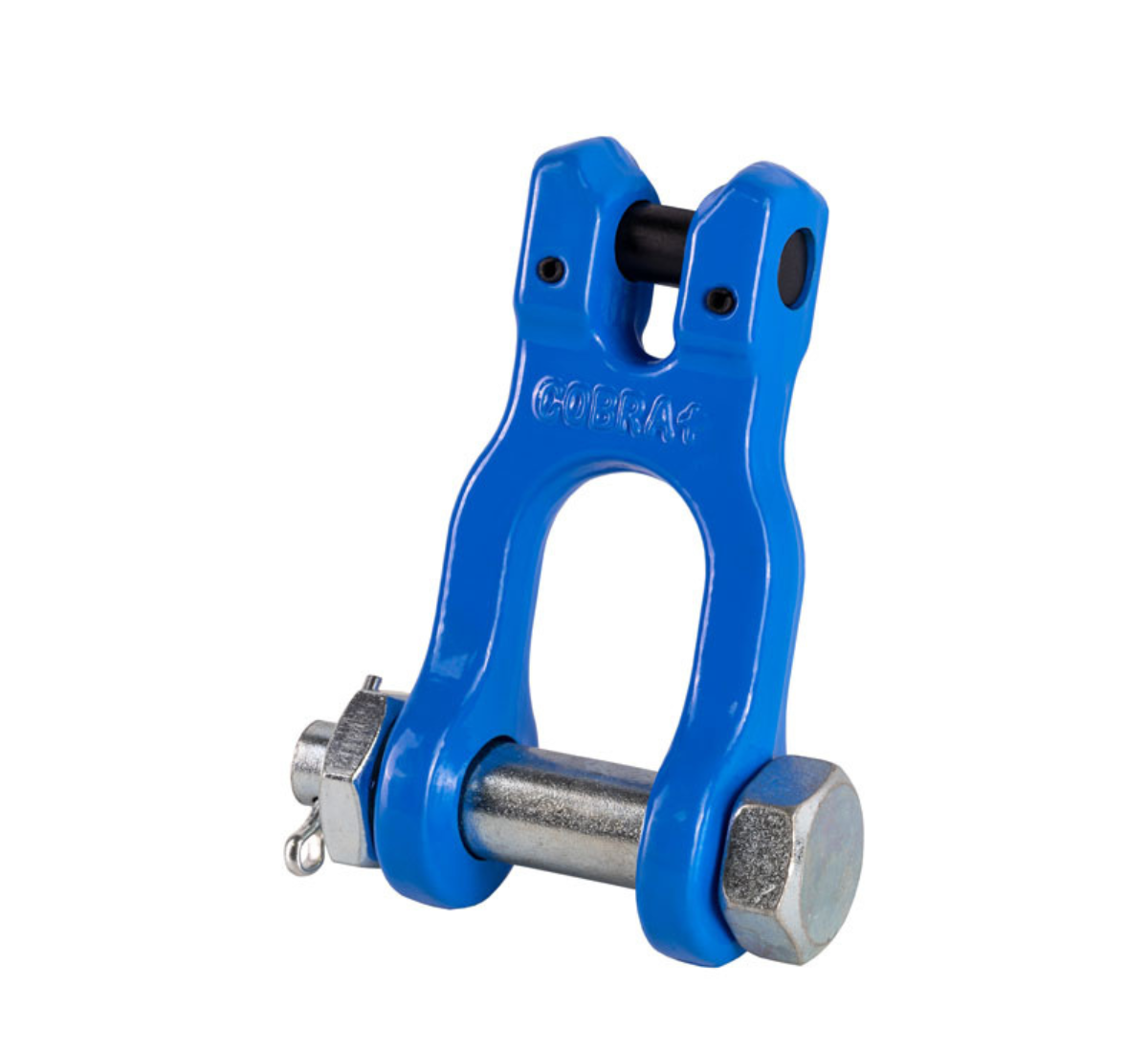

Designed to deliver performance and reliability, this Clevis Jaw Shackle from George Taylor's Cobra Plus range is available for chain diameters from 8mm (2.5t) to 16mm (10t).
Meeting the working load limit requirements of BS EN 1677-1 +25% of loads, these jaw shackles have a minimum breaking load of 4 times the stated WLL, and can safely operate in temperatures from -20°C to +200°C.
Manufactured from sturdy grade 10 alloy steel (quenched and tempered), each unit is marked with Cobra+, material grade, size, product ID mark and traceability code.

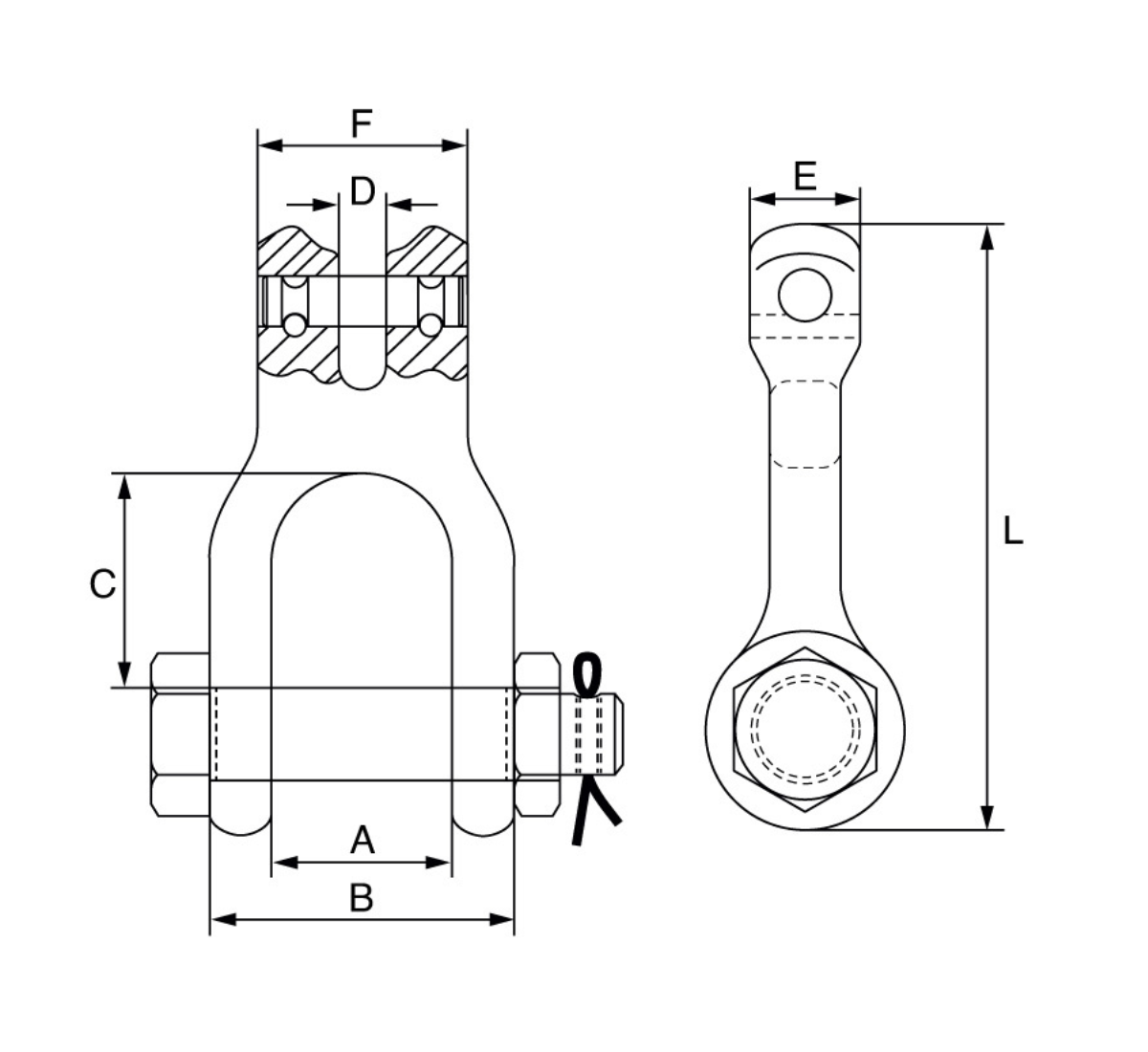

DIMENSIONS
|
SKU |
Chain Dia. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
L (mm) |
|
G100CJS8 |
8 |
31 |
51 |
36.3 |
9 |
20 |
36 |
103.5 |
|
G100CJS10 |
10 |
34 |
62 |
48 |
12.5 |
25 |
46.5 |
130.7 |
|
G100CJS13 |
13 |
49 |
83 |
64 |
15 |
31 |
59 |
160 |
|
G100CJS16 |
16 |
58 |
95 |
69.5 |
19 |
40 |
70 |
190.5 |
TECHNICAL DATA
|
Chain Dia. (mm) |
W.L.L (t) |
M.P.F (t) |
M.B.F (t) |
Weight (kgs) |
|
8 |
2.5 |
6.25 |
10 |
0.48 |
|
10 |
4 |
10 |
16 |
0.89 |
|
13 |
6.7 |
16.75 |
26.8 |
1.51 |
|
16 |
10 |
25 |
40 |
2.62 |
