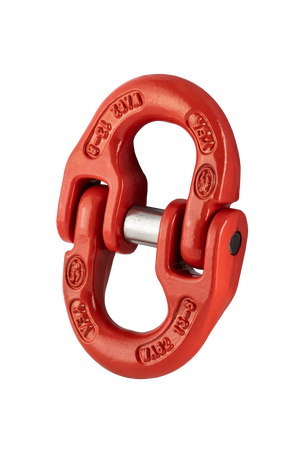

Designed for the effortless attachment of hook and master links to other Grade 8 chains and fittings, this component connector from George Taylor's Kito Weissenfels range is manufactured from durable alloy steel, quenched and tempered.
Conforming to BS EN 1677-1, they boast an impressive temperature range of -40ºC to +400ºC - reductions in WLL apply - while the red paint finish provides a clean professional look, as well as been easily identifiable.

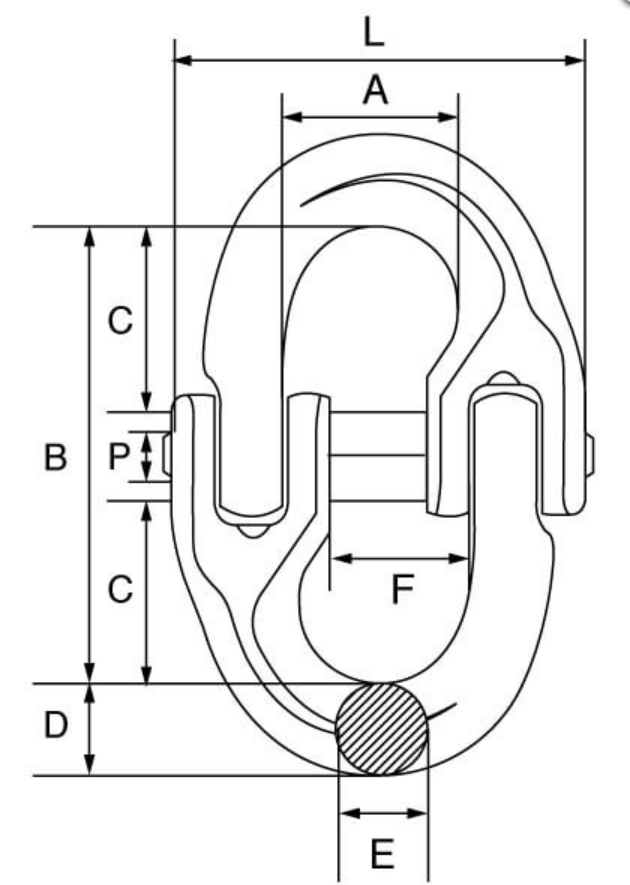

| Product Code | Chain Dia | Part No. | A | B | C | D | E | F | P x L |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| G8CC6 | 6 | WA58 | 18 | 45 | 18 | 7.8 | 7.6 | 14 | 4.8 x 38.5 |
| G8CC7 | 7 | WA60 | 19 | 51 | 20 | 10 | 9 | 16 | 6 x 46.5 |
| G8CC8 | 8 | WA59 | 23 | 62 | 25 | 11.5 | 10 | 18 | 6.3 x 53 |
| G8CC10 | 10 | WA61 | 27 | 72 | 30 | 12.6 | 12.6 | 23 | 8 x 63.5 |
| G8CC13 | 13 | WA62 | 34 | 88 | 36 | 19 | 16.7 | 27 | 10 x 79 |
| G8CC16 | 16 | WA63 | 39 | 103 | 40 | 21 | 21 | 33 | 14 x 106 |
| G8CC20 | 20 | WA64 | 47 | 116 | 48 | 23 | 23 | 44 | 14 x 108 |
| G8CC22 | 22 | WA65 | 55 | 133 | 51 | 26.5 | 26.5 | 49 | 16 x 134 |
| G8CC26 | 26 | WA66 | 66 | 148 | 60 | 31.5 | 31.5 | 60 | 18 x 159 |
| G8CC32 | 32 | WA67 | 79 | 183 | 69 | 37 | 37 | 67 | 25 x 195 |
Technical Data
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 6 | 1.12 | 28.3 | 45.2 | 0.07 |
| 7 | 1.5 | 38.5 | 61.6 | 0.1 |
| 8 | 2 | 50.3 | 80.4 | 0.25 |
| 10 | 3.15 | 78.5 | 126 | 0.35 |
| 13 | 5.3 | 133 | 212 | 0.68 |
| 16 | 8 | 201 | 322 | 1.1 |
| 20 | 12.5 | 314 | 503 | 1.7 |
| 22 | 15 | 380 | 608 | 2.2 |
| 26 | 21.2 | 531 | 849 | 4.2 |
| 32 | 31.5 | 804 | 1,290 | 7.19 |
