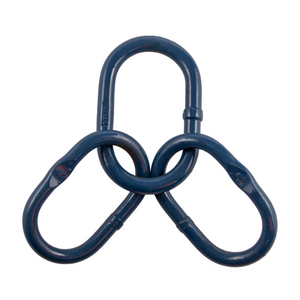

Manufactured in accordance to BS EN 1677-4, these Grade 8 Fram Quad Master Link assemblies are made from highly durable and robust Grade 8 alloy steel, that's been quenched and tempered.
Available in working load limits from 4.1 tonnes right through to 84.4 tonnes, they boast an impressive minimum breaking load of 5 times the stated working load limit (see specification tab for full details and dimensions,)

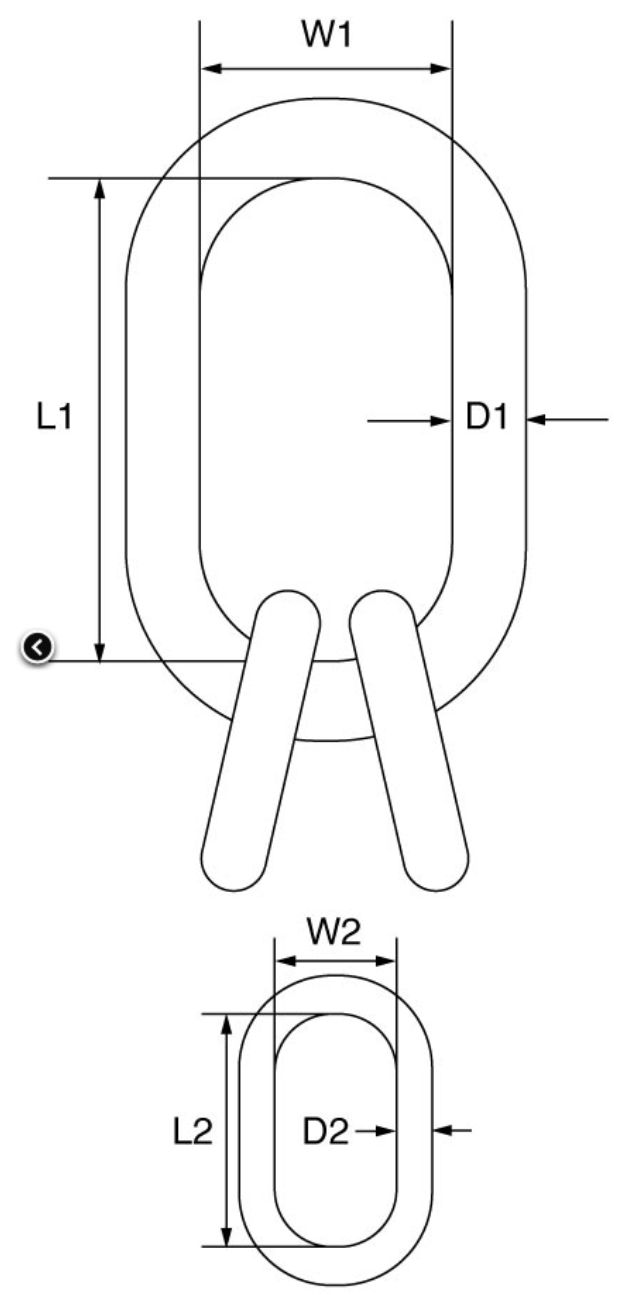

| Product Code | Part No | D1 | L1 | W1 | D2 | L2 | W2 | W.L.L. | Weight |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | t | kgs | ||
| FQAQ16B | Q16B | 16 | 120 | 70 | 13 | 95 | 51 | 4.1 | 1.2 |
| FQAQ20B | Q20B | 20 | 170 | 90 | 16 | 120 | 70 | 6.5 | 2.5 |
| FQAQ22B | Q22B | 22 | 170 | 90 | 20 | 150 | 80 | 8.2 | 2.8 |
| FQAQ22B8 | Q22B8 | 22 | 270 | 140 | 16 | 120 | 70 | 5.8 | 3.5 |
| FQAQ25B | Q25B | 25 | 190 | 100 | 20 | 150 | 80 | 10.7 | 4.9 |
| FQAQ28B | Q28B | 28 | 210 | 110 | 22 | 170 | 90 | 12.9 | 6.4 |
| FQAQ32B | Q32B | 32 | 270 | 140 | 25 | 190 | 100 | 17.1 | 10 |
| FQAQ38B | Q38B | 39 | 270 | 140 | 32 | 270 | 140 | 28.1 | 18.2 |
| FQAQ45B | Q45B | 45 | 320 | 170 | 38 | 270 | 140 | 38.3 | 27.7 |
| FQAQ50B | Q50B | 50 | 380 | 200 | 38 | 270 | 140 | 45 | 33.2 |
| FQAQ60B | Q60B | 60 | 430 | 220 | 50 | 380 | 200 | 65.3 | 54 |
| FQAQ70B | Q70B | 70 | 500 | 250 | 60 | 430 | 220 | 84.4 | 101.2 |
