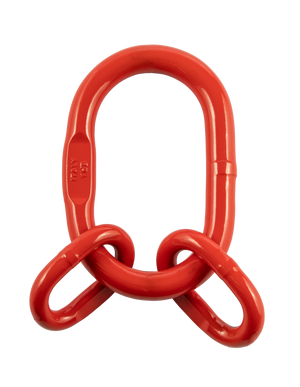

Specifically designed fro use with Grade 8 3 & 4 leg chain/wire/fibre rope slings, this quad master link assembly from Ktio Weissenfels showcases all the qualities you've come to love of the brand.
Manufactured from quenched and tempered alloy steel, they conform to BS EN 1677-4, while the signature red painted finish provides high visibility when in operation.
The 'T' range have large inside widths and lengths to allow for additional sling hardware and crane hooks, while they have an excellent operating temperature range of -40ºC up to +400ºC, making them highly suitable for even the harshest of environments.

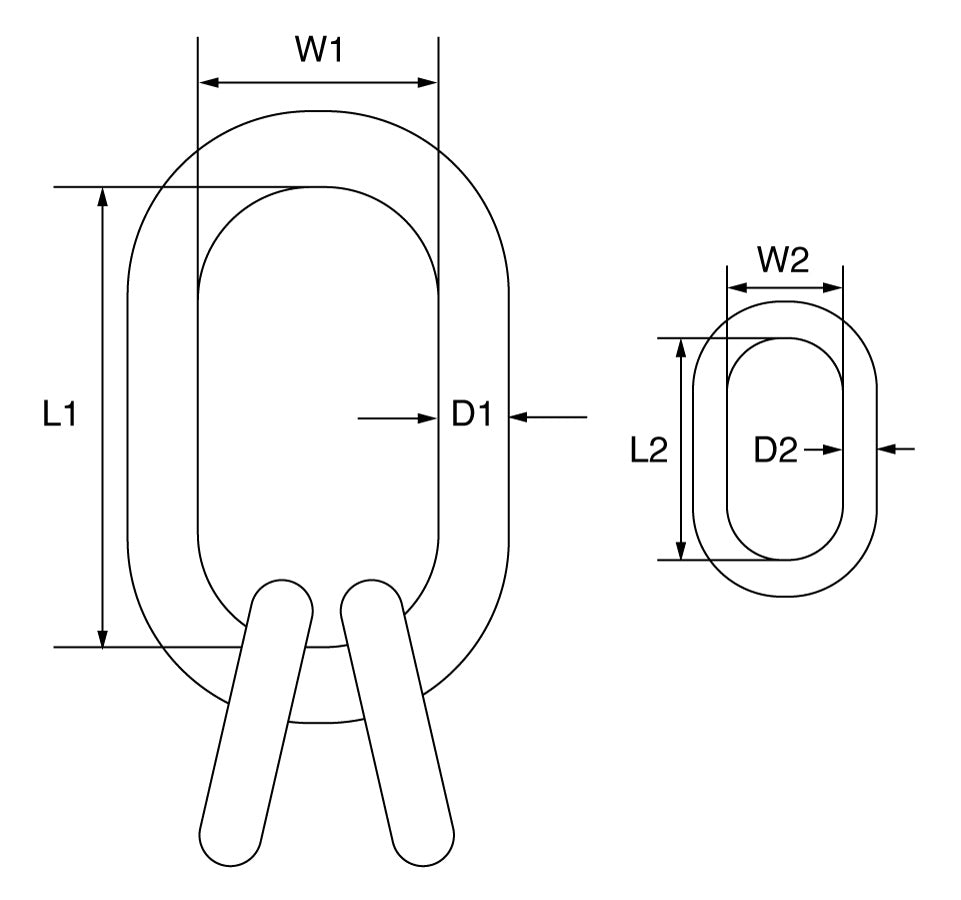

| Product Code | Part No. | D1 | L1 | W1 | D2 | L2 | W2 | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | t | kN | kN | kgs | ||
| G8QA7T | T7-8 | 20 | 160 | 95 | 15 | 120 | 70 | 4.15 | 102 | 163 | 2.21 |
| G8QA8T | T8-8 | 23 | 160 | 110 | 16 | 140 | 80 | 5.35 | 132 | 210 | 3.03 |
| G8QA10T | T10-8 | 27 | 190 | 110 | 20 | 160 | 95 | 9.4 | 231 | 369 | 5.07 |
| G8QA13T | T13-8 | 33 | 230 | 130 | 27 | 190 | 110 | 14.2 | 348 | 557 | 10.08 |
| G8QA16T | T16-8 | 38 | 275 | 150 | 33 | 230 | 130 | 22.3 | 547 | 875 | 17.06 |
| G8QA22T | T22-8 | 50 | 350 | 190 | 45 | 340 | 180 | 40.3 | 988 | 1,580 | 42.2 |
| G8QA7W | W7-8 | 19 | 135 | 75 | 13 | 60 | 38 | 3.15 | 77.2 | 124 | 1.35 |
| G8QA8W | W8-8 | 23 | 160 | 90 | 16 | 70 | 34 | 4.25 | 104 | 167 | 2.32 |
| G8QA10W | W10-8 | 27 | 180 | 100 | 18 | 85 | 40 | 6.7 | 164.3 | 262.8 | 3.58 |
| G8QA13W | W13-8 | 33 | 200 | 110 | 23 | 115 | 50 | 11.2 | 275 | 439 | 6.57 |
| G8QA16W | W16-8 | 36 | 260 | 140 | 27 | 140 | 65 | 17 | 417 | 667 | 10.3 |
| G8QA20W | W20-8 | 45 | 340 | 180 | 33 | 150 | 70 | 26.5 | 650 | 1,040 | 19.3 |
