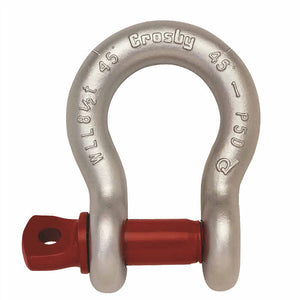

The G-209 screw pin anchor shackles meet the requirements of federal specification RR-C-271F Type IVA, Grade A, Class 2, Except for those provisions required of the contractor.
What makes Crosby Shackles so special?
Crosby shackles are far superior to any other shackle we sell. Forged at high temperature (including the markings) these shackles receive no surface damage from hand stamping and do not suffer from weaknesses found in shackles manufactured from steel bar. No expense is spared by Crosby in the design and manufacture of these vital rigging components.
- The capacities 1/3 up to 55 metric tonnes are grade 6
- Forged, Quenched and tempered with alloy pins
- Working load limit and grade 6 is permanently shown on every shackle
- The shackles are hot dip galvanised or self-coloured and are fatigue rated
- Shackles 25 Tonne and over are RFID-equipped (Radio Frequency Identification)
- The Shackles can be provided proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or any other certification. Proof testing and certification available when requested
- The Shackles are approved to be used in temperatures ranging from -40˚Cup to 204˚C
- 3.25t through to 25T G209 anchor shackles are type aproveapprovedV certification
- All other 209 and 210 shackles can meet charpy requirements of 42 Joule (31 ft-lbs) Avg. at -20C upon special request
- Meets and exceed all requirements of ASME B30.26
- Type approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7 and ABS guide for certification of cranes
- Look for the RED pin... The mark of genuine Crosby quality
Datasheets

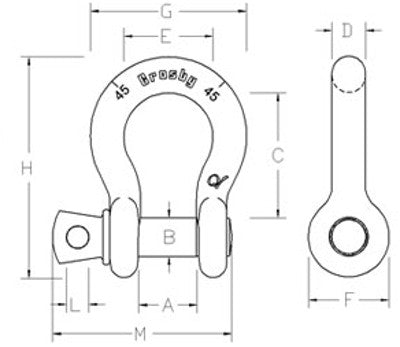

| Nominal Size (in.) | WLL (kg) | SKU | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | M (mm) | P (mm) | Tollerance +/- (C) | Tollerance +/- (A) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16 | 333 | 1018357 | 0.03 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 3.06 | 28.4 | 4.85 | 1.50 | 1.50 |
| 1/4 | 500 | 1018375 | 0.05 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 1.50 | 1.50 |
| 5/16 | 750 | 1018393 | 0.09 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 37.3 | 53 | 5.60 | 42.2 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1000 | 1018419 | 0.14 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 6.35 | 51.5 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1500 | 1018437 | 0.17 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74 | 7.85 | 60.5 | 11.2 | 3.30 | 1.50 |
| 1/2 | 2000 | 1018455 | 0.33 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 3.30 | 1.50 |
| 5/8 | 3250 | 1018473 | 0.62 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85 | 17.5 | 6.35 | 1.50 |
| 3/4 | 4750 | 1018491 | 1.07 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 12.7 | 101 | 20.6 | 6.35 | 1.50 |
| 7/8 | 6500 | 1018516 | 1.64 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 102 | 148 | 12.7 | 114 | 24.6 | 6.35 | 1.50 |
| 1 | 8500 | 1018534 | 2.28 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 6.35 | 1.50 |
| 1-1/8 | 9500 | 1018552 | 3.36 | 46 | 31.8 | 108 | 29.5 | 74 | 68.5 | 131 | 190 | 16 | 142 | 31.8 | 6.35 | 1.50 |
| 1-1/4 | 12,000 | 1018570 | 4.31 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 76 | 146 | 210 | 17.5 | 156 | 35.1 | 6.35 | 1.50 |
| 1-3/8 | 13,500 | 1018598 | 6.14 | 57 | 38.1 | 133 | 36.1 | 92 | 84 | 162 | 233 | 19.1 | 174 | 38.1 | 6.35 | 3.30 |
| 1-1/2 | 17,000 | 1018614 | 7.80 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92 | 175 | 254 | 20.6 | 187 | 41.1 | 6.35 | 3.30 |
| 1-3/4 | 25,000 | 1018632 | 12.6 | 73 | 51 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57 | 6.35 | 3.30 |
| 2 | 35,000 | 1018650 | 20.4 | 82.5 | 57 | 197 | 53 | 146 | 122 | 253 | 348 | 31 | 263 | 61 | 6.35 | 3.30 |
| 2-1/2 | 55,000 | 1018678 | 38.9 | 105 | 70 | 267 | 69 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 6.35 | 6.35 |
