In stock
SKU: PFA000033

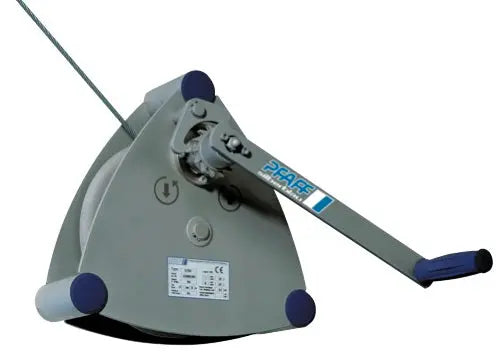

Pfaff Silberblau Alpha Wall Mounted Wire Rope Hand Winch

From: £417.02
  • Capacity: 300-1000kg.
  • Multi-positional.
  • Easy to mount.
  • Toothed Spur Wheel Back Gear.
  • Low Pressure Brake.
  • Rope output in any direction.
Final Configuration Price:
£417.02
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The Pfaff Silberblau Alpha Wall Mounted Wire Rope Hand Winch is multi-positional and easily mounted on a wall. Its low weight and compact design are an added advantage.

  • Available in Zink plated or galvanised options (call for details)
  • Toothed spur wheel back gear  giving high efficiency
  • Rope output possible in every direction
  • Folding Handle or Variable Crank Option- for use in confined spaces.
Model:   Alpha 300 Alpha 500 Alpha 750 Alpha 1000
Lifting Capacity- 1st Layer Kg 300 500 750 1000
Lifting Capacity- Upper Layer Kg 130 230 270 360
Wire Rope Diameter mm 5* 6* 7* 7*
Wire Rope Capacity- 1st Layer m 1.3 1 1 1
Wire Rope Capacity- Upper Layer m 28 20 26 26
Lift Per Crank Rotation mm 57 55 45 45
Required Crank Pressure daN 13 17 17 18
Weight Kg 10 10 16 16

*Recommended Wire Rope: DIN 3055 FE-znK 1770 sZ-spa.
*Pfaff Silberblau Alpha Winches are made to order. Lead Time can be confirmed by contacting us or we will update you after you place your order.
Please note: All hand winches are supplied without wire rope, for a wire rope quotation please contact our sales team today.

  • Capacity: 300-1000kg.
  • Multi-positional.
  • Easy to mount.
  • Toothed Spur Wheel Back Gear.
  • Low Pressure Brake.
  • Rope output in any direction.
