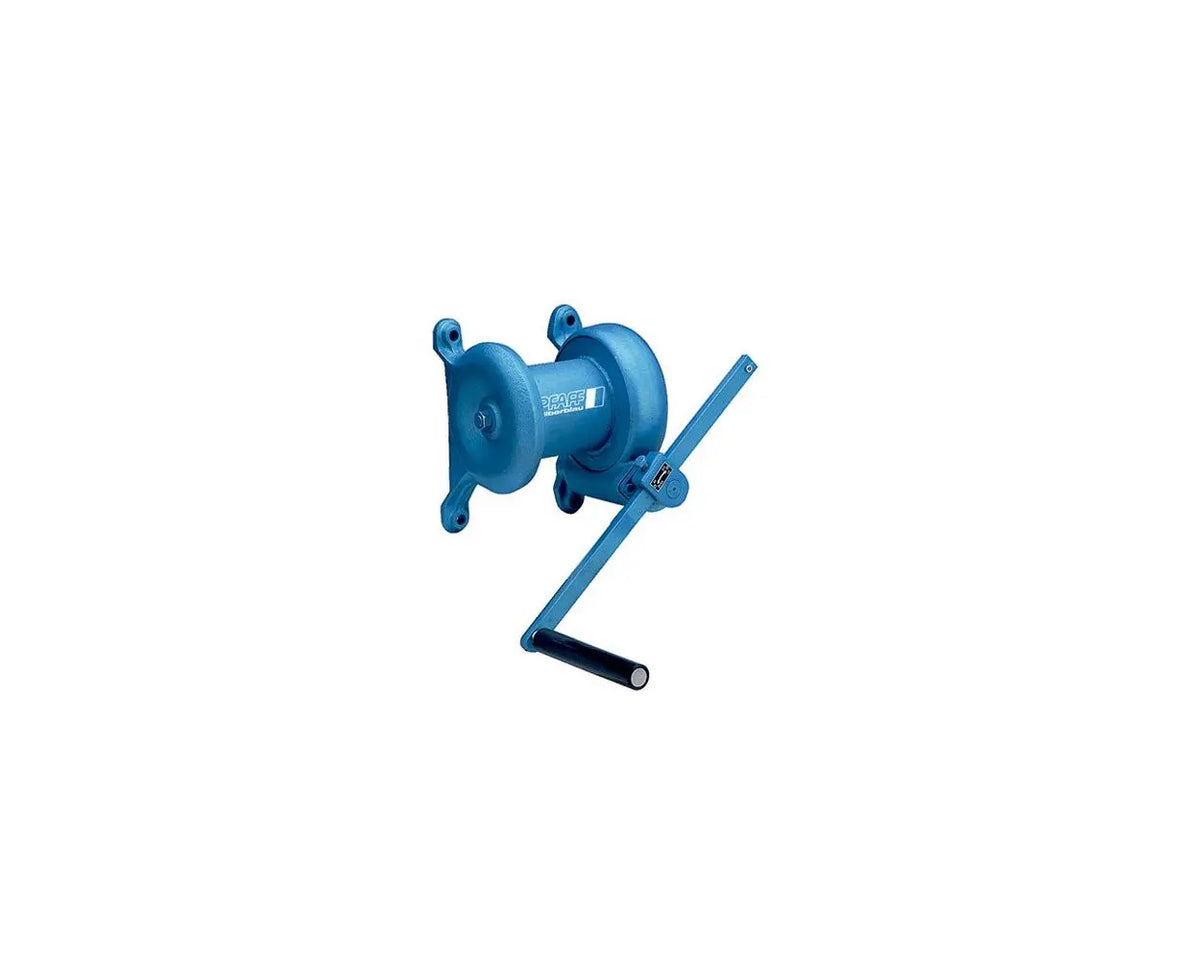

The Pfaff SW-W-SGG Wall Mounted Wire Rope Winch is manufactured from a robust, cast iron. Hand operated worm gear winches are built for long-lasting performance. These winches are ideal for use in sports halls, theatres and a vast array of industrial applications.
The cast iron construction and hardened worm shaft provide durability. The gears are enclosed in an oil bath (oil not included), this ensures you always have a smooth operation. Automatic friction brakes ensure the load operation and safety. The winches also feature an adjustable crank radius so that you can use in confined spaces and difficult to reach areas.
* Rope sold separately* * Please Note This Is The Replacement For The Pfaff Silberblau WB Wall Mounted Wire Rope Hand Winch*
| Model | SGG250kg | SGG500kg | SGG750kg |
|---|---|---|---|
| Article Number | 30242004 | 30243000 | 30244007 |
| Lifting Capacity 1st Layer (kg) | 250 | 500 | 750 |
| Lifting Capacity Upper Layer (kg) | 210 | 425 | 624 |
| Wire Rope Diameter (mm) | 5 | 6 | 8 |
| Wire Rope Capacity 1st Layer (m) | 4.8 | 7.9 | 9.2 |
| Wire Rope Capacity Upper Layer (m) | 11.3 | 29.1 | 49 |
| Lift Per Crank Rotation (mm) | 20 | 26 | 20 |
| Required Crank Pressure (kg) | 9.2 | 14.5 | 16 |
| Weight (kg) | 12.5 | 21 | 42 |

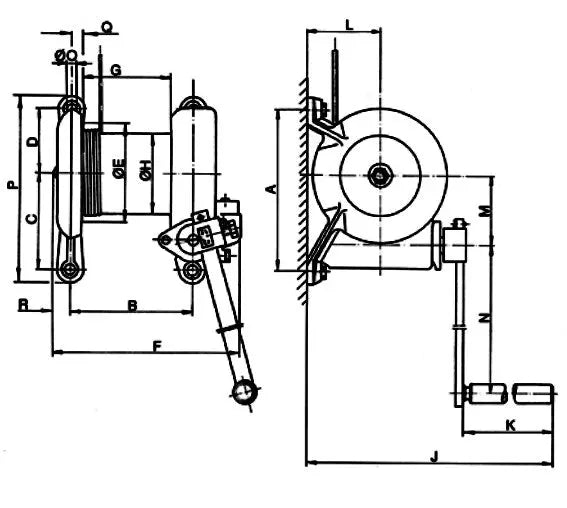

Dimensions
| Model | SGG250 | SGG500 | SGG750 |
|---|---|---|---|
| A (mm) | 205 | 250 | 330 |
| B (mm) | 137 | 190 | 243 |
| C (mm) | 120 | 150 | 205 |
| D (mm) | 85 | 100 | 125 |
| E (mm) | 135 | 182 | 240 |
| F (mm) | 219 | 282 | 350 |
| G (mm) | 94 | 138 | 182 |
| H (mm) | 96 | 125 | 150 |
| J (mm) | 310 | 476 | 576 |
| K (mm) | 108 | 238 | 238 |
| L (mm) | 96 | 112 | 160 |
| M (mm) | 79 | 101 | 146 |
| N (mm) | 295 | 430 | 440 |
| O (mm) | 12 | 14 | 20 |
| P (mm) | 237 | 290 | 390 |
| Q (mm) | 13 | 18 | 20 |
| R (mm) | 21 | 25 | 32 |
