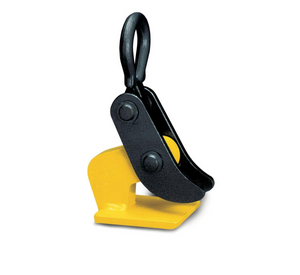

Industry standard horizontal plate clamps
The CH Horizontal plate clamps have been specifically designed to be used in pairs, for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.
A pair of clamps used with a two legged chain sling are suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for handling of larger plates, These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth for special applications. Call now for more information.
Workmanship and parts
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.
| Model | WLL Kgs |
Jaw Capacity mm |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
Weight Kgs |
|---|---|---|---|---|---|---|---|---|---|---|
| CH1 | 1,000 | 5-32 | 30 | 82 | 60 | 100 | 32 | 44 | 13 | 8 |
| CH2 | 2,000 | 5-32 | 30 | 82 | 60 | 100 | 50 | 73 | 18 | 11 |
| CH2L | 2,000 | 20-50 | 30 | 82 | 60 | 100 | 50 | 73 | 18 | 12 |
| CH4 | 4,000 | 5-50 | 40 | 112 | 80 | 100 | 64 | 92 | 25 | 17 |
| CH4L | 4,000 | 50-100 | 40 | 112 | 80 | 100 | 64 | 92 | 25 | 23 |
| CH6 | 6,000 | 5-75 | 55 | 172 | 100 | 130 | 90 | 130 | 35 | 46 |
| CH6L | 6,000 | 50-125 | 55 | 172 | 100 | 130 | 90 | 130 | 35 | 56 |
| CH8 | 8,000 | 5-75 | 55 | 172 | 105 | 130 | 90 | 130 | 35 | 60 |
| CH8L | 8,000 | 50-125 | 55 | 172 | 105 | 130 | 90 | 130 | 35 | 60 |
| CH10 | 10,000 | 5-100 | 65 | 215 | 120 | 150 | 114 | 114 | 35 | 95 |
| CH10L | 10,000 | 50-150 | 65 | 215 | 120 | 150 | 114 | 114 | 35 | 108 |
| CH15 | 15,000 | 5-100 | 71 | 230 | 120 | 150 | 114 | 114 | 35 | 110 |
| CH15L | 15,000 | 50-150 | 71 | 230 | 120 | 150 | 114 | 114 | 35 | 123 |
| CH20 | 20,000 | 5-100 | 70 | 220 | 118 | 220 | 80 | 120 | 38 | 165 |
| CH20L | 20,000 | 50-150 | 70 | 220 | 118 | 220 | 80 | 120 | 38 | 172 |
| HH8 | 8,000 | 5-50 | 55 | 168 | 105 | 130 | 67 | 67 | 24 | 21 |
| HH8L | 8,000 | 50-100 | 55 | 168 | 105 | 130 | 67 | 67 | 24 | 28 |
CH1 is fitted with single jaw.

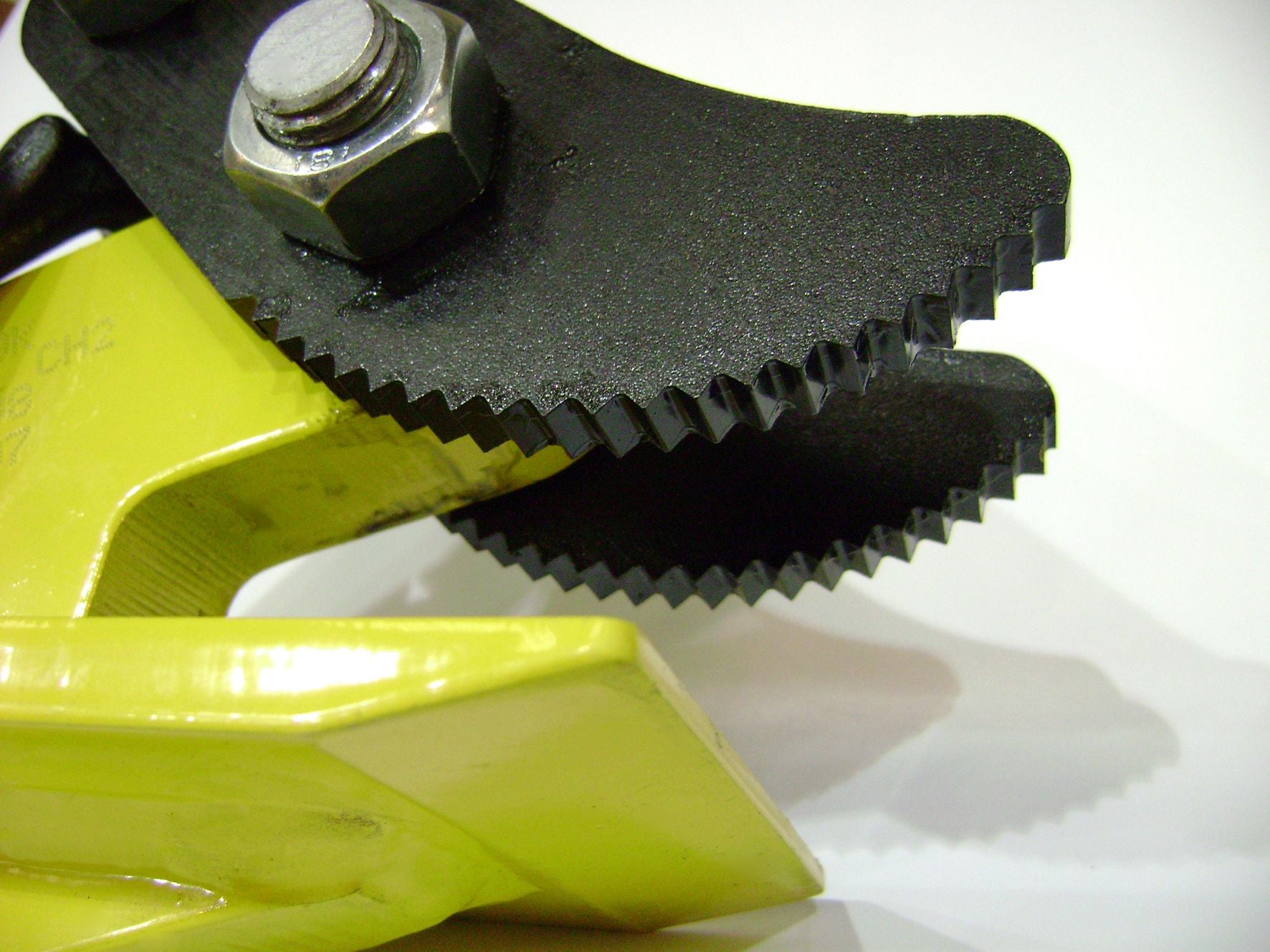

Serrated jaw: £Extra
