In stock
SKU: GRA003852

Grade 10 Eye Foundry Hook

From: £24.29
  • Suitable for use with G10 chain/wire rope slings
  • Available for chain diameters: 7/8mm, 10mm, 13mm & 16mm
  • Manufactured from Grade 10 alloy steel, quenched & tempered
Final Configuration Price:
£24.29
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

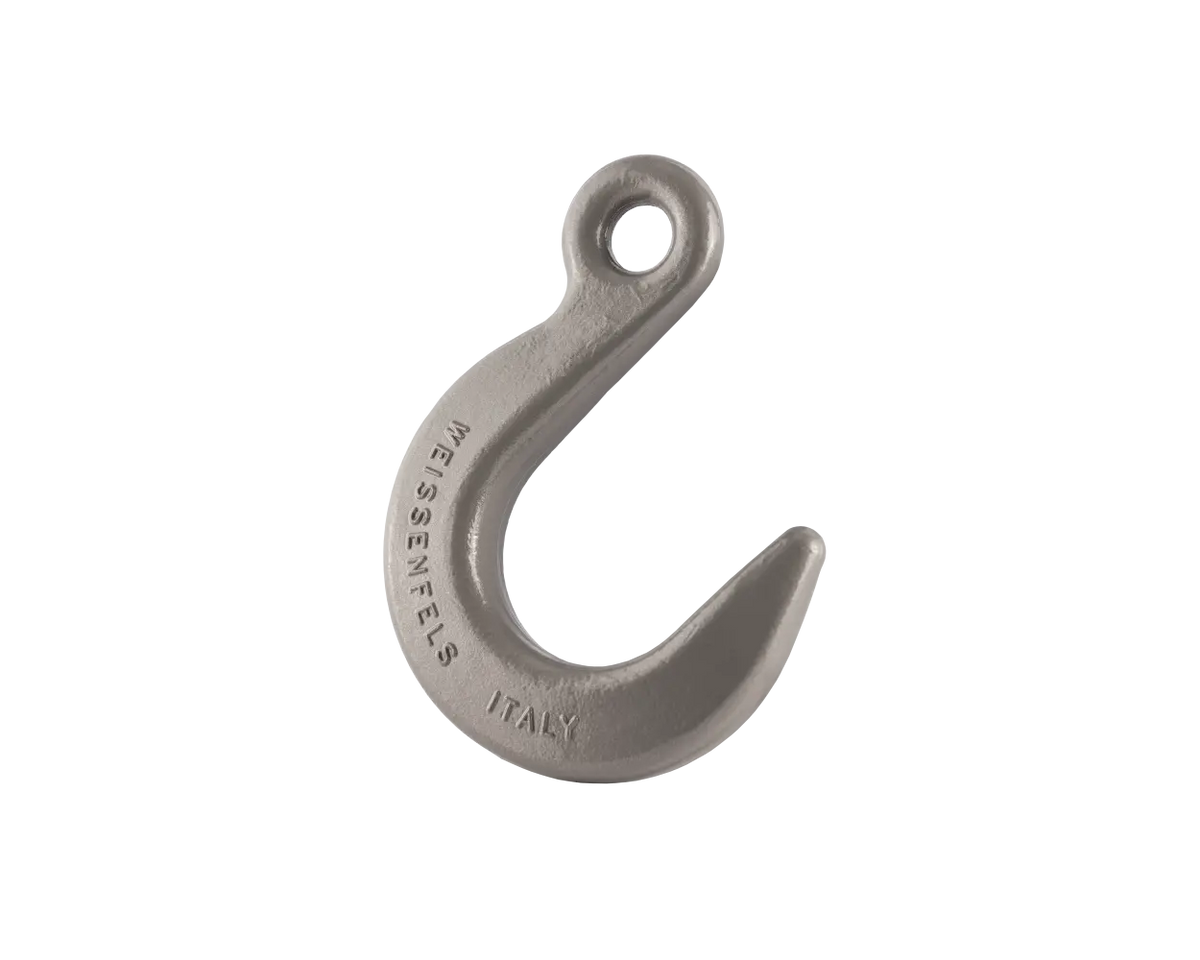

Kito Weissenfels Grade 10 Eye Foundry Hook

Suitable for use with G10 chain/wire rope slings

Available for chain diameters: 7/8mm, 10mm, 13mm & 16mm

Manufactured from Grade 10 alloy steel, quenched & tempered

Meets performance requirements of BS EN 1677-1 +25% of laods

  • Suitable for use with G10 chain/wire rope slings
  • Available for chain diameters: 7/8mm, 10mm, 13mm & 16mm
  • Manufactured from Grade 10 alloy steel, quenched & tempered

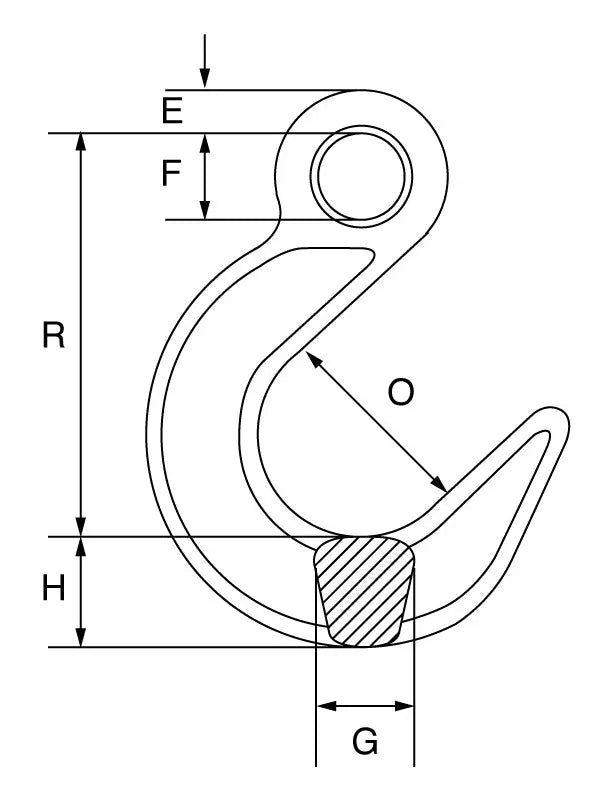

Product Code Part No. Chain Dia E F G H O R
    mm mm mm mm mm mm mm
G10EFH8 FHE7-8 7/8 13.5 18 26 31 63 122.5
G10EFH10 FHE10 10 16 22 32 36 77 149
G10EFH13 FHE13 13 19 27 39 43 88 173.5
G10EFH16 FHE16 16 24 32 45 50 100 205
G10EFH20 FHE19-20 19/20 27 38 51 61 115 237



Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
7/8 2.5 62.8 100 1.13
10 4 98.2 157 2
13 6.7 166 265 3.3
16 10 251 402 5.3
19/20 16 393 628 7.7
