Available in safe working load limits from 5.05tonne to 41.55 tonnes, these Grade 10 Quad Master Link Assemblies (DE Series) from Kito Weissenfels provide optimum performance and longevity.
Expertly crafted from Grade 10 alloy steel, quenched & tempered, they meet the performance requirements of BS EN 1677-4 +25% of loads.
Suitable for use with Grade 10 chains and wire/fibre rope slings, they come with oversized sub-links and are stamped with the following for complete traceability: material grade, manufacturers ID, size, product ID mark and traceability code.

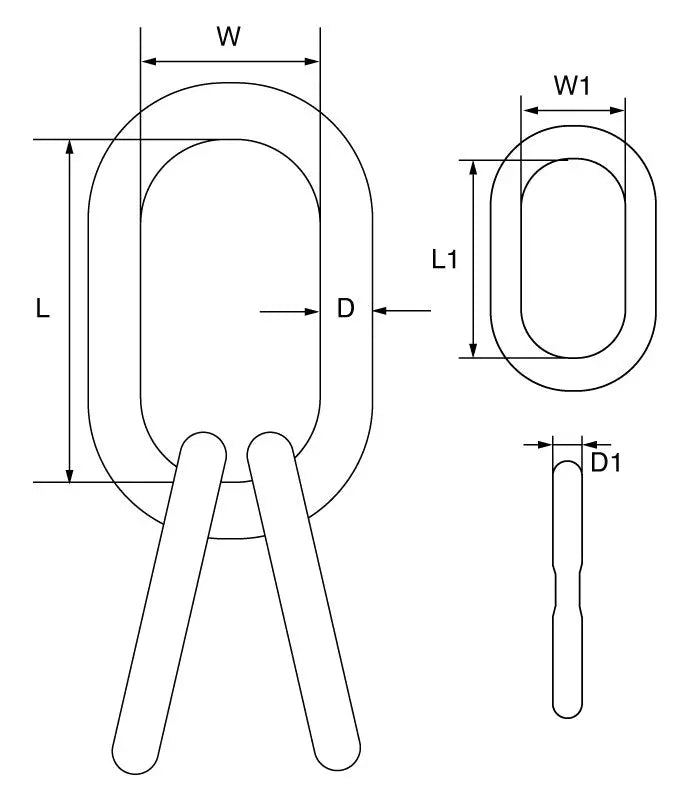

| Product Code | Part No. | Chain Dia 3-4 legs | W.L.L. | M.P.F. | M.B.F. | D | L | W | D1 | L1 | W1 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | t | kN | kN | mm | mm | mm | mm | mm | mm | kgs | ||
| G10QADE7 | D18E14 | 7 | 5.05 | 123.8 | 198.1 | 19 | 135 | 75 | 15 | 120 | 70 | 1.94 |
| G10QADE8 | D22E16 | 8 | 6.95 | 170.4 | 272.6 | 23 | 160 | 90 | 17 | 140 | 80 | 3.12 |
| G10QADE10 | D26E20 | 10 | 10.4 | 255 | 408 | 27 | 180 | 100 | 20 | 160 | 95 | 4.92 |
| G10QADE13 | D32E26 | 13 | 18 | 441 | 706 | 33 | 200 | 110 | 27 | 190 | 110 | 9.5 |
| G10QADE16 | D38E32 | 16 | 27.7 | 679 | 1,087 | 38 | 275 | 150 | 33 | 230 | 130 | 17 |
| G10QADE20 | D50D38 | 19/20 | 41.55 | 1,020 | 1,630 | 50 | 350 | 250 | 38 | 275 | 150 | 32.6 |
| G10QADE22 | D56D45 | 22 | 50.25 | 1,230 | 1,970 | 56 | 350 | 250 | 45 | 340 | 180 | 48.1 |
| G10QADE26 | D60D50 | 26 | 60 | 1,470 | 2,350 | 56 | 400 | 200 | 50 | 350 | 190 | 56.4 |
