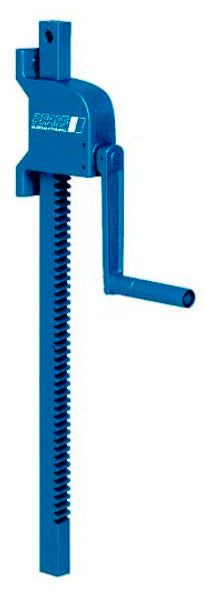

These jacks have been expertly engineered by Pfaff. There are 5 jacks in this category (the difference between each is simply lift, mm) and their main function is for the lowering, lifting, pulling or pushing of heavy loads. These models have a capacity of 1200kg (If you require a higher capacity please see other products in the ZWW/ZWW-L category).
Features and Benefits:
- Low wear and tear due to hardened gear parts and precisely machined teeth
- Rigid wall mounting for added safety
- Robust design and manufactured using steel with accuratly machined worm and spur gears - This enables smooth and easy manual operation not offered by rival products on the market
- Solid steel rack that also features an extra bore hole used for fastening the load
Technical Specifications:
| Model | Article No. WORM GEAR |
Tensile or Pressure (kg) |
Rack Length (mm) |
Lift (mm) |
Hand effort at WLL daN |
Weight (kg) |
|
| ZWW-L 1200/600 |
01905015 | 1200 | 850 | 600 | 14 | 4.1 | |
| ZWW-L 1200/800 |
01905018 | 1200 | 1050 | 800 | 14 | 5.2 | |
| ZWW-L 1200/1000 |
01905021 | 1200 | 1250 | 1000 | 14 | 6.3 | |
| ZWW-L 1200/1200 |
01905024 | 1200 | 1450 | 1200 | 14 | 7.3 | |
| ZWW-L 1200/1400 |
01905025 | 1200 | 1650 | 1400 | 14 | 8.4 |
| Model | ZWW-L 250 |
| A, mm | 25 |
| B, mm | 35 |
| C, mm | - |
| D diameter, mm | 21 |
| E, mm | 20 |
| F, mm | 130 |
| G, mm | 100 |
| H, mm | 180 |
| I, mm | 40 |
| J, mm | 25 |
| K, mm | - |
| L, mm | 140 |
| M, mm | 140 |
| N Diameter, mm | 13 |
| O, mm | 100 |
| P, mm | - |
| Q, mm | 6 |
| R, mm | 200 |
| S, mm | 110 |
| T, mm | - |
| U, mm | - |
| X, mm | - |
