In stock
SKU: RUD000354

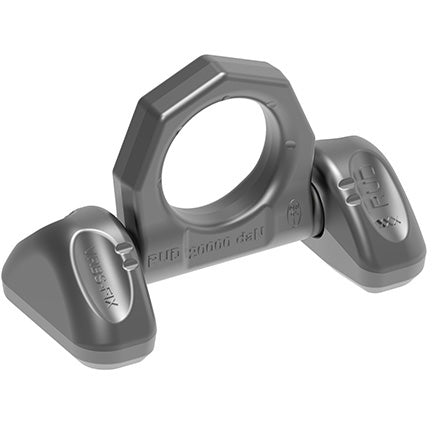

RUD LRBS-FIX Load Ring For Welding Circumferential Weld Seam

From: £45.74
  • Up to 32000 daN
  • Clamping spring avoids rattle noise
  • Welding should only be carried out by a fully qualified person to ISO 9606-1 standard
Final Configuration Price:
From: £45.74
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The RUD LRBS-FIX Load Ring For Welding Circumferential Weld Seam has a safety rating of 2:1. By using an LRBS-FIX lashing point you can weld on parts without bothersome subsurface corrosion due to circular HY seam. Smaller weld seam compared to the previous LRBS. total length is identical to the previous LRBS. There is no time-consuming alignment between the weld on blocks and ring, the clamp spring is protected by being placed inside the weld on the block. The spring fixes the weld on blocks to the ring and creates at the same time a radial clamping so there are no loose items.

The LRBS has easy recognition of inclination angle indicated by markings on the ring and blocks at all levels. Marking of the lifting capacity is marked on the ring and block in all levels and is shown in daN.

**Welding should only be carried out by a fully qualified person according to ISO 9606-1**

  • Up to 32000 daN
  • Clamping spring avoids rattle noise
  • Welding should only be carried out by a fully qualified person to ISO 9606-1 standard

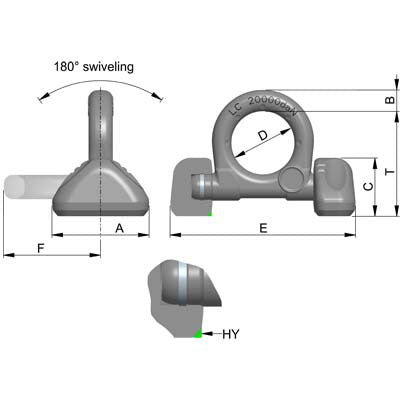

Model Product Code  Weight (kg) T (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
LRBS-FIX8000daN 7999303 0.94 74 60 14 39 48 132 69
LRBS-FIX13400daN 7999304 2.24 97 88 20 50 60 167 91
LRBS-FIX20000daN 7999305 3.72 108 100 22 60 65 191 100
LRBS-FIX32000daN 7999306 8.23 140 130 30 72 90 267 134
