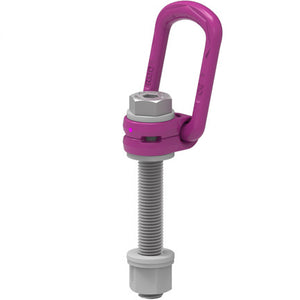

The RUD VLBG-PLUS Load Ring with metric thread and maximum length bolt has a saftey rating of 4:1 and comes fully tested and approved by DGUV. The VLG-PLUS is a grade 12 and is designed for use in extreme temperatures ranging from -40˚C up to 100˚C with a maximum temperature of 350˚C with a reduced WLL. Due to the full 360˚ swivel and the 180˚ pivot, the VLGB-PLUS ensures a perfect connection every time. The load ring features RUD's famous grade 12 ICE bolt that is fully exchangeable.

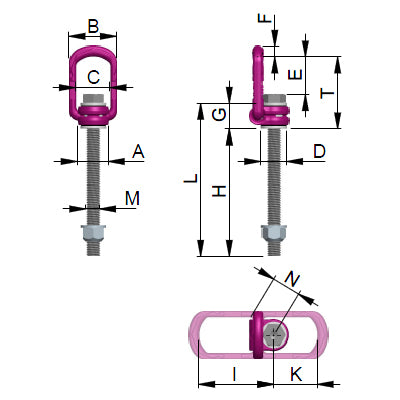

Datasheets
| Model | Capacity (kg) | SKU | Weight (kg) | T (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | K (mm) | L (mm) | M (mm) | N (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VLBG-PLUS 0.63t M8 H=76 | 630 | 8600470 | 0.3 | 75 | 30 | 54 | 34 | 34 | 40 | 10 | 29 | 76 | 75 | 45 | 105 | M8 | 32 |
| VLBG-PLUS 0.90t M10 H=96 | 900 | 8600471 | 0.31 | 75 | 30 | 54 | 34 | 24 | 39 | 10 | 29 | 96 | 75 | 45 | 125 | M10 | 32 |
| VLBG-PLUS 1.35t M12 H=116 | 1350 | 8600472 | 0.34 | 75 | 32 | 54 | 34 | 26 | 38 | 10 | 29 | 116 | 75 | 45 | 145 | M12 | 32 |
| VLBG-PLUS 2.0t M16 H=149 | 2000 | 8600474 | 0.55 | 85 | 33 | 56 | 36 | 30 | 39 | 13.5 | 36 | 149 | 86 | 47 | 185 | M16 | 38 |
| VLBG-PLUS 3.5t M20 H=185 | 3500 | 8600476 | 1.3 | 110 | 50 | 82 | 54 | 45 | 55 | 16.5 | 43 | 185 | 113 | 64 | 230 | M20 | 48 |
| VLBG-PLUS 4.5t M24 H=220 | 4500 | 8600478 | 1.4 | 125 | 50 | 82 | 54 | 45 | 67 | 18 | 43 | 220 | 130 | 78 | 265 | M24 | 48 |
| VLBG-PLUS 6.7t M30 H=279 | 6700 | 8600480 | 3.22 | 147 | 60 | 103 | 65 | 60 | 67 | 22.5 | 61 | 279 | 151 | 80 | 340 | M30 | 67 |
