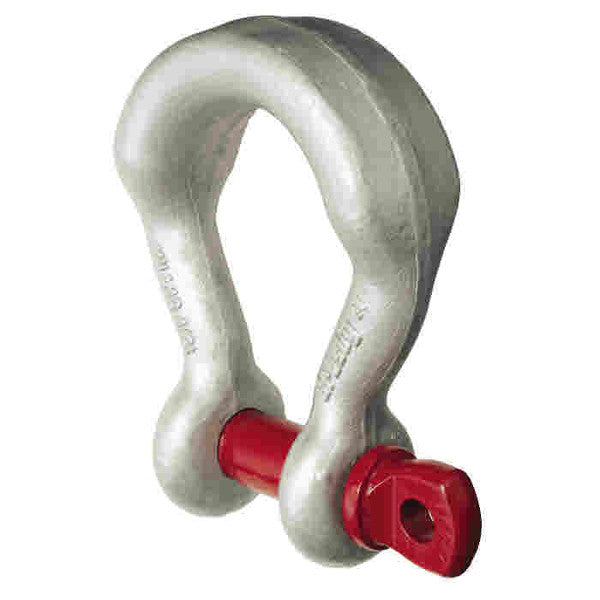

The Crosby G-2169 Alloy Screw Pin Wide Body Shackle is available in capacities ranging from 7000kg up to 18,000kg. The shackles come quenched and tempered for maximum strength and are made from forged alloy steel. The shackles are available in a galvanised and self-coloured finish, the shackles also can be individually proof tested and magnetic particle inspected. Crosby certification available at the time of order. The shackles meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements, importantly these shackles meet other critical performance requirements including fatigue life, impact properties and traceability, not addressed by ASME B30.26. Look for the Red pin... The mark of genuine Crosby quality.
- Significantly improves the life of wire rope slings
- Can be used to connect high strength round slings, synthetic round slings or wire rope slings
- Increase in shackle bow radius provides minimum 58% gain in sling bearing surface
- Increases usable sling strength to a minimum of 15%

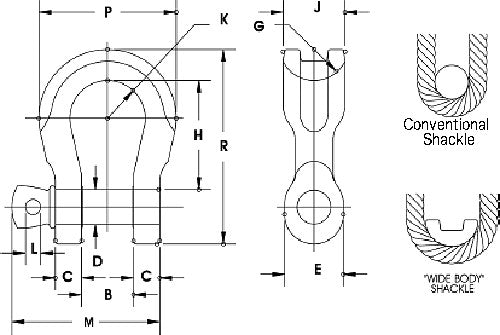

| Working Load Limit (kg) | SKU | Weight (kg) | B +/-.25 (mm) | C (mm) | D +/-0.2 (mm) | E (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | M (mm) | P (mm) | R (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7000 | 1021655 | 7.7 | 31.8 | 17.5 | 22.4 | 46.2 | 31.8 | 90.4 | 40.6 | 31.8 | 12.7 | 101 | 104 | 149 |
| 12,500 | 1021673 | 19.4 | 42.9 | 23.4 | 28.7 | 60.5 | 34.8 | 118 | 54.1 | 41.4 | 14.2 | 130 | 140 | 194 |
| 18,000 | 1021691 | 28.7 | 51.6 | 29.5 | 35.1 | 68.3 | 38.1 | 148 | 63.5 | 50.8 | 17.5 | 159 | 172 | 238 |
