SKU: STR000059

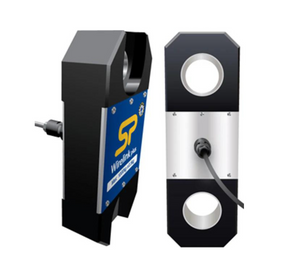

Straightpoint Wirelink Plus Tension Load Cell

From: £907.71
Made in the UK
Popular
  • Up to 300,000kg capacity
  • 10 Meter cable as standard
  • Non-indicating for use with handheld plus
Final Configuration Price:
£907.71
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout



NOTE: During Black Friday Week delivery might take a little longer due to the increased demand of our Black Friday sale. We thank you for your patience and we'll do our very best to get you your items as soon as we can.



DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The Wirelink Plus load link from Straightpoint is similar to the very popular Radiolink and Loadlink Plus digital dynamometer tension load cells but excludes the built-in digital display. This non-indicating load link is designed to be used with the cabled handheld plus digital display (HHP), desktop controller PC software (DCP10M) and can even be connected to a wireless transmitter to form part of a wireless system in combination with the computer monitoring software we offer. (For more information on our DCP10M load monitoring software please contact our sales team).

The Wirelink Plus is Manufactured from aerospace grade aluminium and has an advanced internal design structure providing unrivalled strength to weight ratios.

This range of cabled/wired load links are extremely lightweight, easy to handle and are used throughout the world in a vast range of industries for lifting and pulling as well as proof and structural load testing with capacities up to 300,000kg.

The Wirelink Plus load cell is supplied with a 10-meter cable as standard, however, a cable can be supplied with lengths available up to 1,500 meters depending on the output format.

  • Constructed of lightweight aerospace grade aluminium
  • Available in capacities ranging from 1 - 300 tonnes
  • High accuracy
  • Multiple output options include mV/V, analogue out, ASCII, MODBUS RTU and CAN-BUS
  • Available in IP68 Environmental protection
  • Options for subsea available

A standard analogue output option is available to include:-

  • 3 wire 0-10v
  • 3 wire 0-5v
  • 4 wire +/-10v
  • 3 wire 4-20mA
  • 2 wire 4-20mA

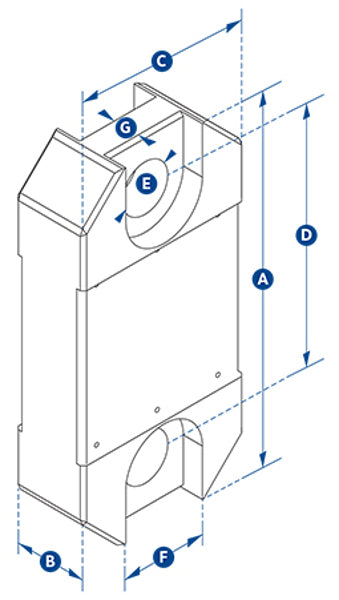

Model Capacity (kg) Weight (kg) Saftey Factor Operating Temperature Protection A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Crosby Shackle Size Loading Pin Diameter (mm)
WLP1T 1000 1.4 12:1 -10ËšC Up to 50ËšC IP67 204 43 101 146 24.5 48 19 G2130 19
WLP2T5 2500 1.4 5:1 -10ËšC Up to 50ËšC IP67 204 43 101 146 24.5 48 19 G2130 19
WLP5T 5000 2 5:1 -10ËšC Up to 50ËšC IP67 249 43 101 165 38 66 32 G2130 25
WLP12T 12,000 3.2 5:1 -10ËšC Up to 50ËšC IP67 305 47 101 193 47.5     G2130 35
WLP25T 25,000 5 5:1 -10ËšC Up to 50ËšC IP67 340 60 115 215 55     G2130 51
WLP35T 35,000 8.6 5:1 -10ËšC Up to 50ËšC IP67 393 75 126 225 60     G2130 57
WLP50T 50,000 11.5 5:1 -10ËšC Up to 50ËšC IP67 424 75 163 230 76     G2140 57
WLP75T 75,000 16 5:1 -10ËšC Up to 50ËšC IP67 470 75 202 260 76     G2140 70
WLP100T 100,000 34 5:1 -10ËšC Up to 50ËšC IP67 608 99 255 320 109     G2140 83
WLP150T 150,000 46 4:1 -10ËšC Up to 50ËšC IP67 670 99 303 360 109     G2140 95
WLP200T 200,000 72 5:1 -10ËšC Up to 50ËšC IP67 700 144 320 350 132     G2140 121
WLP250T 250,000 72 4:1 -10ËšC Up to 50ËšC IP67 700 144 320 350 132     G2140 127
WLP300T 300,000 118 5:1 -10ËšC Up to 50ËšC IP67 806 150 426 350 160     G2140 152
