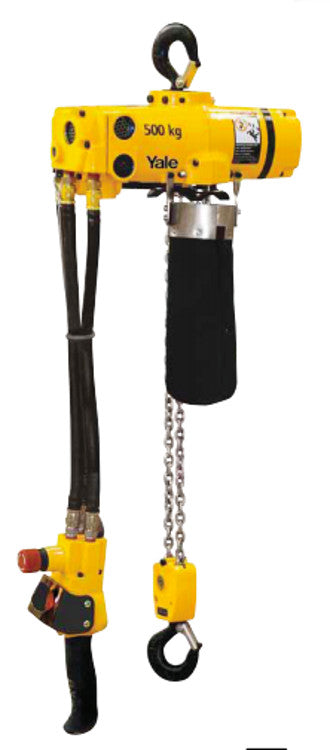

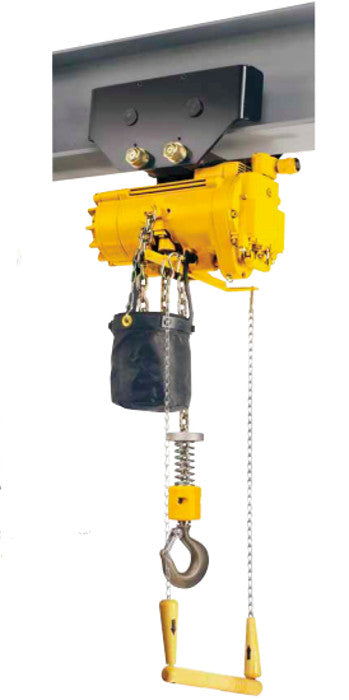

The CPA Pneumatic Chain Hoist are characterised by high durability in a great number of industrial applications. The robust but lightweight housing allows for easy transportation. The CPA is designed for operating under pressures of 5-7 Bar. The rotating piston motor has a 100% duty rating and an unlimited number of starts for continuous operation. The CPA has integrated limit switches for the highest and lowest hook positions as standard and also features a self-adjusting automatic disk brake, which is maintenance free. The CPA has a extremely sensitive control with an integrated emergency stop for a precise positioning of the load. There is an air release for the brake as standard for models CPA2-31, CPA5-17, and CPA10-9.
The CPA Pneumatic Chain Hoist is perfectly suited for use in automobile and aircraft industries, shipyards, on ships and docks, Foundries, on/offshore, Paint factories, paint shops, refineries, oil depots, galvanising, printing, textile, food industries, pulp, paper, cement mills, glass, ceramic industries, woodworking industries, chemical industries, heat treatment and power plants etc.
| Model | Capacity (kg) | Falls Of Load Chain | Lifting Speed With Rated Load (m/min) | Lifting Speed Without Load (m/min) | Lowering Speed With Rated Load (m/min) | Air Consumption Rated Load (mm) | Hoist Motor (kW) | Weight @ 3 Mtr HOL (kg) |
|---|---|---|---|---|---|---|---|---|
| CPA1-13 | 125 | 1 | 13.1 | 17.1 | 11.3 | 0.9 | 0.4 | 15.4 |
| CPA2-10 | 250 | 1 | 9.8 | 17.1 | 13.7 | 0.9 | 0.4 | 15.4 |
| CPA2-31 | 250 | 1 | 31 | 52 | 36 | 1.98 | 1.33 | 21.8 |
| CPA5-5 | 500 | 2 | 4.6 | 7.9 | 6.7 | 0.9 | 0.4 | 17.2 |
| CPA5-17 | 500 | 1 | 16.8 | 32.3 | 29.6 | 1.27 | 1.33 | 21.8 |
| CPA10-9 | 980 | 2 | 8.5 | 16.2 | 14.9 | 1.27 | 1.33 | 27.7 |

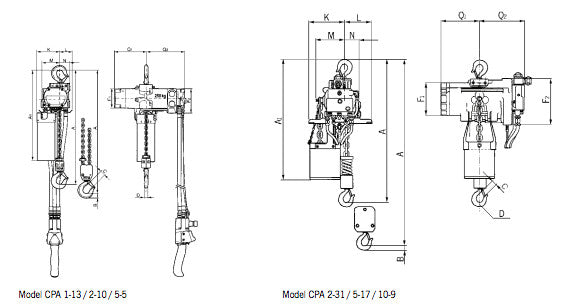

Technical Specifications:-
| Model | Capacity (kg) | A (mm) | A1 (mm) | B (mm) | C (mm) | D (mm) | F1 (mm) | F2 (mm) | K (mm) | L (mm) | M (mm) | N (mm) | Q1 (mm) | Q2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPA1-13 | 125 | 292 | 410 | 21 | 20 | 16 | 90 | 120 | 103 | 57 | 120 | 50 | 142 | 183 |
| CPA2-10 | 250 | 292 | 410 | 21 | 20 | 16 | 90 | 120 | 103 | 57 | 120 | 50 | 142 | 183 |
| CPA2-31 | 250 | 457 | 483 | 25 | 24 | 26 | 130 | 180 | 146 | 102 | 114 | 54 | 162 | 181 |
| CPA5-5 | 500 | 324 | 410 | 14 | 24 | 14 | 90 | 120 | 103 | 57 | 120 | 50 | 142 | 183 |
| CPA5-17 | 500 | 457 | 483 | 25 | 24 | 26 | 130 | 180 | 146 | 102 | 114 | 54 | 162 | 181 |
| CPA10-9 | 980 | 457 | 508 | 27 | 28 | 28 | 130 | 180 | 165 | 83 | 135 | 25 | 162 | 181 |
