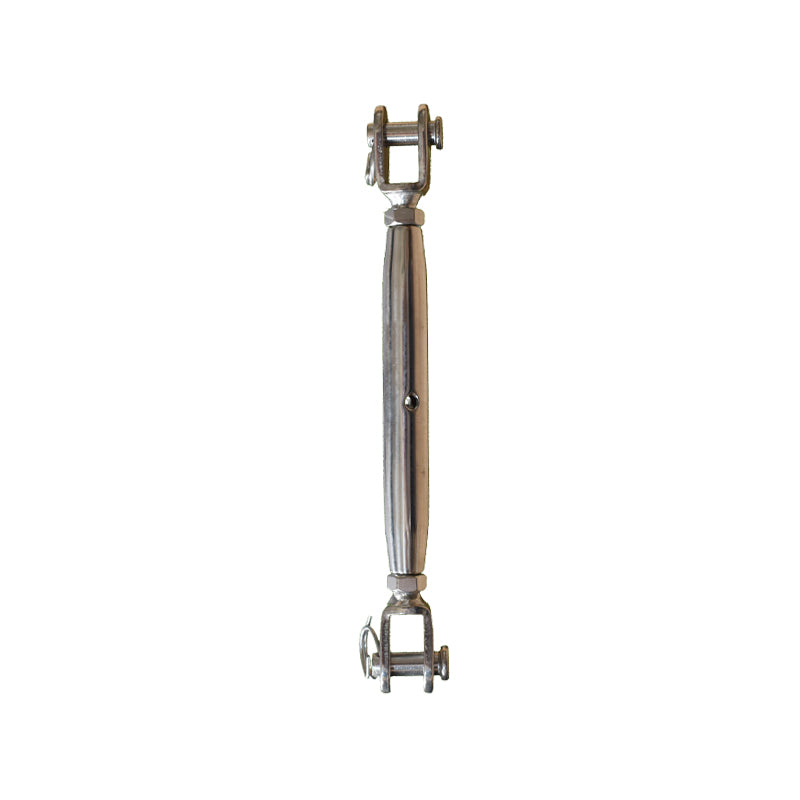

Take out the clevis pin by removing the safety cotter pin and adjust the screws accordingly
Used in wire rope and rigging assemblies
Thread diameters available from 5mm up to 20mm
Minimum breaking load is for guidance only, not to be used in lifting.
| Thread Diameter | D | L | W | M.B.L. (KN) | Part Code |
| M5 | 5mm | 130mm | 6.5mm | 5.6 | SSRSJJ05 |
| M6 | 6mm | 150mm | 7.5mm | 7.7 | SSRSJJ06 |
| M8 | 8mm | 165mm | 11.0mm | 13.9 | SSRSJJ08 |
| M10 | 9mm | 190mm | 12.0mm | 21.8 | SSRSJJ10 |
| M12 | 12mm | 245mm | 14.0mm | 32.0 | SSRSJJ12 |
| M16 | 16mm | 310mm | 17.0mm | 57.0 | SSRSJJ16 |
| M20 | 19mm | 360mm | 20.0mm | 89.0 | SSRSJJ20 |
| MATERIAL | Stainless steel |
|---|---|
| GRADE | AISI 316 |
| FINISH | Polished |
