In stock
SKU: PFA000147

Pfaff Silberblau SSP Stainless Screw Jack with Swivel Brackets

Price on Application
New
  • 4 different sizes
  • Lifting capacities from 50 to 250 kN
  • Input speeds up to 1500 min-1
  • Complete stainless design
Estimated time to dispatch
Estimated time to dispatch: Please call or email to find out more
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

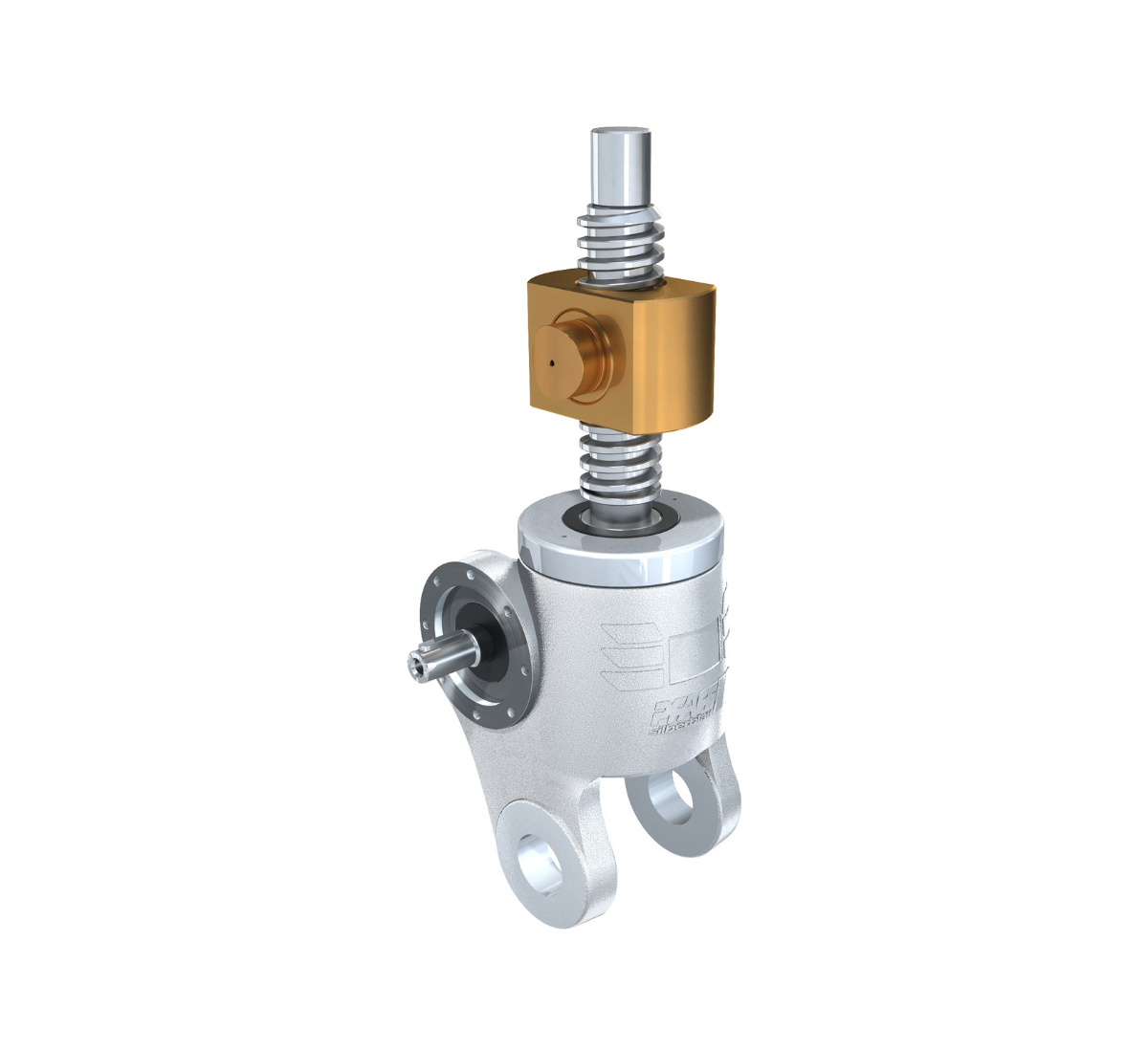

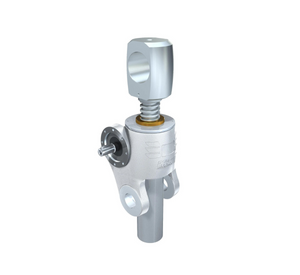

Newly developed by Pfaff Silberblau, the SSP stainless worm gear screw jack has been specifically designed for the tough requirements of applications such as modern paper machines.

Available in four different sizes - lifting capacities from 50 to 250kN - this new series of screw jacks is based on a standardised construction kit. Due to the high-grade stainless steel and innovative technology, there should be no obstacles anymore to a mechanical lifting solution in the field of steel hydraulics construction, food industry as well the explosion-proof area.


FEATURES

  • 4 different sizes
  • Lifting capacities from 50 to 250 kN
  • Input speeds up to 1500 min-1
  • Complete stainless design
  • Self-locking trapezoidal screw
  • Grease-lubricated configuration
  • Worm gear pairs in two ratio steps (normal „N“ and slow „L“)
  • Worm-drive shaft quenched and ground
  • Motor flange screwable from the outside
  • Housing with swivel brackets
  • Standard fastening for motors
  • Chamfer at the header to fasten the protection boot
  • FEM optimized housing
  • Identically constructed to European manufacturers
  • Possible usage according to directive 2014/34/EU (ATEX)
  • 4 different sizes
  • Lifting capacities from 50 to 250 kN
  • Input speeds up to 1500 min-1
  • Complete stainless design
  • Self-locking trapezoidal screw
  • Grease-lubricated configuration
  • Worm gear pairs in two ratio steps (normal „N“ and slow „L“)
  • Worm-drive shaft quenched and ground
  • Motor flange screwable from the outside
  • Housing with swivel brackets
  • Standard fastening for motors
  • Chamfer at the header to fasten the protection boot
  • FEM optimized housing
  • Identically constructed to European manufacturers
  • Possible usage according to directive 2014/34/EU (ATEX)
