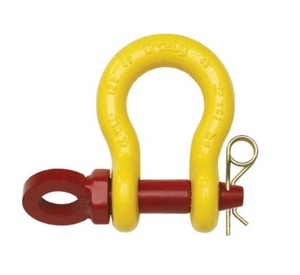

The G-209R ROV Shackle is made in conjunction with major north sea operations, Crosby has developed specifically designed products to be used in underwater or subsea exercises. These products are designed to be highly visible and easy to use for the ROV operator. The Crosby ROV product line reflects the companies unmatched quality and safety standards while providing a great adaptability for a variety of subsea applications.
- Capacities ranging from 6500kg up to 55,000kg
- Forged steel, quenched and tempered with alloy pins
- Working load limit is permanently shown on every shackle
- Fatigue rated
- Quick Check deformation and angle indicators forged onto the bow of the shackle
- All ROV shackle bows are galvanised then painted a fluorescent yellow for visibility
- Look for the red pin... The mark of genuine Crosby quality
- Tolerance +/- of 6.35
Datasheets

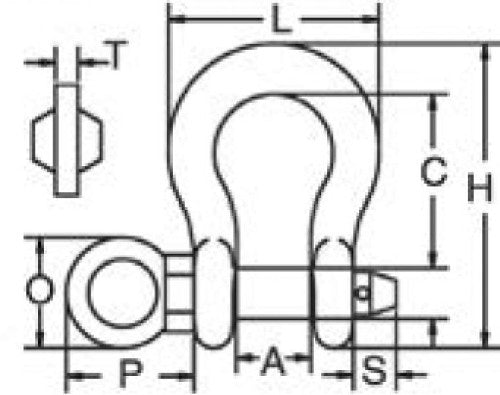

| Woking Load Limit (kg) | SKU | Weight (kg) | A (mm) | B (mm) | C (mm) | H (mm) | L (mm) | O (mm) | P (mm) | S (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500 | 0120872 | 1.69 | 36.6 | 25.4 | 84 | 148 | 102 | 50 | 58 | 17 | 10 |
| 8500 | 0120902 | 2.59 | 42.9 | 28.7 | 95.5 | 167 | 119 | 50 | 61 | 18 | 10 |
| 9500 | 1020932 | 3.77 | 46 | 31.8 | 108 | 190 | 131 | 70 | 83 | 18 | 12 |
| 12,000 | 1020952 | 5.02 | 51.5 | 35.1 | 119 | 210 | 146 | 70 | 84 | 23 | 12 |
| 13,500 | 1020972 | 6.65 | 57 | 38.1 | 133 | 233 | 162 | 75 | 91 | 23 | 15 |
| 17,000 | 1090992 | 8.58 | 60.5 | 41.4 | 146 | 254 | 175 | 75 | 93 | 24 | 15 |
| 25,000 | 1021102 | 14.1 | 73 | 51 | 178 | 313 | 225 | 90 | 114 | 29 | 17.5 |
| 35,000 | 1021125 | 21.4 | 82.5 | 57 | 197 | 348 | 253 | 106 | 132 | 30 | 20 |
| 55,000 | 1021158 | 42.8 | 105 | 70 | 267 | 453 | 327 | 120 | 145 | 45 | 25 |
