In stock
SKU: STA001149

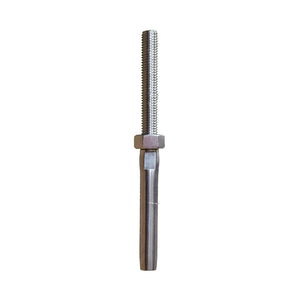

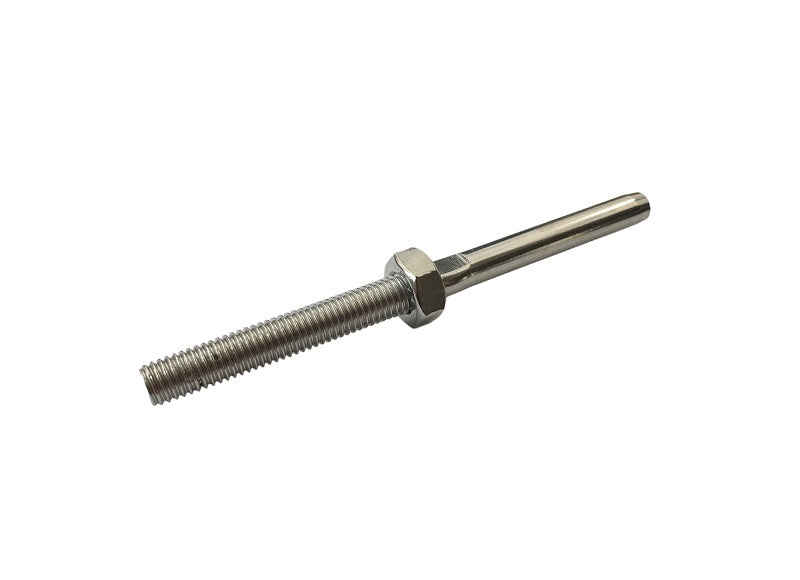

Stainless Steel Swage Stud Terminal (Right Head Thread)

From: £1.33
  • AISI 316 grade steel
  • Rust resistant
  • Used in wire rope assemblies
  • Terminal fitting
  • Useful for offshore applications
  • Marine-grade
  • Not rated for lifting, commercial use only
Final Configuration Price:
£1.33
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Useful for outdoor applications such as boating, offshore and generally wet environments

Suits wire rope diameter of 2mm up to 12mm

  • AISI 316 grade steel
  • Rust resistant
  • Used in wire rope assemblies
  • Terminal fitting
  • Useful for offshore applications
  • Marine-grade
  • Not rated for lifting, commercial use only

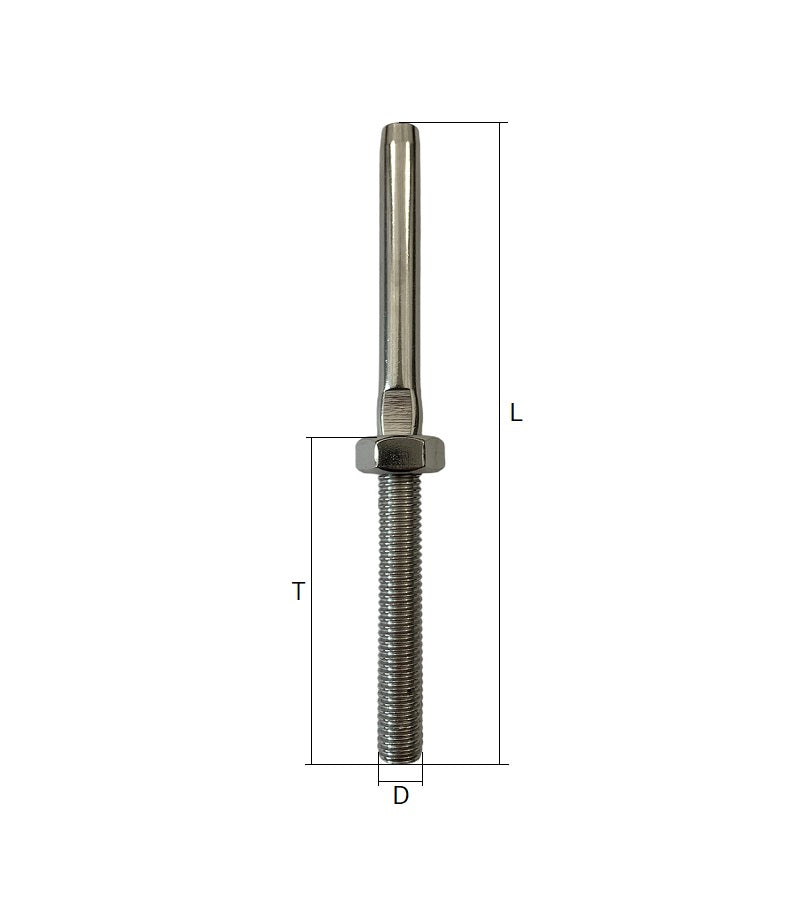

Wire Dia. L T D Part Code
2mm 73mm 38mm M4 SSSST02
3mm 100mm 48mm M6 SSSST03
4mm 117mm 57mm M8 SSSST04
5mm 130mm 63mm M10 SSSST05
6mm 162mm 80mm M12 SSSST06
8mm 200mm 100mm M16 SSSST08
10mm 210mm 100mm M16 SSSST10
12mm 245mm 120mm M20 SSSST12



MATERIAL Stainless steel
GRADE AISI 316
FINISH Polished
