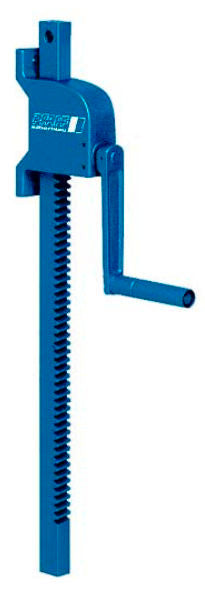

These jacks have been expertly engineered by Pfaff. There are 5 jacks in this category and their main function is for the lowering, lifting, pulling or pushing of heavy loads. These models have a capacity of 300kg (If you require a higher capacity please see other products in the ZWW/ZWW-L category).
Features and Benefits:
- Low wear and tear due to hardened gear parts and precisely machined teeth
- Rigid wall mounting for added safety
- Robust design and manufactured using steel with accurately machined worm and spur gears - This enables smooth and easy manual operation not offered by rival products on the market
- Solid steel rack that also features an extra borehole used for fastening the load
Technical Specifications:
| Model | Article No. WORM GEAR |
Tensile or Pressure (kg) |
Rack Length (mm) |
Lift (mm) |
Hand effort at WLL daN |
Weight (kg) |
|
| ZWW-L 300/600 |
01905013 | 300 | 800 | 600 | 10 | 5.9 | |
| ZWW-L 300/800 |
01905015 | 300 | 1000 | 800 | 10 | 6.4 | |
| ZWW-L 300/1000 |
01905019 | 300 | 1200 | 1000 | 10 | 6.9 | |
| Model | ZWW-L 300 |
| A, mm | 20 |
| B, mm | 20 |
| C, mm | - |
| D diameter, mm | 11 |
| E, mm | 16 |
| F, mm | 130 |
| G, mm | 119 |
| H, mm | 200 |
| I, mm | - |
| J, mm | 38 |
| K, mm | - |
| L, mm | 60 |
| M, mm | 170 |
| N Diameter, mm | 11 |
| O, mm | - |
| P, mm | - |
| Q, mm | 10 |
| R, mm | 200 |
| S, mm | 110 |
| T, mm | - |
| U, mm | - |
| X, mm | - |
