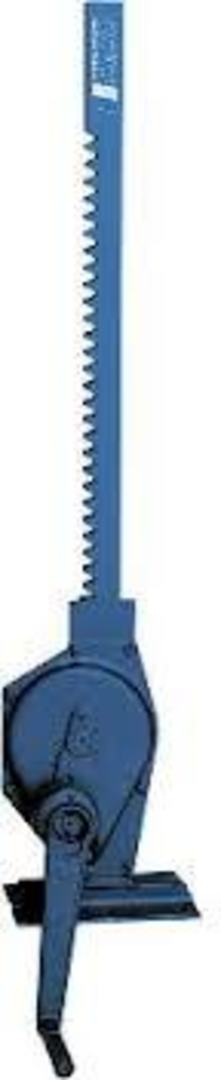

SCH-W Sluice Gate Jack Systems with rack and pinion drive
Capacity 1500kg
Such Sluice gate systems would generally be found utilised in water power, agricultural and plant engineering tasks. Due to the fact that different crank types and layouts are possible there a literally hundreds of potential arrangements for such a system.
Features & Benefits:
- Spur gear complete with formed gearwheels
- Includes a spring loaded safety crank, this provides pressure when required
- Slide lacquer treated racks
- Extremely accurately milled crank gear
- Comes delivered with a SIFEKU crank.
**Load case II according to Euler - Pressure force will be reduced with higher lift
| Crank Type | Sifeku | Sifeku | Sifeku | Siku | |
|---|---|---|---|---|---|
| Lifting Capacity | kg | 1500 | 3000 | 5000 | 10000 |
| Pressure Force | kg | 1000 | 2000 | 3000 | 6000 |
| Rack Length | mm | 1200 | 1250 | 1350 | 1550 |
| Lift | mm | 800 | 800 | 900 | 1000 |
| Weight | kg | 18 | 25 | 32 | 56 |
| A | mm | 35 | 45 | 50 | 60 |
| B | mm | 25 | 30 | 40 | 50 |
| C | mm | 140 | 160 | 145 | 165 |
| D | mm | 85 | 60 | 45 | 65 |
| E | mm | 125 | 204 | 189 | 235 |
| F | mm | 78 | 92 | 100 | 112 |
| G | mm | 175 | 230 | 260 | 320 |
| H | mm | 310 | 395 | 400 | 480 |
| I | mm | 33.5 | 39.5 | 51 | 59 |
| J | mm | 43.3 | 53.1 | 69.5 | 88.3 |
| K | mm | 121 | 138 | 81 | 84 |
| L | mm | 230 | 230 | 230 | 290 |
| M | mm | 90 | 90 | 90 | 115 |
| N | mm | 153 | 158 | 173 | 183 |
| O | mm | 52.5 | 55 | 61 | 66 |
| P | mm | 52.5 | 55 | 64 | 70 |
| Q | mm | 14 | 14 | 14 | 14 |
| R | mm | 7 | 7 | 7 | 8 |
| S | mm | 76.5 | 85.5 | 88 | 100 |
| T | mm | 100.5 | 108.5 | 120 | 140 |
| U | mm | 113 | 121 | 132 | 185 |
| V | mm | 86 | 94 | 105 | N/A |
| W | mm | 136 | 144 | 155 | N/A |
| X | mm | 130 | 130 | 130 | 250 |
| Y | mm | 250 | 250 | 250 | 300 |
