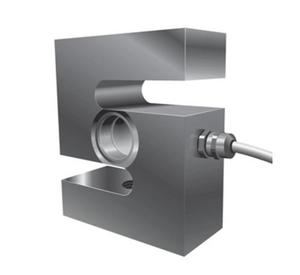

The Straightpoint S Beam Load Cell comes in capacities ranging from 100kg up to 5000kg. The S beam range of tension/compression load cells is suitable for smaller silo, vessel and tank weighing applications or for building into OEM projects, such as testing machines etc.
The S beam load cell comes hardwired as standard and is supplied with a 10-meter long cable, The S Beam Load Cell can be connected to the straightpoint accessories such as the Handheld Plus.
The S beam can be used in both compression or tension and has a threaded hole at each end making it a very flexible solution. Fixing options available including threaded bar, rod end bearings and eye bolts.

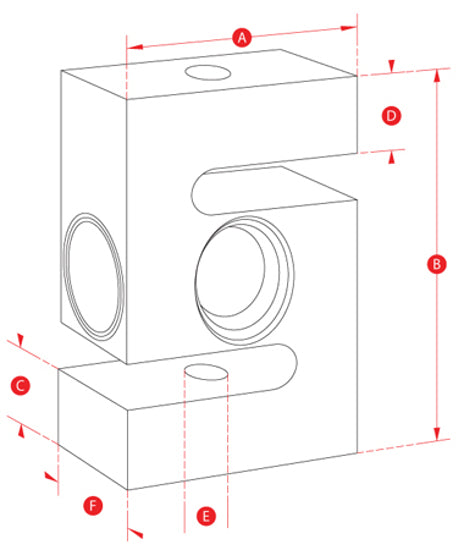

| Model | Capacity (kg) | Weight (kg) | Saftey Factor | Operating Temperture | Protection | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SB500K | 500 | 0.9 | 5:1 | -30ËšC Up to 80ËšC | IP67 | 70 | 90 | 19 | 19 | M12x1.75 | 32 |
| SB1T | 1000 | 0.9 | 5:1 | -30ËšC Up to 80ËšC | IP67 | 70 | 90 | 19 | 19 | M16x2 | 32 |
| SB2T | 2000 | 0.9 | 5:1 | -30ËšC Up to 80ËšC | IP67 | 70 | 90 | 19 | 19 | M16x2 | 32 |
| SB5T | 5000 | 1.9 | 5:1 | -30ËšC Up to 80ËšC | IP67 | 100 | 120 | 26 | 26 | M24x2 | 45 |
