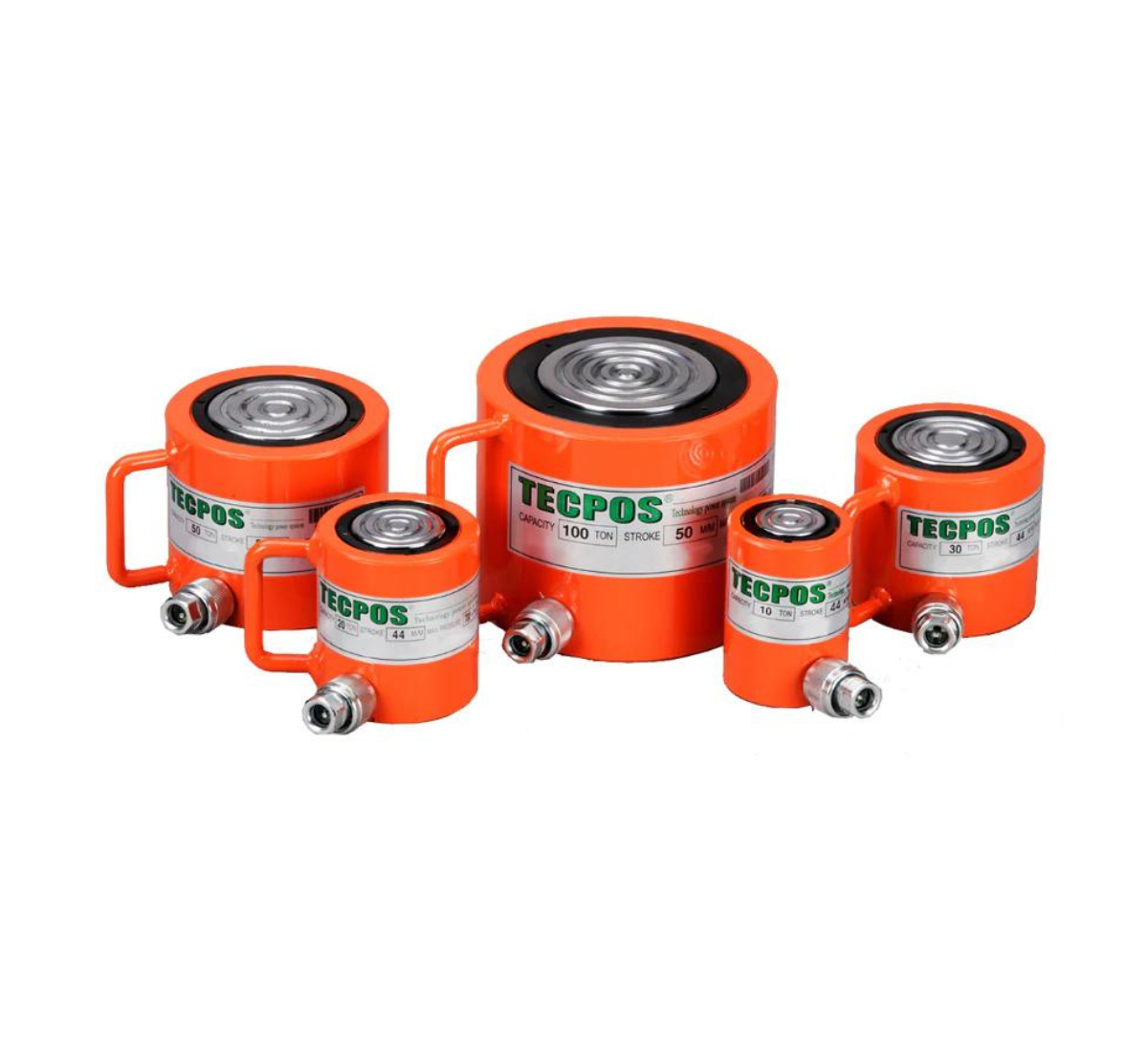

The Tecpos 'Shorty' Low Profile Cylinders are some of the smaller hydraulic cylinders in the product range, with a capacity ranging from 10 tonnes all the way up to 100 tonnes this is a very diverse product. The Shorty stroke size varies from 44mm - 50mm and has a maximum pressure of 700 Bar. The Shorty features a hydraulic coupler: TBC 381F(PT3/8). The Shorty has a compact flat design for use where other cylinders can not fit.
Datasheets

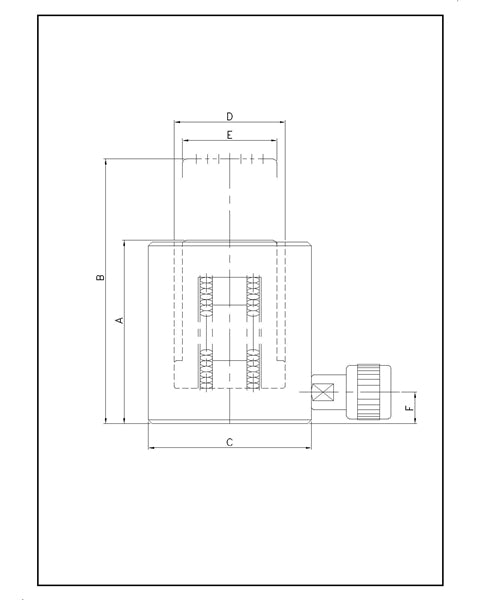

| Model | Cyl. Capacity (tonnes) | Stroke (mm) | Cyl. Effective Area (cm2) | Oil Capacity (cc) | Retracted Height (A) | Extended Height (B) | Cyl Out Diameter (C) | Cyl. Bore Diameter (D) | Piston Rod Diameter (E) | Base To Inlet Port (F) | Weight (kg) | Pump |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSSC-1044 | 10 | 44 | 15.2 | 66 | 99 | 143 | 68 | 44 | 38 | 17 | 2.6 | 1B |
| TSSC-2044 | 20 | 44 | 28.3 | 124 | 99 | 143 | 88 | 60 | 51 | 17 | 4.3 | 1B |
| TSSC-3044 | 40 | 44 | 44.2 | 194 | 99 | 143 | 105 | 75 | 64 | 17 | 6.2 | 1B |
| TSSC-5050 | 50 | 50 | 63.6 | 318 | 109 | 159 | 125 | 90 | 75 | 19 | 10.2 | 1B |
| TSSC-10050 | 100 | 50 | 132.7 | 663 | 139 | 189 | 165 | 130 | 100 | 27 | 21 | 1C |
| TSSC-15050 | 150 | 50 | 201 | 1005 | 170 | 220 | 208 | 160 | 135 | 33 | 41.1 | 1C |
| TSSC-20050 | 200 | 50 | 283.5 | 1417 | 180 | 230 | 245 | 190 | 170 | 38 | 60.3 | 1C |
