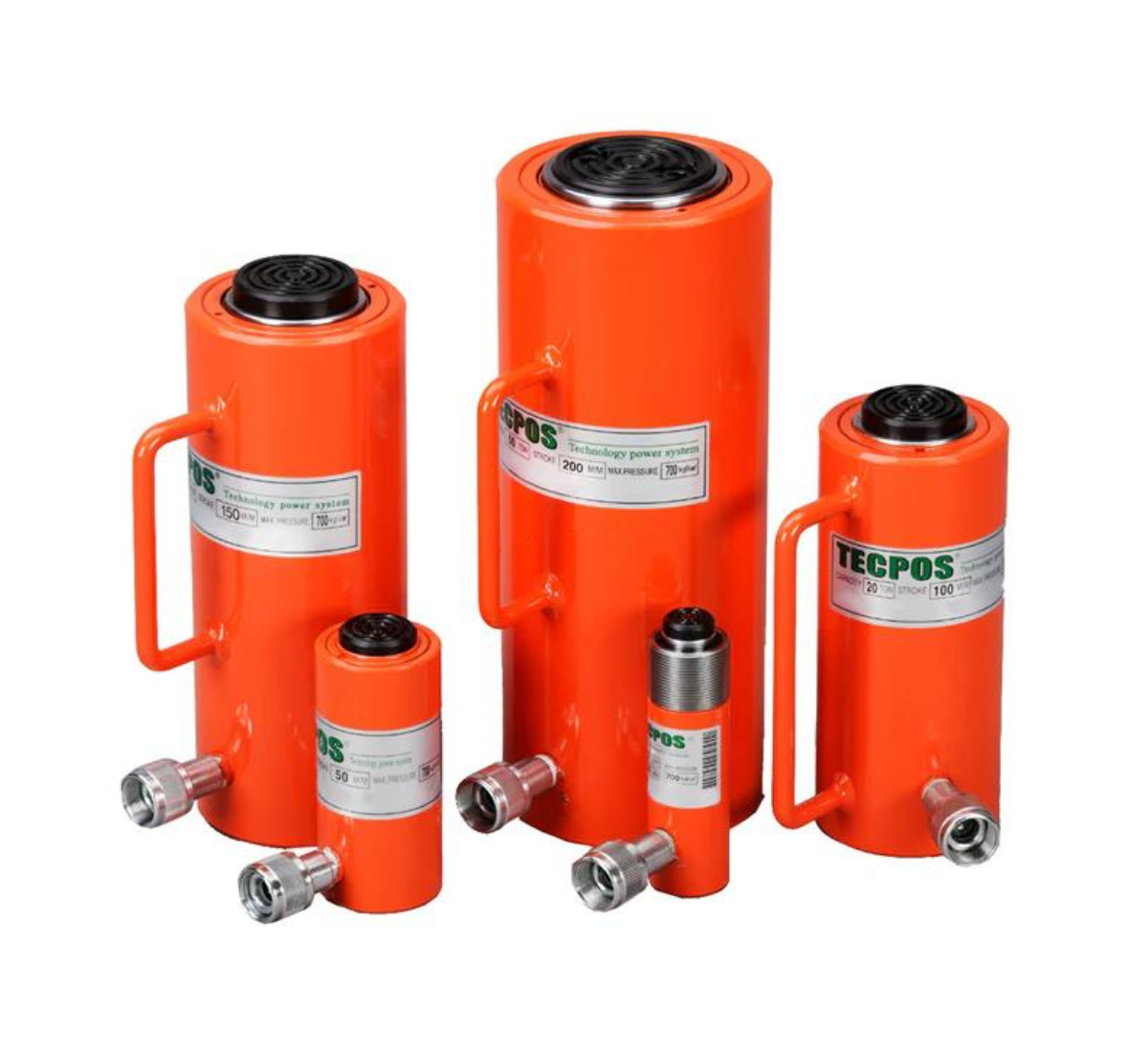

The Tecpos Single Acting Hydraulic Cylinders have a capacity ranging from 5 - 100 tonnes and a stroke of 50-200mm. The Hydraulic cylinder is capable of taking a huge amount of pressure with a maximum of 700 Bar. The Cylinder has a Hydraulic coupler: TBC381F(PT3/8). The Cylinder is capable of using 30% more oil capacity if a pump is connected.

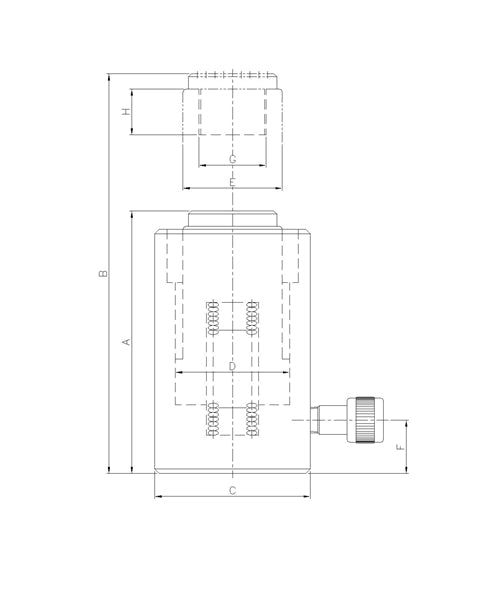

| Model | Cyl. Cap (tonnes) | Stroke (mm) | Cyl. Effective Area (cm2) | Oil Cap (cc) | Retracted Height (A) | Extended Height (B) | Cyl. Out Dia (C) | Cyl Bore Dia (D) | Piston Rod Dia (E) | Base To Inlet Port (F) | Piston Rod Internal Thread (G) | Piston Rod Thread Length (H) | Weight (kg) | Pump |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TS-55 | 5 | 50 | 6.38 | 35 | 134 | 184 | 38 | 28.5 | 25 | 25 | 3/4-16 | 16 | 1.1 | 1B |
| TS-510 | 5 | 100 | 6.38 | 70 | 184 | 284 | 38 | 28.5 | 25 | 25 | 3/4-16 | 16 | 1.4 | 1B |
| TS-515 | 5 | 150 | 6.38 | 106 | 234 | 384 | 38 | 28.5 | 25 | 25 | 3/4-16 | 16 | 1.8 | 1B |
| TS-520 | 5 | 200 | 6.38 | 140 | 284 | 484 | 38 | 28.5 | 25 | 25 | 3/4-16 | 16 | 2.2 | 1B |
| TS-105 | 10 | 50 | 15.2 | 76 | 133 | 183 | 58 | 44 | 38 | 20 | 1-8 | 19 | 2.1 | 1B |
| TS-1010 | 10 | 100 | 15.2 | 152 | 183 | 283 | 58 | 44 | 38 | 20 | 1-8 | 19 | 3.4 | 1B |
| TS-1015 | 10 | 150 | 15.2 | 228 | 233 | 383 | 58 | 44 | 38 | 20 | 1-8 | 19 | 4.8 | 1B |
| TS-1020 | 10 | 200 | 15.2 | 304 | 283 | 483 | 58 | 44 | 38 | 20 | 1-8 | 19 | 5.6 | 1B |
| TS-205 | 20 | 50 | 33.18 | 166 | 165 | 215 | 88 | 65 | 57 | 35 | M38x2.0 | 26 | 7 | 1B |
| TS-2010 | 20 | 100 | 33.18 | 332 | 215 | 315 | 88 | 65 | 57 | 35 | M38x2.0 | 26 | 8.8 | 1B |
| TS-2015 | 20 | 150 | 33.18 | 498 | 265 | 415 | 88 | 65 | 57 | 35 | M38x2.0 | 26 | 11 | 1B |
| TS-2020 | 20 | 200 | 33.18 | 664 | 315 | 515 | 88 | 65 | 57 | 35 | M38x2.0 | 26 | 12.7 | 1C |
| TS-305 | 30 | 50 | 44.18 | 220 | 172 | 222 | 102 | 75 | 65 | 35 | M44x2.0 | 30 | 9.8 | 1B |
| TS-3010 | 30 | 100 | 44.18 | 440 | 222 | 322 | 102 | 75 | 65 | 35 | M44x2.0 | 30 | 12.5 | 1B |
| TS-3015 | 30 | 150 | 44.18 | 660 | 272 | 422 | 102 | 75 | 65 | 35 | M44x2.0 | 30 | 16 | 1C |
| TS-3020 | 30 | 200 | 44.18 | 880 | 322 | 522 | 102 | 75 | 65 | 35 | M44x2.0 | 30 | 17.5 | 1C |
| TS-505 | 50 | 50 | 70.88 | 355 | 173 | 223 | 127 | 95 | 85 | 35 | 15.8 | 1C | ||
| TS-5010 | 50 | 100 | 70.88 | 710 | 223 | 323 | 127 | 95 | 85 | 35 | 20 | 1C | ||
| TS-5015 | 50 | 150 | 70.88 | 1070 | 273 | 423 | 127 | 95 | 85 | 35 | 23.5 | 1C | ||
| TS-5020 | 50 | 200 | 70.88 | 1425 | 323 | 523 | 127 | 95 | 85 | 35 | 27.7 | 1C | ||
| TS-10010 | 100 | 100 | 132.7 | 1330 | 226 | 326 | 165 | 130 | 110 | 40 | 34 | 3A | ||
| TS-10015 | 100 | 150 | 132.7 | 1991 | 436 | 436 | 165 | 130 | 110 | 40 | 44.5 | 3A |
