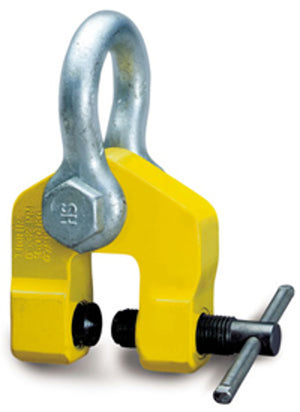

The TSH Swivel Hook screw clamps are suitable for many possible applications. It is particularly useful for lifting and pulling sheet metal, girders, and steel constructions. The clamps are supplied complete with an alloy shackle that allows for pulling at 180˚ degrees.
*price per clamp*
*Surface of material to be lifted must not exceed a harness level of HRC 50/Brinell 480*
| Model | WLL (kg) | Jaw Capacity (mm) | Weight (kg) |
|---|---|---|---|
| TSH 750 | 750 | 0-30 | 3 |
| TSH 1500 | 1500 | 0-32 | 7 |
| TSH 3000 | 3000 | 0-50 | 11 |
| TSH 5000 | 5000 | 0-80 | 27 |

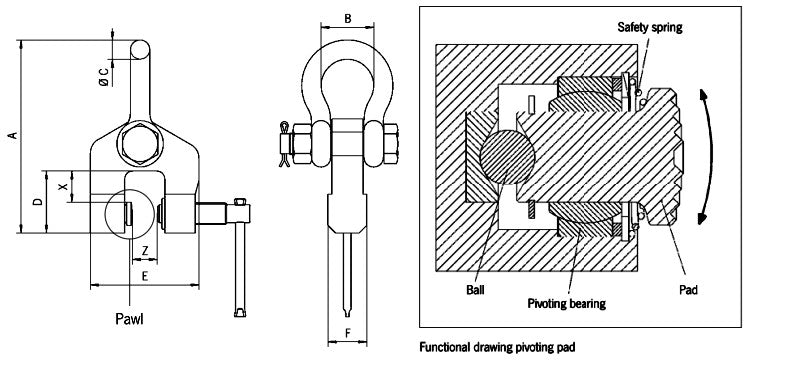

Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | X (mm) |
|---|---|---|---|---|---|---|---|
| TSH750 | 190 | 52 | 19 | 43 | 113 | 35 | 15 |
| TSH1500 | 225 | 65 | 26 | 75 | 130 | 44 | 40 |
| TSH3000 | 290 | 74 | 30 | 85 | 170 | 50 | 40 |
| TSH5000 | 470 | 130 | 50 | 135 | 225 | 72 | 50 |
