In stock
SKU: CLA000379

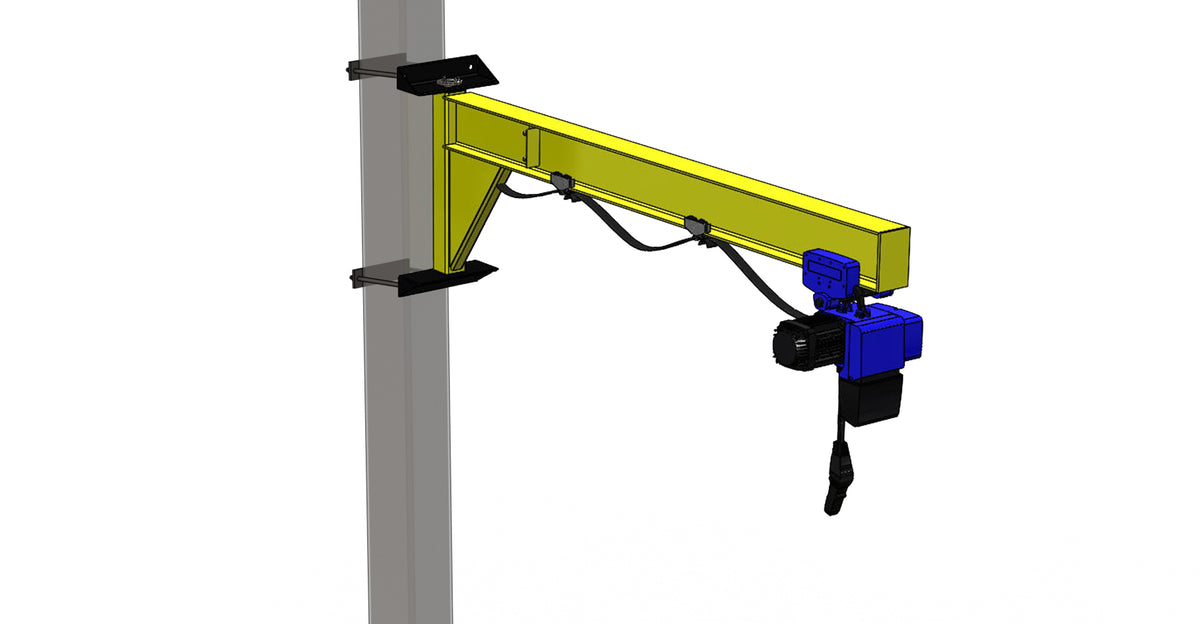

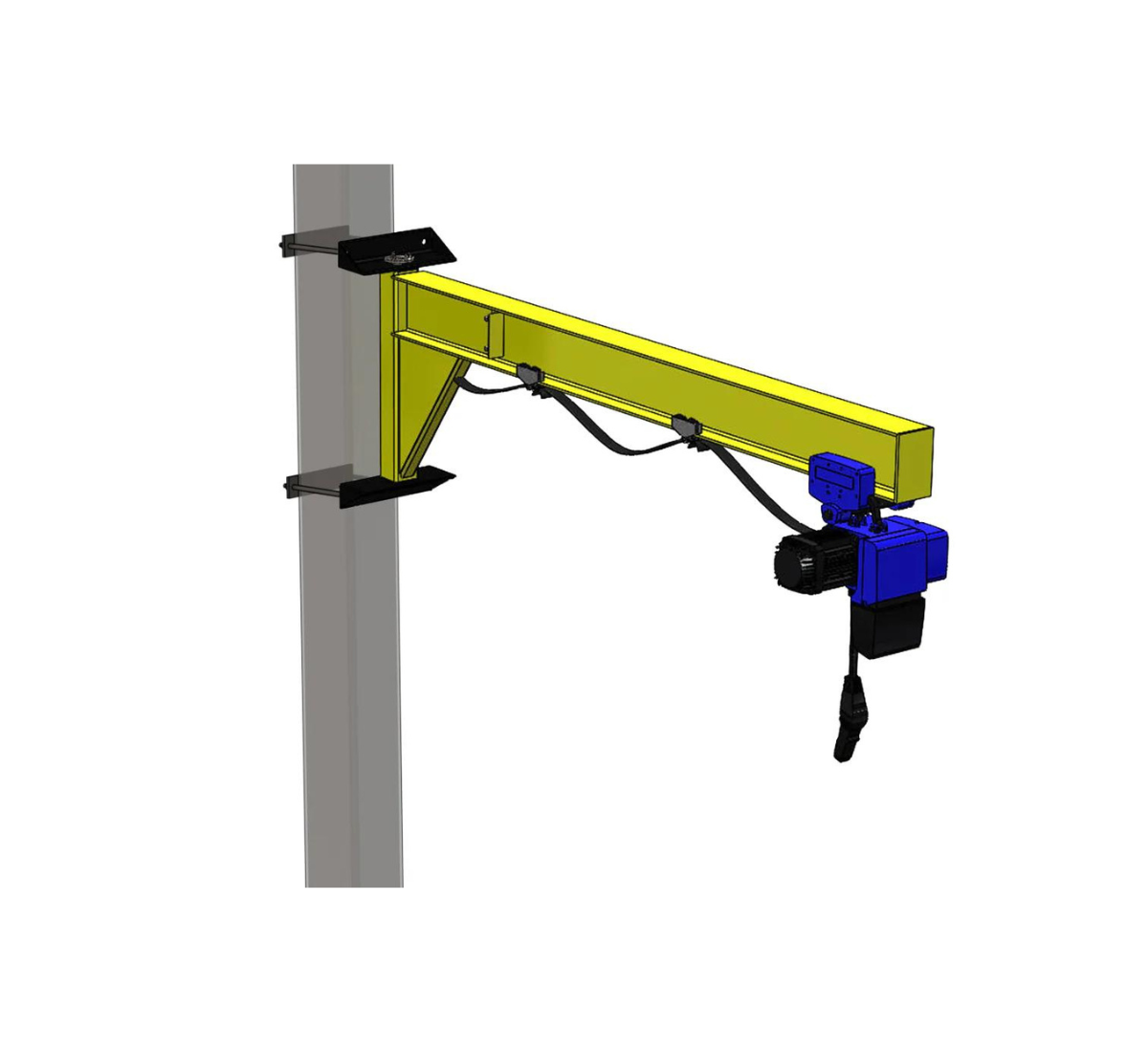

Clamp Around Column Under-Braced 1000kg I-Beam Jib Crane

From: £1,155.00
Made in the UK
  • SWL: 1000kg
  • Arm length: 2m to 6m
  • Powder-coated finish, painted yellow for high visibility
  • Under-Braced I-Beam Profile
  • Clamp Around Column design
  • Slewing arc 270° on standard arms
Final Configuration Price:
£1,155.00
Estimated time to dispatch
Estimated time to dispatch: 3-4 Weeks
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout



NOTE: During Black Friday Week delivery might take a little longer due to the increased demand of our Black Friday sale. We thank you for your patience and we'll do our very best to get you your items as soon as we can.



DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

LES is pleased to bring you our new range of Jib Cranes, which are becoming ever-so popular with our happy customers, offering shorter leads times and lower prices than our customers.

The latest in the range is our Clamp Around Column Under-Braced I-Beam Jib Crane models, available in a wide variety of lifting capacities (search i-beam in the search function for the complete range) from 80kg to 1000kg. Amongst this extensive range, we also offer arm lengths from 2m to 6m.

  Supplied as standard in a powder-coated yellow finish, ideal for high-visibility in indoor settings, I-Beam Jib Cranes are normally used when powered travel is required along the length of the arm. Under-Braced variations are braced below the arm onto the underside of an I-Beam, offering the lowest headroom, ideal for use in areas where headroom is limited.

Our range of Under-Braced I-Beam Jib Cranes are assembled with a super-smooth and reliable running integrated push trolley designed to accommodate a hoist, vacuum lifter or tool balancer – just hook or shackle into place and you’re away.

DID YOU KNOW! To make your life as easy as possible, LES can arrange installation of your chosen jib crane, anywhere in the UK, in any environment. Simply contact us with your required jib crane set up and we’ll quote you a price to get you up and running. Call 01384 567430

To make the selection process as easy and faultless as possible, we are now offering a suitable electric or manual chain hoist as an option. We’ve done the calculations for you, and we’re positive you’ll be happy with our choice.

If you opt for the electric chain hoist, you will be receiving a Yale CPV – a best-in-class motorised 400v three-phase chain hoist with ‘dual speed’ renowned for its quality, durability and aesthetically pleasing appearance.

LES can also offer systems with a lifting capability of up to 5T with larger arms upon request. Why not contact us today with your enquiry.

By selecting the Manual Hoist option, you will be kitted out with a Yale VSIII Hand Chain Hoist -  new and improved to help prevent tilting or jamming, leading to smooth running. EN818-7 rated, this hoist is manufactured with high-quality bearings, gearbox and load chain sheave to guarantee reliable, efficient, and safe operation.

In addition, as a further option, we are offering the accompanying hoist electric set-up, once again providing you with peace of mind that you’re getting a kit that is perfectly suited to work efficiently when erected.

But don’t forget that you can also choose a hoist of your own, why not browse our range online, or contact our expert sales team to discuss your options.

YOUR JIB CRANE SELECTION CHECKLIST

  • Identify the lifting capacity, arm length, and overall height of your jib crane
  • Selecting your Chain Hoist Option – No, Yes – electric, or Yes - manual
  • An integrated push trolley is fitted as standard, so there’s no need to add this as an extra
  • Add to Basket

How easy is that, and don’t forget, if you have any questions, drop us a line and we’ll give you the answers.

What's included in your purchase?

1 x Jib Crane: specified as above

1 x Hoist (electric, manual or no hoist): by choosing any hoist this includes a push-travel manual beam trolley for I-beam jibs, whilst over-braced channel profile jibs feature an integrated trolley eye for improved traverse

1 x Electrical power feed system (festoon system): this is only required if you purchase an electric chain hoist with your jib crane, if you choose a manual hoist you can exclude this

PLEASE NOTE: PRICES SUBJECT TO CHANGE – These prices are accurate as of 11/05/2022 but due to the global steel market may fluctuate at any given time. We will continue to update these prices as when advised and aim to maintain accurate pricing. Please don’t hesitate to contact our Sales Team for more information & quotations.

  • SWL: 1000kg
  • Arm length: 2m to 6m
  • Powder-coated finish, painted yellow for high visibility
  • Under-Braced I-Beam Profile
  • Clamp Around Column design
  • Slewing arc 270° on standard arms
