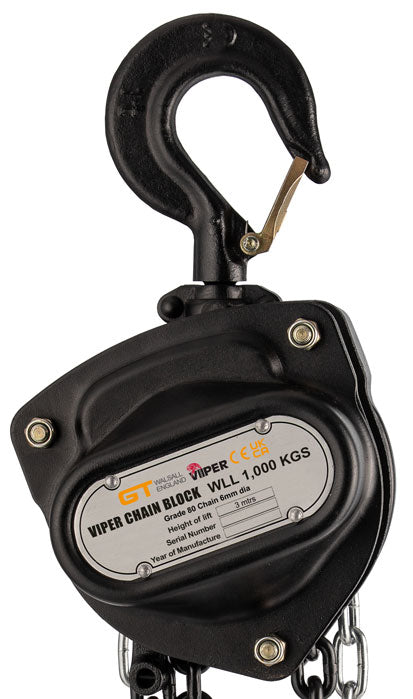

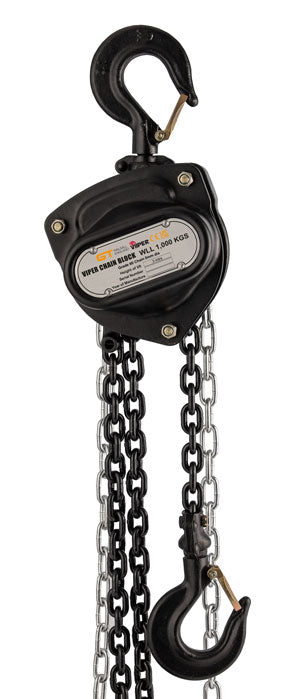

Manufactured from high-performance materials giving the GT Viper Chain Block a strong and robust construction providing exceptional durability and functionality. Featuring Zinc plated grade 80 calibrated load chain and Zinc plated hand chain with every block. The Viper Chain Block comes in a matte black finish.
- Matte black finish
- Sealed bearings in each unit providing superior protection and complete repair flexibility
- Various heights of lift available
- Heavy-duty cast iron safety catches- long-lasting
- Chain Guide Protector
- 500-30,000kg Capacity
Datasheets

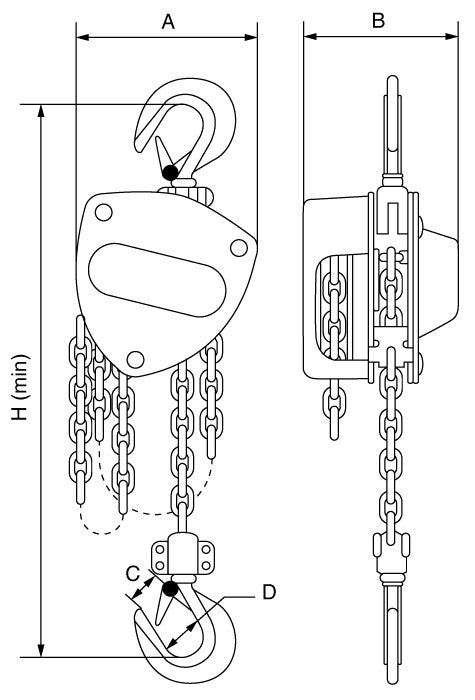

| Product Code |
Capacity (kgs) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
H (mm) |
|---|---|---|---|---|---|---|
| TA0101 | 500 | 136 | 126.5 | 25.5 | 36 | 266 |
| TA0102 | 1,000 | 156 | 143 | 28 | 40 | 324 |
| TA0103 | 1,500 | 182 | 148 | 38 | 52 | 392 |
| TA0104 | 2,000 | 198 | 152 | 38 | 52 | 407 |
| TA0105 | 3,000 | 214 | 156 | 32 | 60 | 465 |
| TA0106 | 5,000 | 266 | 181 | 50 | 68 | 636 |
| TA0107 | 10,000 | 365 | 181 | 57 | 85 | 798 |
| TA0108 | 20,000 | 630 | 192 | 84 | 106 | 890 |
| TA0109 | 30,000 | 670 | 330 | 84 | 106 | 1000 |
|
Capacity (kgs) |
Effort required to lift max load (N) |
Load Chain Diameter (mm) |
Falls of Load Chain |
Weight (3m Height of Lift) (kgs) |
|---|---|---|---|---|
| 500 | 210 | 6 | 1 | 7 |
| 1,000 | 260 | 6 | 1 | 10.5 |
| 1,500 | 265 | 7.1 | 1 | 17 |
| 2,000 | 272 | 8 | 1 | 18 |
| 3,000 | 280 | 7.1 | 2 | 21 |
| 5,000 | 358 | 10 | 2 | 42 |
| 10,000 | 370 | 10 | 4 | 72.6 |
| 20,000 | 370 x 2 | 10 | 8 | 162 |
| 30,000 | 370 x 2 | 10 | 12 | 228 |
