In stock
SKU: GEO000001

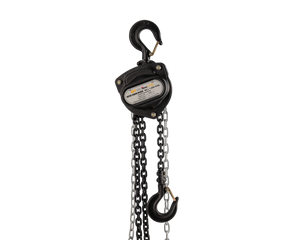

George Taylor GT Viper Chain Block

From: £89.00
  • Buy Online up to 20,000kg capacity (Up to 30,000kg on request)
  • Heavy-duty safety catches
  • Matte black finish
  • Black load chain
  • Zinc-plated hand chain
  • 3-10m Height of Lift (Larger offline).
Final Configuration Price:
From: £89.00
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Manufactured from high-performance materials giving the GT Viper Chain Block a strong and robust construction providing exceptional durability and functionality. Featuring Zinc plated grade 80 calibrated load chain and Zinc plated hand chain with every block. The Viper Chain Block comes in a matte black finish.



  • Matte black finish
  • Sealed bearings in each unit providing superior protection and complete repair flexibility
  • Various heights of lift available
  • Heavy-duty cast iron safety catches- long-lasting
  • Chain Guide Protector
  • 500-30,000kg Capacity



  • Buy Online up to 20,000kg capacity (Up to 30,000kg on request)
  • Heavy-duty safety catches
  • Matte black finish
  • Black load chain
  • Zinc-plated hand chain
  • 3-10m Height of Lift (Larger offline).

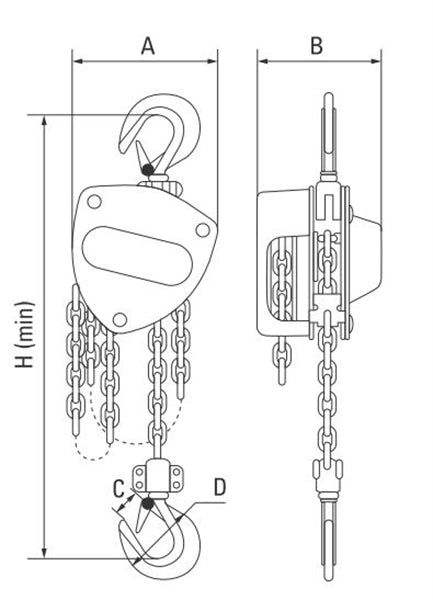

Product Code

Capacity

(kgs)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

H

(mm)

TA0101 500 136 126.5 25.5 36 266
TA0102 1,000 156 143 28 40 324
TA0103 1,500 182 148 38 52 392
TA0104 2,000 198 152 38 52 407
TA0105 3,000 214 156 32 60 465
TA0106 5,000 266 181 50 68 636
TA0107 10,000 365 181 57 85 798
TA0108 20,000 630 192 84 106 890
TA0109 30,000 670 330 84 106 1000



Capacity

(kgs)

Effort required to lift max load

(N)

Load Chain Diameter

(mm)

Falls of Load Chain

Weight (3m Height of Lift)

(kgs)

500 210 6 1 7
1,000 260 6 1 10.5
1,500 265 7.1 1 17
2,000 272 8 1 18
3,000 280 7.1 2 21
5,000 358 10 2 42
10,000 370 10 4 72.6
20,000 370 x 2 10 8 162
30,000 370 x 2 10 12 228
