In stock
SKU: AWI000001

AWI Stainless Steel Master Link

From: £12.31
  • Up to 12,000kg capacity
  • Electrically welded for a clean finish
Final Configuration Price:
From: £12.31
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

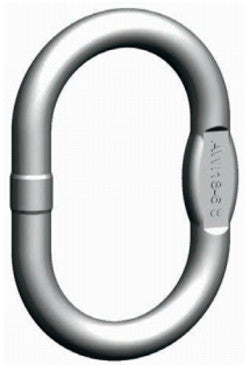

The AWI Stainless Steel Master Link is made from high-grade stainless steel and yields a result that outshines the rest. This stainless master link is electrically welded for a clean finish, stamped and suitable for both I- and II-legged chains and wire rope slings (similar to DIN 3088- 1989).



The master link may also be used in VWI four-legged assemblies and as an end link. Its dimensions are similar to DIN 5688-1 and it is tested at 100 % of its load capacity. A particular bonus is the higher resistance to acids and caustics compared to the standard loading rings G8, G10 and G12. The stamp makes the master link clearly identifiable.



The master link also bears the CE mark. The AWI Master link is particularly suited for use in water and wastewater applications. It can also be used in connection with chemicals and food products; however, restrictions will apply.

  • Up to 12,000kg capacity
  • Electrically welded for a clean finish

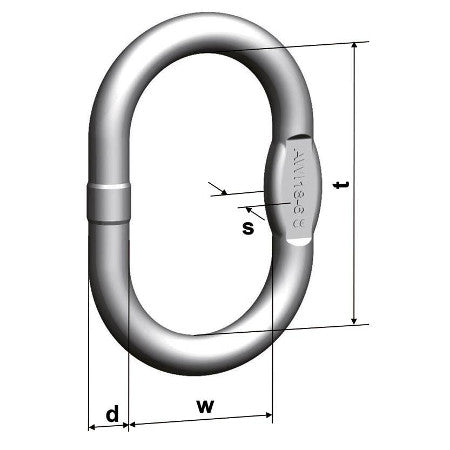

SKU Working Load Limit (kg) Usable Up To Sling Hooks Following DIN 15401 d (mm) t (mm) w (mm) s (mm) Weight (kg)
AWI-8-6 560 0.5 8 60 35 0.08
AWI-10-6 850 1.6 10 80 50 - 0.14
AWI-13-6 1600 2.5 13 110 60 10 0.34
AWI-16-6 2600 2.5 16 110 60 14 0.53
AWI-18-6 3500 5 18 135 75 14 0.92
AWI-22-6 6300 6 23 160 90 17 1.60
AWI-26-6 8900 8 27 180 100 20 2.46
AWI-32-6 13,200 10 32 200 110 26 4.14
AWI-36-6 14,700 16 36 260 140 29 6.22
AWI-45 12,000   45 340 180   12.82
