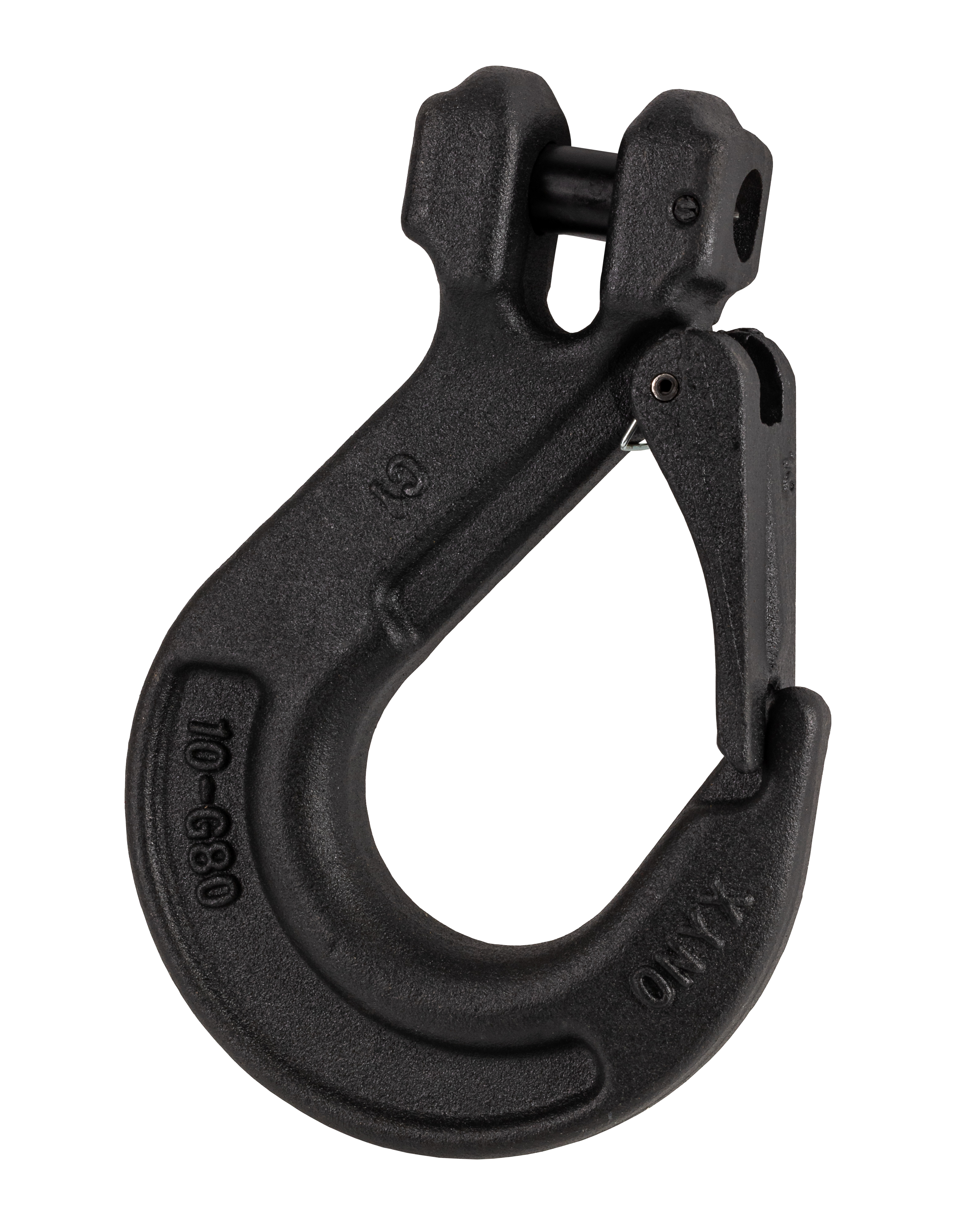

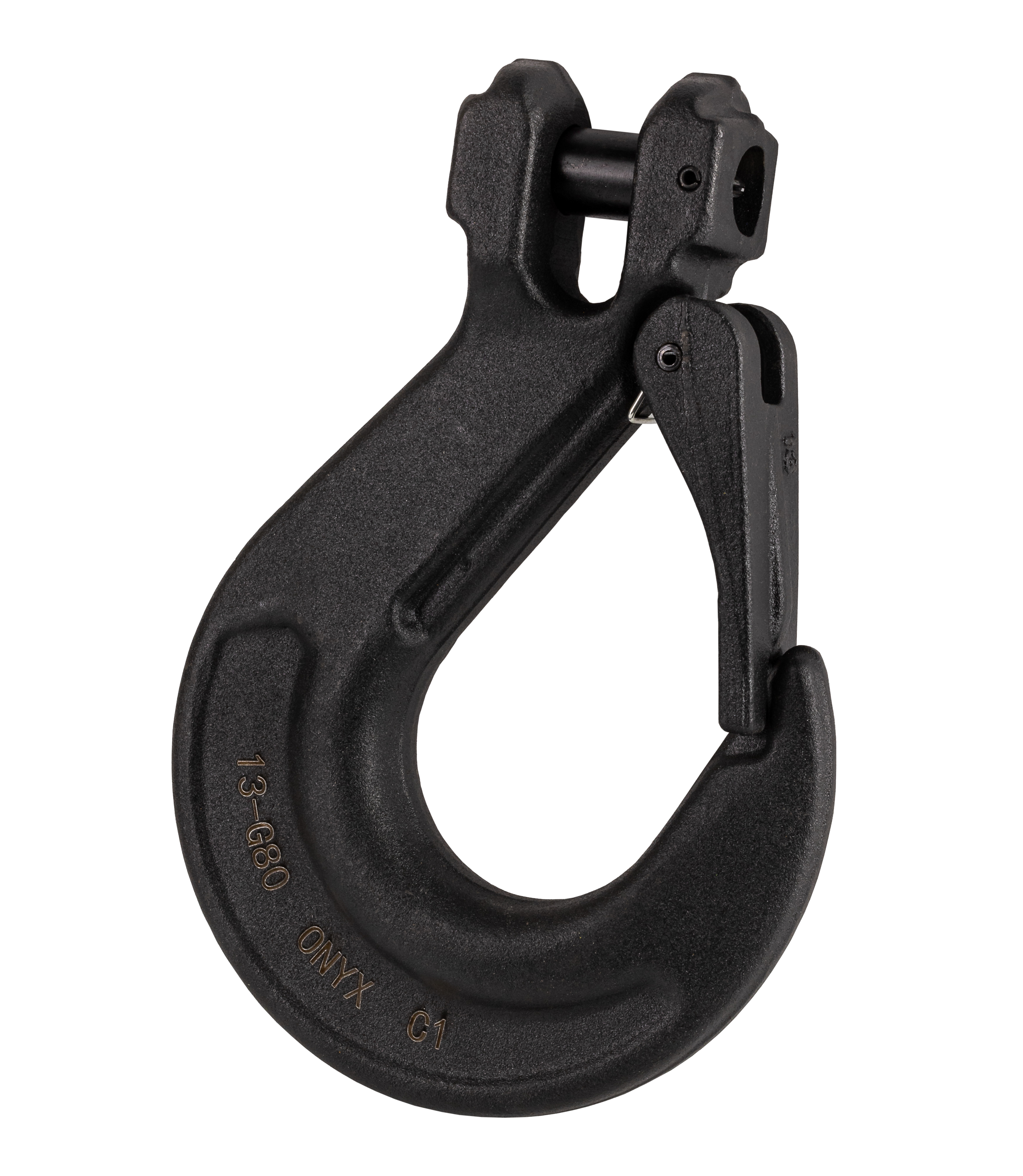

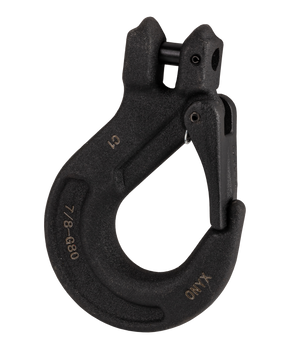

Improve your entertainment rigging repertoire with this Clevis Sling Hook with Safety Catch from George Taylor’s Onyx range.
Available in working load limits from 2t to 5.3t, suiting chain diameters from 7mm to 13mm, this Clevis Sling Hook has been manufactured from grade 80 alloy steel (quenched and tempered) and has been given a matte black painted finish, making it ideal for entertainment and stage settings operating with temperatures from -20°C up to +200°C.
Fully certified and tested, these Clevis Sling Hooks with Safety Catch have a minimum breaking load equals to 4 times the stated working load limit, with each unit stamped with the Onyx markings, material grade, size, product ID, and traceability code.
DIMENSIONS
| Product Code |
Chain Dia. (mm) |
A (mm) |
B (mm) |
E (mm) |
F (mm) |
H (mm) |
K (mm) |
L (mm) |
M (mm) |
N (mm) |
Ø (mm) |
| OXCSH8 | 7/8 | 9.5 | 36.6 | 22 | 84 | 25 | 86 | 128 | 18 | 12 | 25 |
| OXCSH10 | 10 | 12.5 | 49 | 30 | 103 | 31 | 104 | 158 | 23 | 16 | 30 |
| OXCSH13 | 13 | 16.5 | 56.5 | 37.5 | 132 | 42.5 | 128 | 198.3 | 27.5 | 15 | 35 |
TECHNICAL DATA
| Product Code |
Chain Dia. (mm) |
W.L.L (t) |
M.P.L (t) |
M.B.L (t) |
Weight (kgs) |
| OXCSH8 | 7/8 | 2 | 4 | 8 | 0.53 |
| OXCSH10 | 10 | 3.15 | 6.3 | 12.6 | 0.98 |
| OXCSH13 | 13 | 5.3 | 10.6 | 21.2 | 1.81 |
