SKU: AER000001

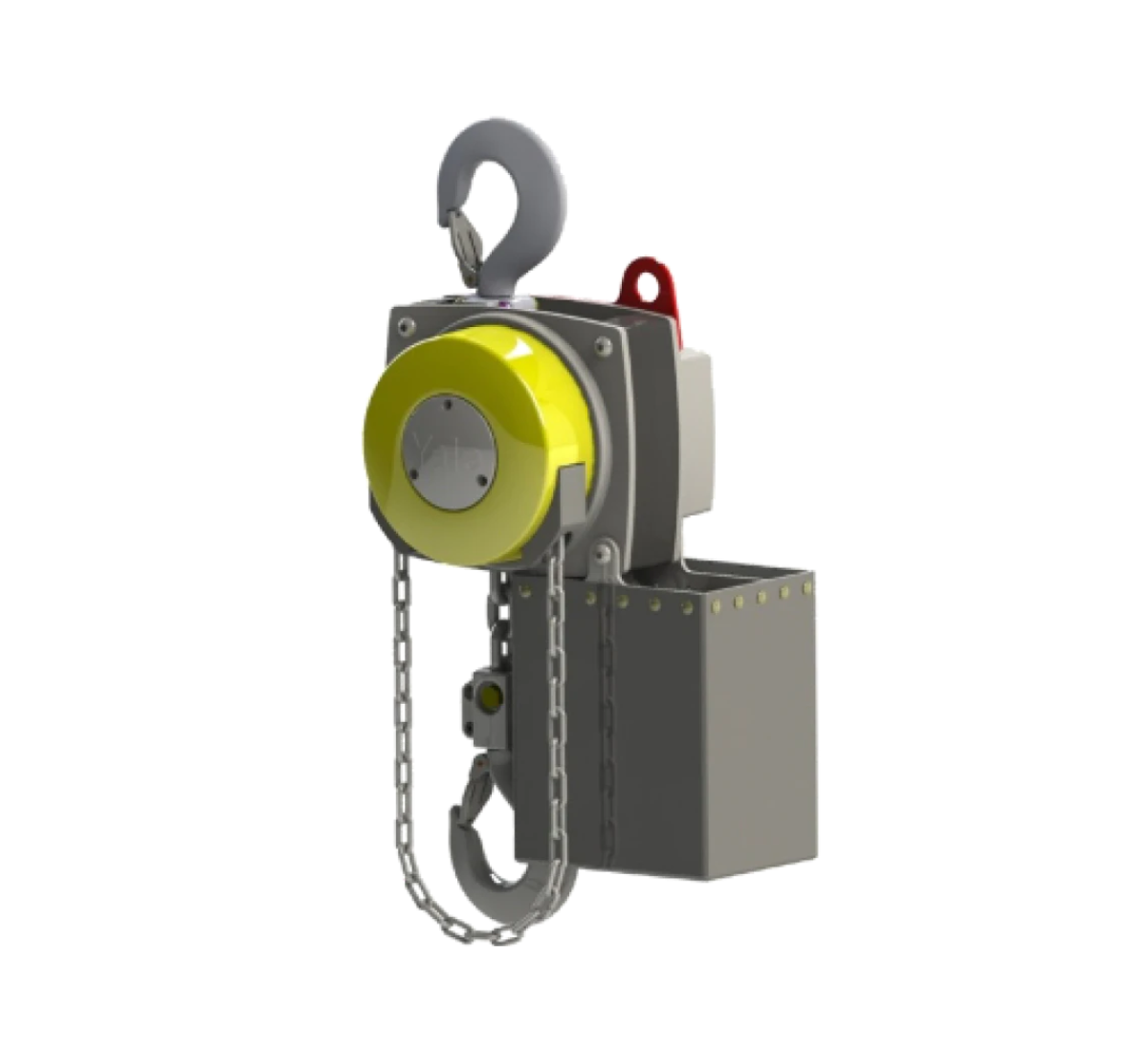

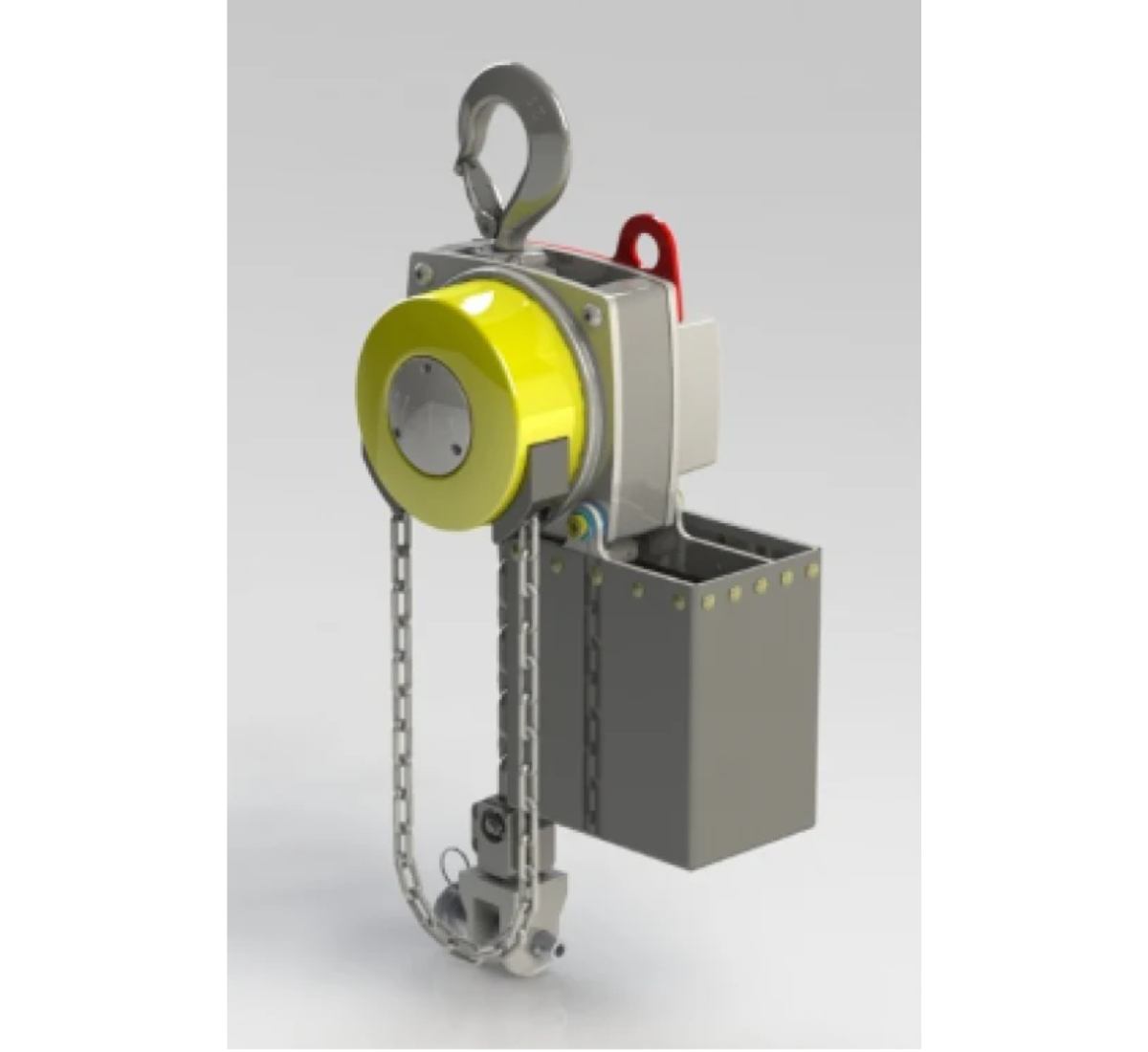

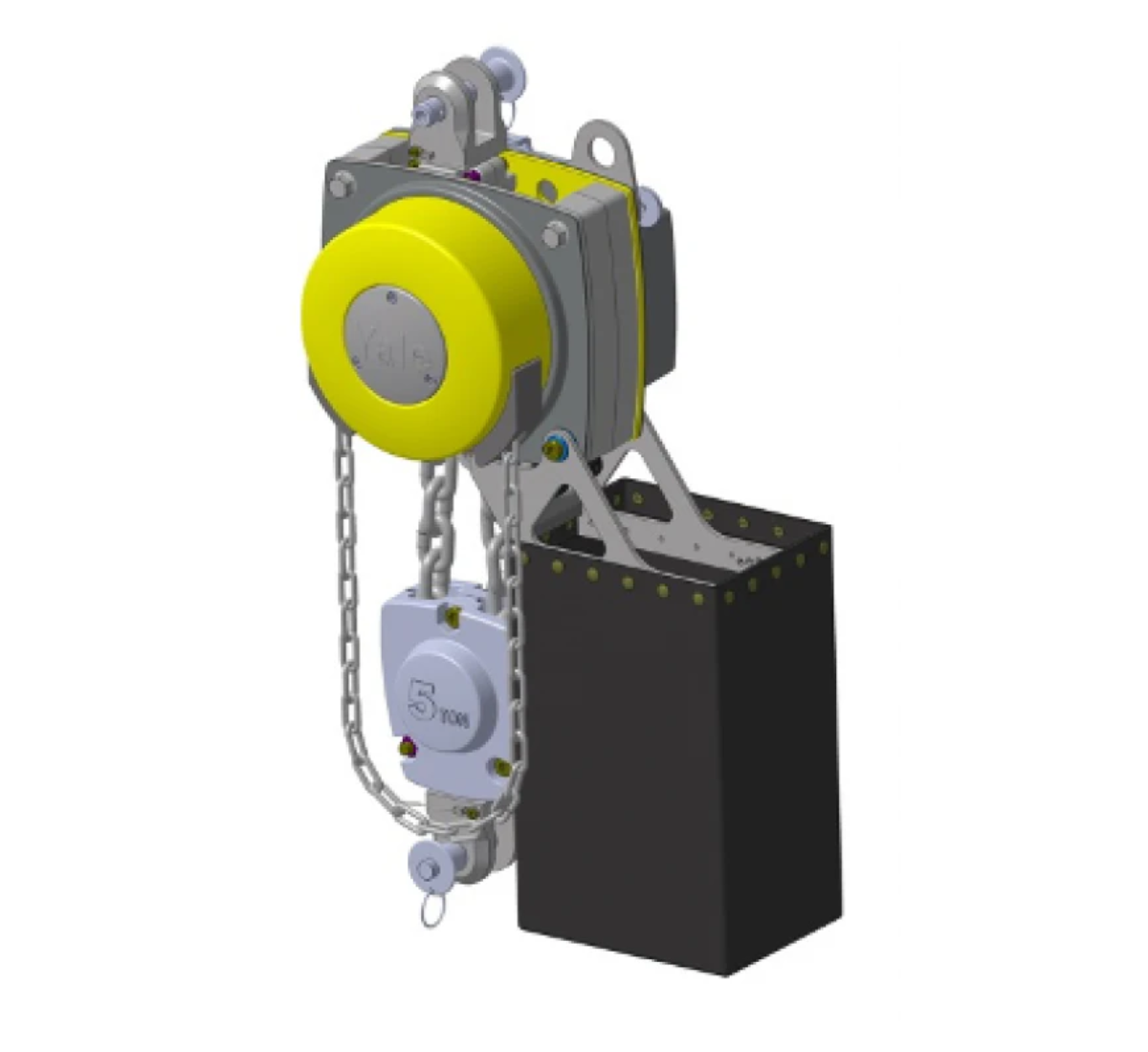

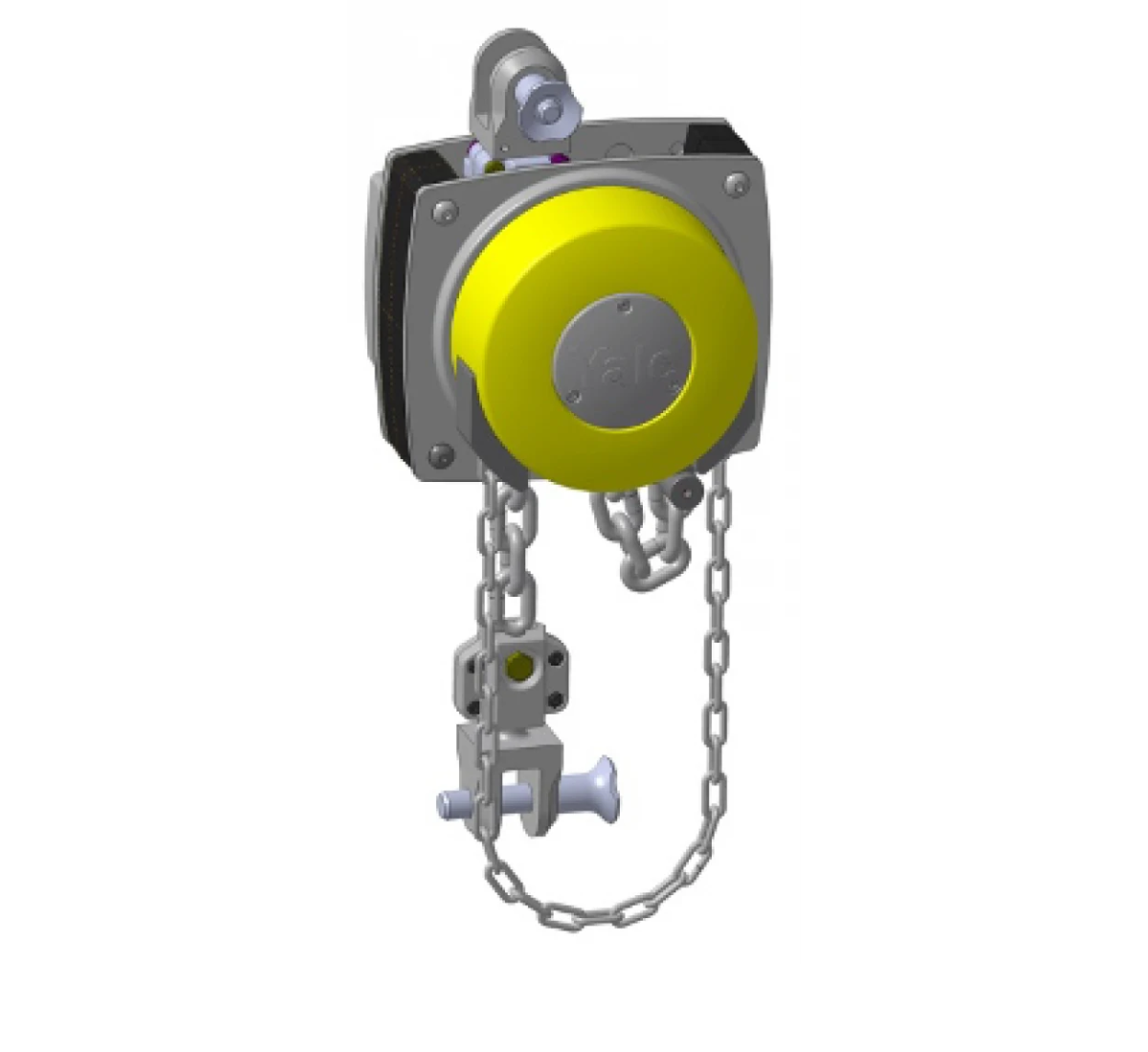

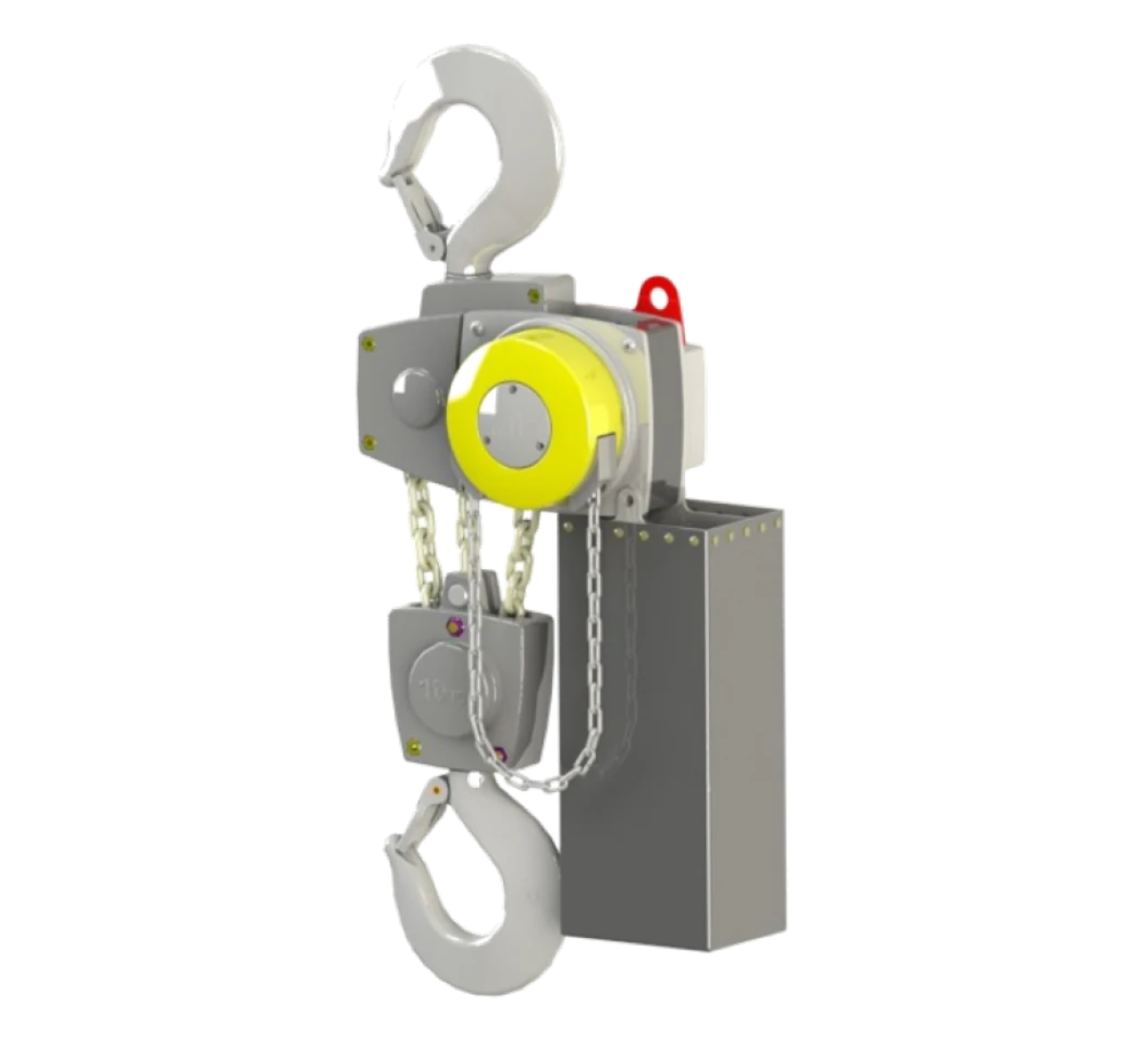

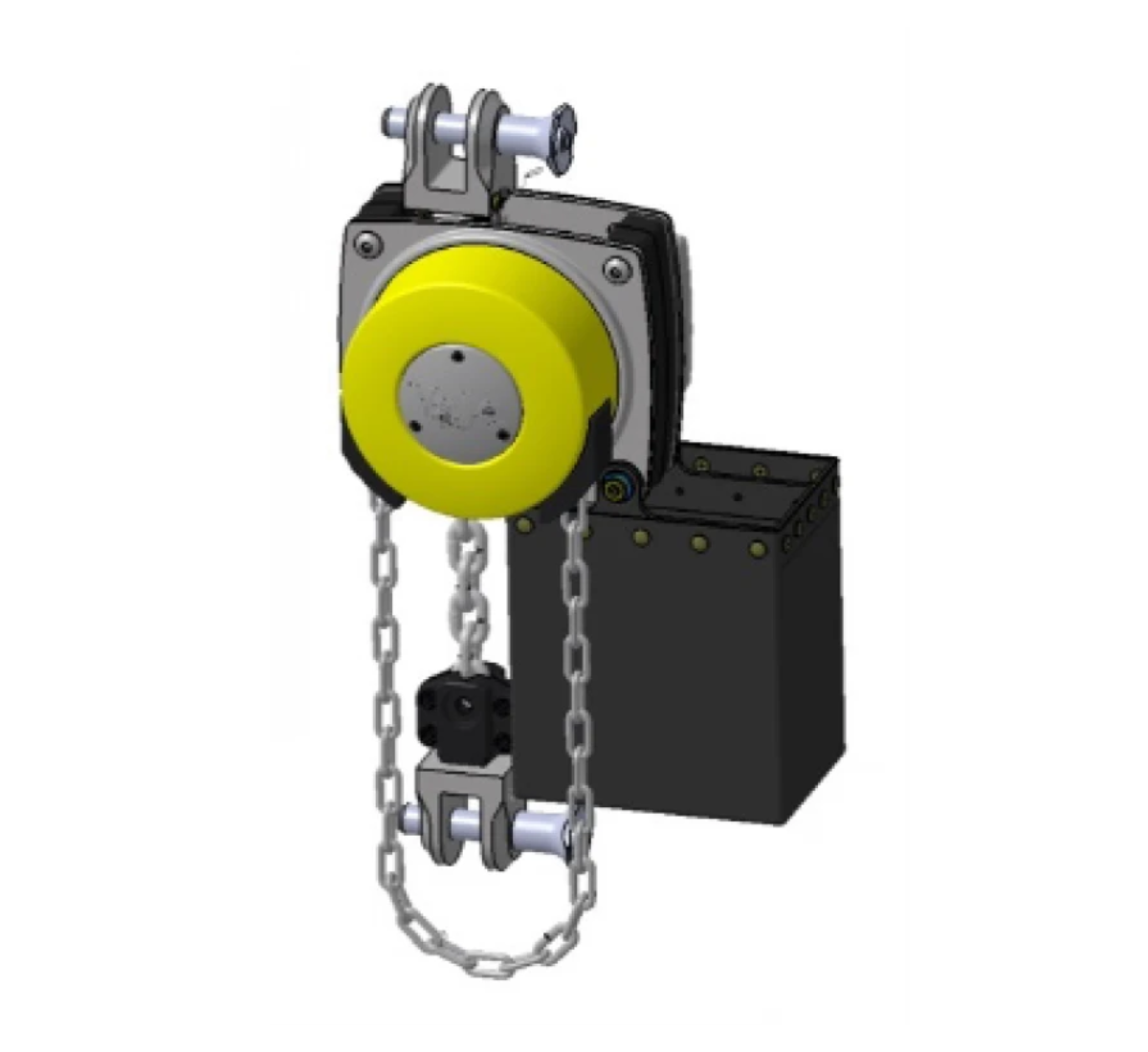

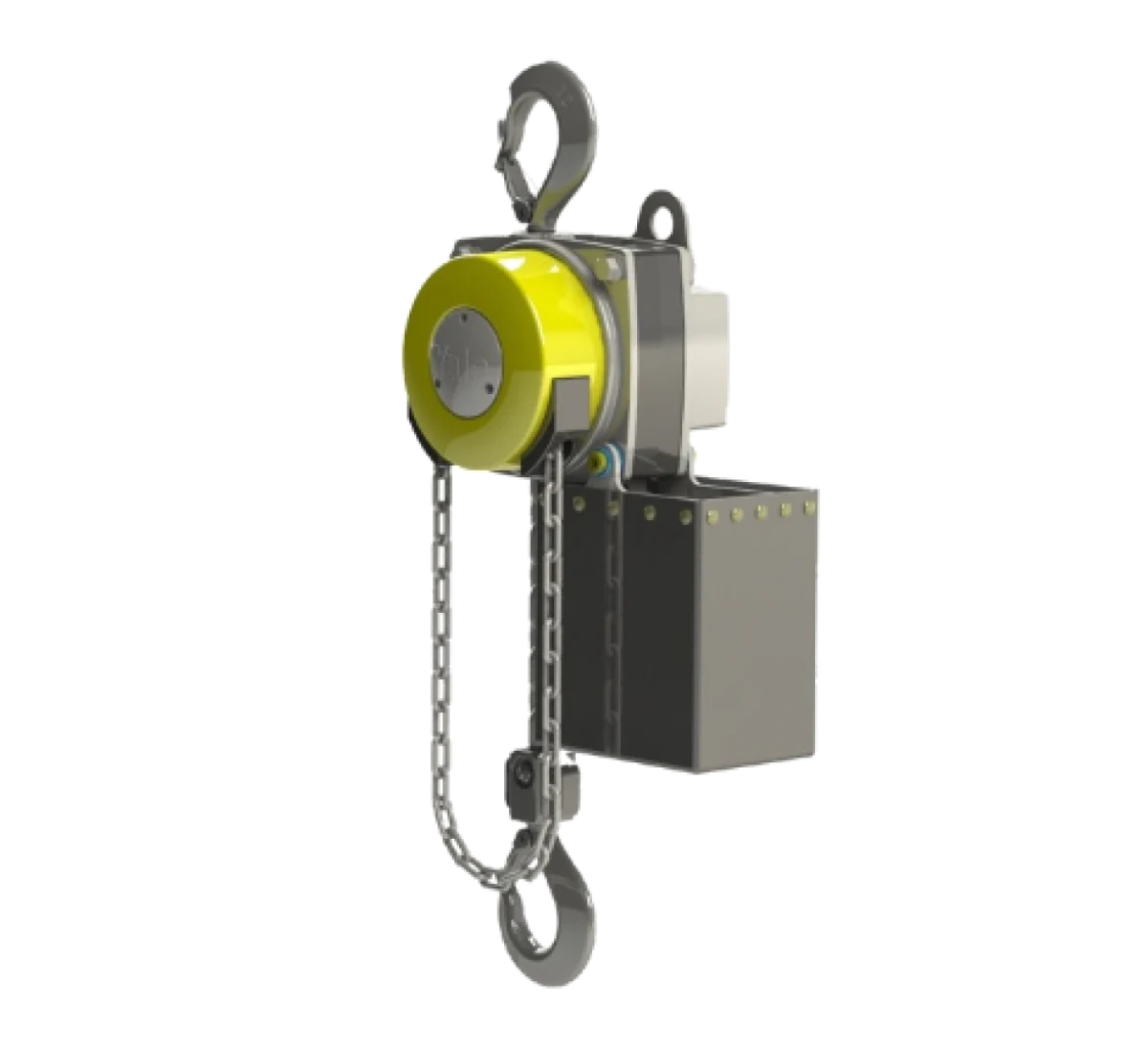

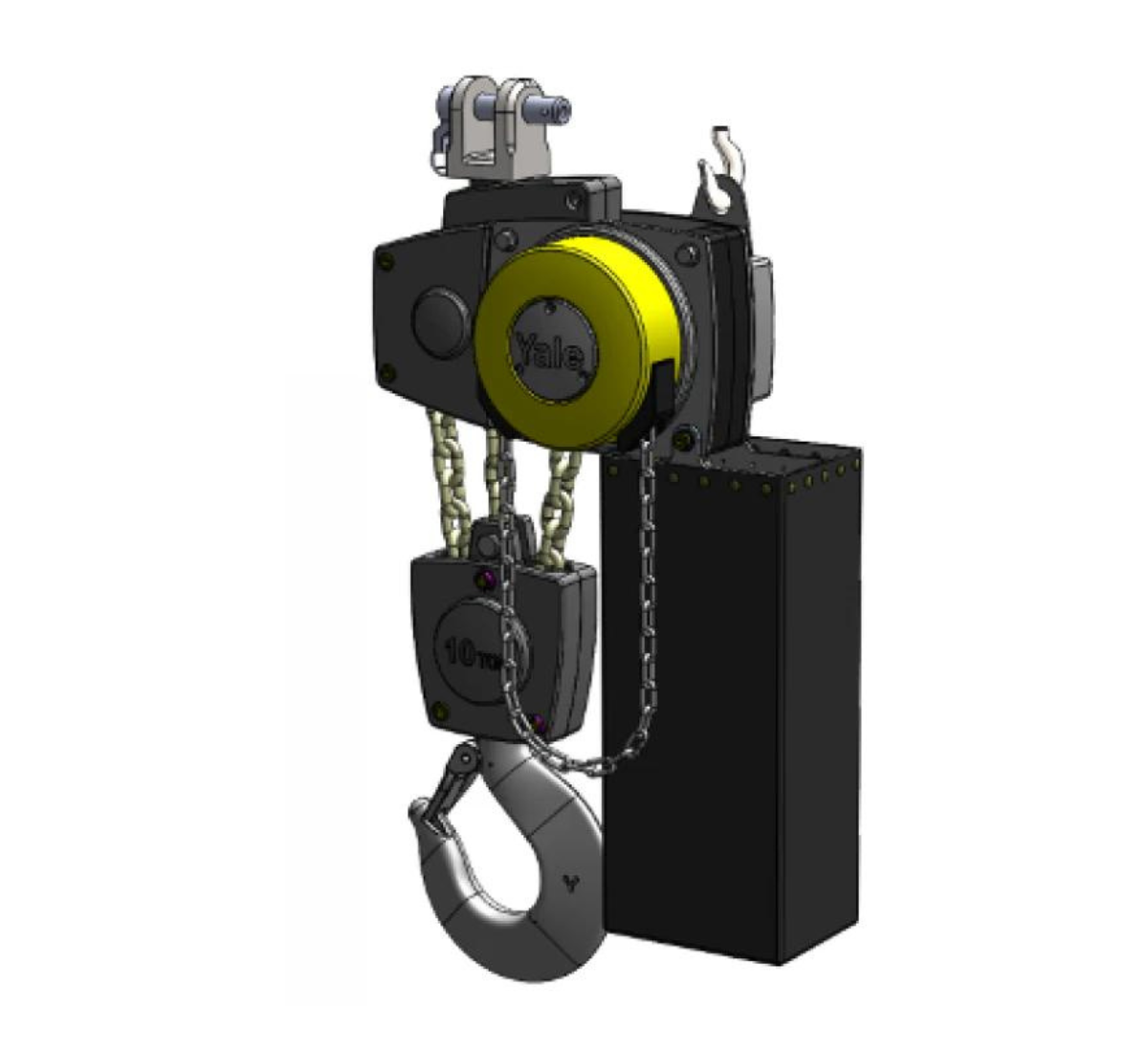

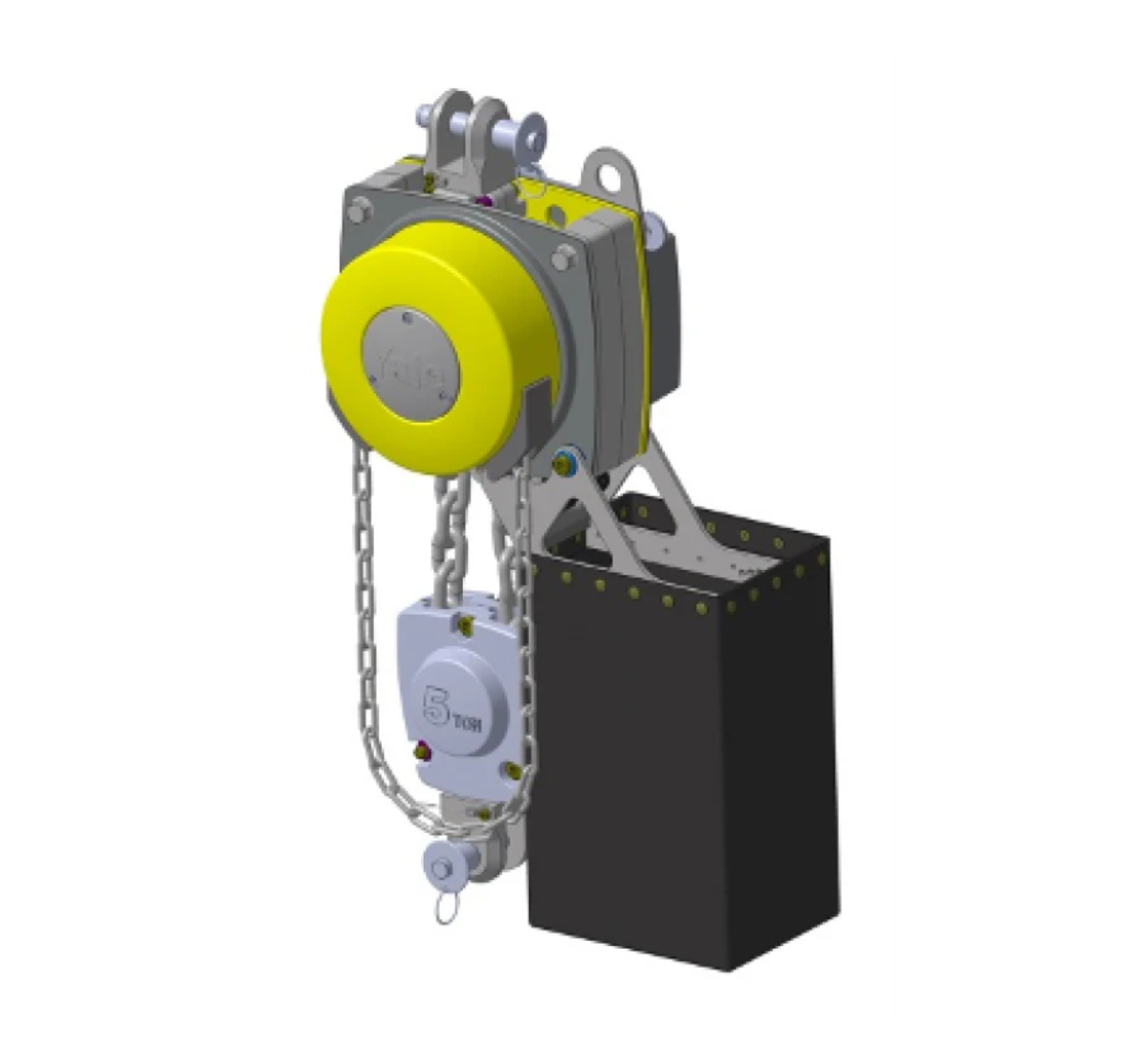

Aero Hoist (Yalelift360/D85/C85)

From: £1,873.83
  • Built in France
  • Used on bootstrap kits
  • Made to order
  • Modifications available upon request
  • Widely recognised in the Aerospace industry
Final Configuration Price:
From: £1,873.83
Estimated time to dispatch
Estimated time to dispatch: 2-3 Weeks
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

WHAT ARE THEY?

Columbus Mckinnon (Yale) worked with Airbus, the worlds largest aircraft manufacturer who were looking for a solution to safely stabilise aircraft engines which allows engineers to maintain and build said engines. While working closely with aerospace engineers they came to modify their already popular Yale 360 chain hoist to suit aircraft bootstrap kits.



Aerospace hoists - an industry necessity:

The aerospace industry now has a unified product line that will suit the bootstrap kit, no more spending hours working with procurement companies comparing dimensions, product reliability and suitability. If it's good enough for Airbus, it's good enough for all other aerospace engineers.



Why can't I just use a normal manual chain hoist?

"Aerospace hoists cost money because they save money"

Theoretically, you could use a normal hoist. However, why would you use a £100 hoist that's not foolproof & specific to lifting a multi-million pound engine? It just doesn't make sense. Yale's hoists have been specially redesigned to do one thing and one thing only. Tried and tested by world-leading aeronautical engineers, these hoists are built for correct application which demand for precision, reliability and where mistakes are not an option.

WARRANTY, QUALITY & CERTIFICATION

All Yale aerohoist units are complete with a 12-month warranty, we stand by the quality of Yale products and each product has its own unique branded design which features the above-known differences, and enhancements. Each unit is fully CE marked and complete with an individual serial number and EU Declaration of Conformity certificate to

the Machinery Directive 2006/42/EC.



AIRCRAFTS THAT USE YALE BOOTSTRAP KITS:

  • A3380 Rolls-Royce, Engine-Alliance
  • A318 Pratt & Whitney
  • A350 Rolls-Royce
  • A330 Rolls-Royce, Pratt & Whitney
  • A330 GE
  • A340 500/600
  • A320/A319/A321 A318 CFM
  • A340 Basic
  • A320
  • A320 Neo CFM
  • A320 neo PW
  • A330 neo


Material Number Aero References Type of product Type of AIRCRAFT Position on Boostrap
N01541629 AEROD85MH-6T3,5M D85 6T HOL 3.5m A330 et A340 500/600 FWD / REAR
N04700126 AEROYL10TMH-3B6M YALELIFT360 10T  HOL 6m  A380 Rolls-Royce et A380 Engine-Alliance FWD
N04700114 AEROYL2T-1B6M-SC YALELIFT360 2T 1 HOL 6m  A380 Rolls-Royce et A380 Engine-Alliance REAR
N04700127 AEROYL3T-1B3M YALELIFT360 3T 1 HOL 3m  A318 Pratt & Whitney
N01541631 AEROC85-3T3M C85 3T HOL 3m  A320/A319/A321/A318 CFM FWD / REAR
G01541632 AEROC85-3T4M C85 3T HOL 4m  A340 Basic FWD / REAR
192059298 AEROYL5TMM-2B4M-MH0° YALELIFT360 5T 2  HOL 4m  A350 Rolls-Royce FWD
192040463 AEROYL5TMM-MH90°-2B4M YALELIFT360 5T 2  HOL 4m  A330 NEO
192032353 AEROYL5TMM-2B2M-MH0° YALELIFT360 5T 2  HOL 2m  A320 Neo motor PW
192053902 AEROYL5TMM-2B2M-MH90° YALELIFT360 5T 2  HOL 2m A320 Neo motor CFM
N04700115 AEROYL2TML-1B4M YALELIFT360 2T 1 HOL 4m  A350 Rolls-Royce REAR
N04700131 AEROYL3TMM-1B4M YALELIFT360 3T 1 HOL 4m  A330 NEO
N04700132 AEROYL2TMM-1B2M YALELIFT360 2T 1 HOL 2m  A320 Neo
192056265 AEROD85-3T3M D853t HOL 3m A320



Key to identifying Hoist and position on the bootstrap kit:



  • MM - Top and bottom  end fitting / chape haute et basse
  • MH - Top end fitting only / chape haute seulement
  • ML - Bottom end fitting only / chape basse seulement
  • -1B - 1 fall / 1 brin de chaine
  • -2B - 2 falls / Mouflage 2 brins
  • -3B - 3 falls / Mouflage 3 brins
  • -P - External protection of hand chain / Protection chaine de manœuvre
  • xM - HOL x m / Hauteur de levée de x mètres
  • -B - Top end fitting block rotation / Blocage rotation chape haute
  • -SC - Slip Clutch / Limiteur de couple



WHY YALE?


Yale have over 140 years of experaince when it comes to hoisting. The most popular manual hoists (Pullift & Yalelift360) has had millions of Euro's invested in the design and are now the most recognised hoists for inovation in the industry. However, they didn't stop there. Yale (Columbus Mckinnon) went on redesign the hoist to suit the Aerospace market. The Yalelift360 allows you to work from any direction, this aids the user massively when working in the confined space under the jet engine hood. Constant review and testing of the Aero Hoists each year with aerospace engineer focus groups keeps allowing yale to improve the reliability & precision for the assembly and disassembly of aircraft engines.


  • Built in France
  • Used on bootstrap kits
  • Made to order
  • Modifications available upon request
  • Widely recognised in the Aerospace industry
