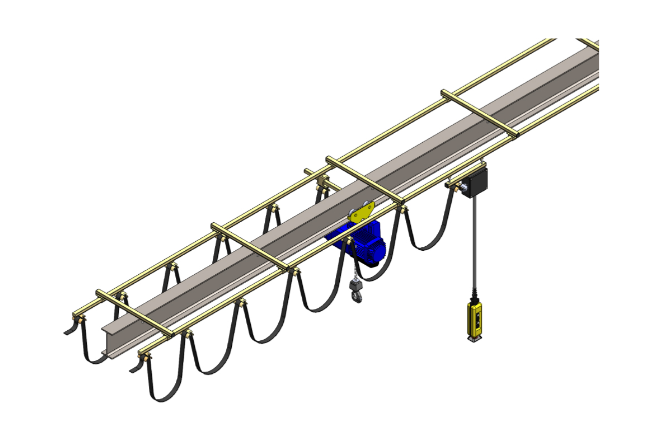

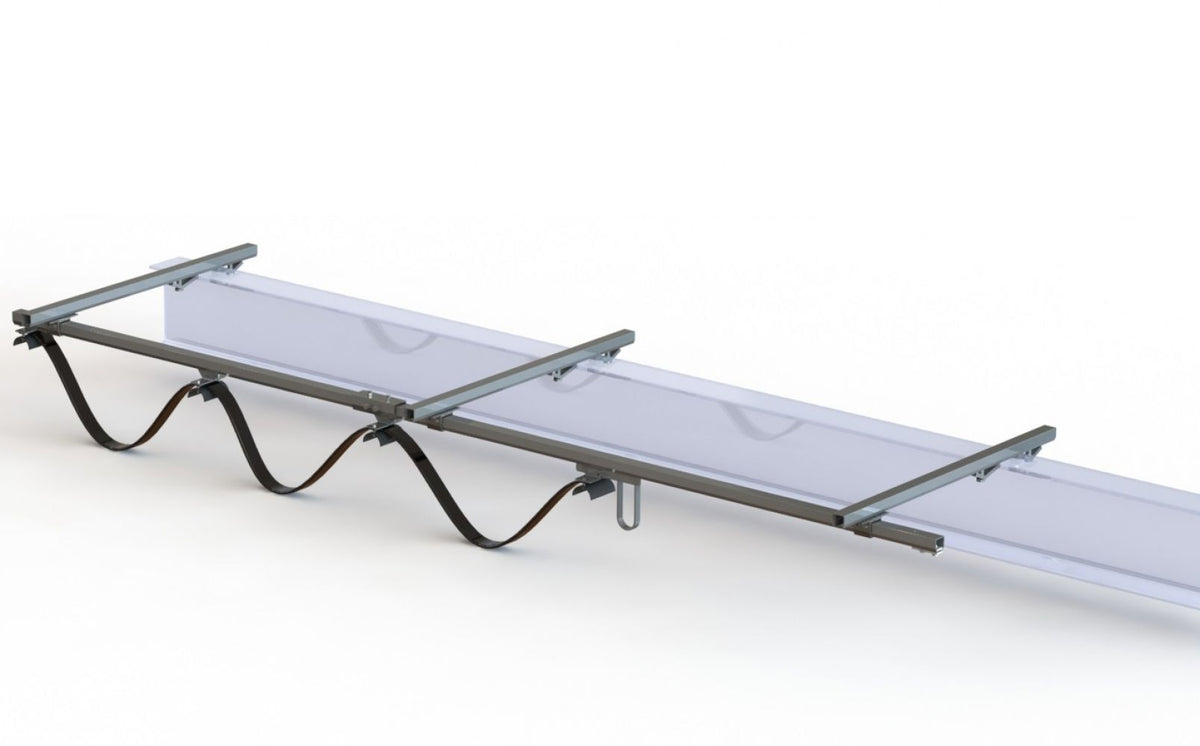

Festoon Systems provide an easy and cost-effective cable management and power supply solution for hoists, trolleys, and other machinery. The lightweight design makes the installation of the kit an easy task while quality construction gives each trolley and rail section a robust smooth functionality.
These power supply systems are supplied with flat form 4Core power cable, which is suitable for most jib cranes, electric hoists and lightweight crane systems. Adding this festoon system to your machinery massively reduces the hazard of low hanging power cables that you typically see on machinery without cable management supply systems. It also makes your machinery look more professional - and who doesn't want that!
Why Should You Use A Power Supply System?
- Super Easy Install
- Cost-effective alternative to a Bus Bar System, and much more safe than a wire festoon system.
- Maintenance free
- Collects the power supply, removing the risk of low hanging wires catching on moving equipment like forklifts.
- Safer and much stronger than a standard Catenary Wire Festoon Cable System.
We supply everything that is needed to get your crane or hoist up and running.
Below are three system types available - Supply System, Pendant System, and Power & Pendant System (see table below for what's included in each kit):
| Supply System (this product) | Pendant System | Power & Pendant System |
| Track, supplied in 3m lengths | Track, supplied in 3m lengths | Track, supplied in 3m lengths |
| Track Joints (where needed) | Track Joints (where needed) | Track Joints (where needed) |
| Support Arm with bracket (1 x every 1.5m) | Support Arm with bracket (1 x every 1.5m) | Support Arm with 2 brackets (1 x every 1.5m) |
| 1 x End Anchor/Clamp | 1 x End Anchor/Clamp | 2 x End Anchor/Clamp |
| Flat Cable Trolleys (1 x every 1.5m) | Flat Cable Trolleys (1 x every 1.5m) | Flat Cable Trolleys (1 x every 1.5m) |
| 1 x Towing Cable Trolley | 1 x Pendant Trolley c/w Terminal Box | 1 x Towing Calbe Trolley |
| 4core 2.5mm flat PVC cable | 12core 1.5mm flat PVC cable | 1 x Pendant Trolley c/w Terminal Box |
| 2 x PVC flat cable glands | 1 x PVC flat cable gland | 4core 2.5mm flat PVC cable |
| 1 x Track End Stop | 1 x Track End Stop | 2 x PVC flat cable glands |
| 23core 1.5mm flat PVC cable | ||
| 1 x PVC flat cable gland |
If you need a Pendant System or Power & Pendant System, please contact our sales team now.
NOTE: If you require a different type of Flat PVC Cable to the one that comes as standard, please contact our Sales Team, who can source one of the following:
- 4core 1.5mm
- 4core 2.5mm
- 4core 4mm
- 4core 6mm
- 4core 10mm
- 8core 1.5mm
- 8core 2.5mm
- 12core 1.5mm
- 12core 2.5mm
Each cable set is supplied at the kit length + 3m + 10%
| Model | Festoon Length | Flat Form Cable Length | Track Joints | Support Brackets | End Clamps | End Stops | Towing Cable Trolley | Track x 3m Length |
|
CRA000022 |
3 | 6 | 0 | 3 | 1 | 1 | 2 | 1 |
|
CRA000025 |
6 | 10 | 1 | 5 | 1 | 1 | 3 | 2 |
|
CRA000028 |
9 | 13 | 2 | 7 | 1 | 1 | 5 | 3 |
|
CRA000001 |
12 | 16 | 3 | 9 | 1 | 1 | 7 | 4 |
|
CRA000004 |
15 | 20 | 4 | 11 | 1 | 1 | 9 | 5 |
|
CRA000007 |
18 | 23 | 5 | 13 | 1 | 1 | 11 | 6 |
|
CRA000010 |
21 | 26 | 6 | 15 | 1 | 1 | 13 | 7 |
Technical Details
- 10kg maximum weight per trolley
- 750mm cable loop depth
- 1.5m between support brackets
- Brackets are 750mm long and clamp around the top flange of an I-beam (305mm max beam flange width)
