In stock
SKU: CAM000147

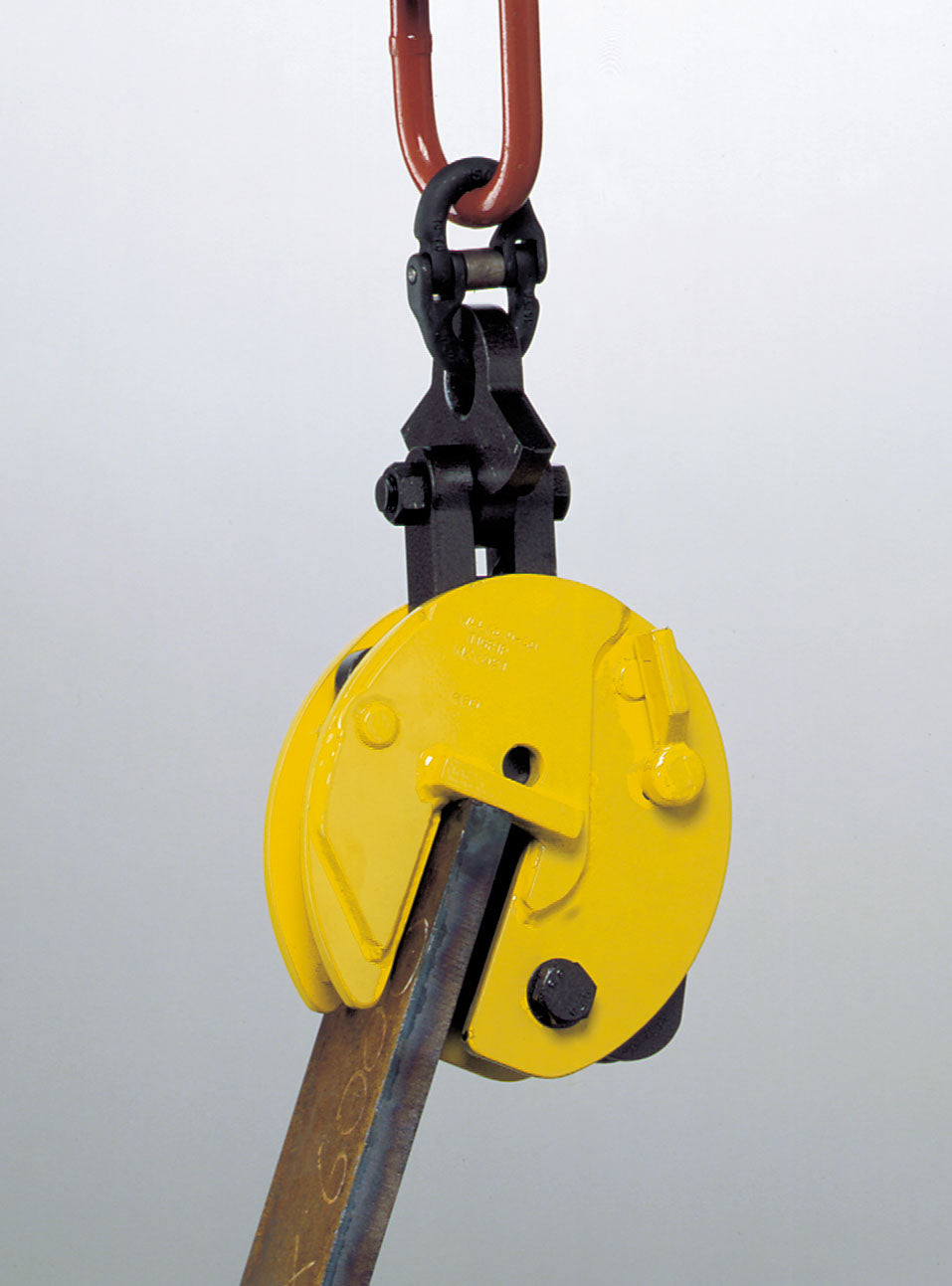

Camlok CX 'Hinged' Vertical Plate Clamps (Heavy Duty- Side Loading)

From: £518.55
Made in the UK
  • Heavy duty hinged vertical plate clamp
  • Working load limits up to 10,000kg
  • For side loading and turning through 90 degrees
Final Configuration Price:
From: £518.55
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The CX plate clamps share all the benefits of the CY clamps, but are specifically designed for heavier duty applications up to 10,000kg.

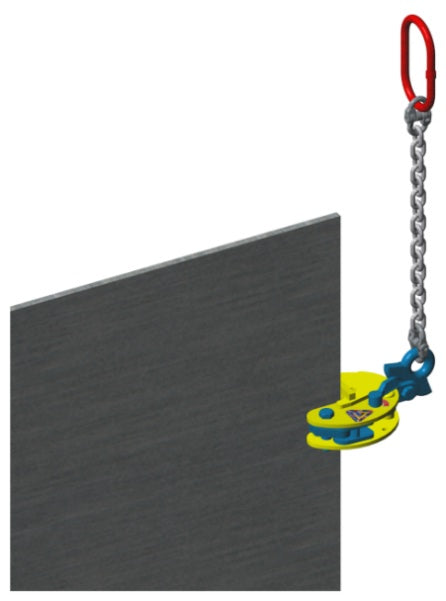

The other benefit that the CX clamps offer over the CY clamps is that vertically racked plates can be turned through 90 degrees (as shown in image 2) via a hinged suspension.

Hardness of plate surface must below HRC 30/Brinell 300.

Ideal for side loading, Heavy plate and sheet metal.

What sets the UNOplus-A Lever Hoist Apart?

  • Minimal effort required to operate the lever due to new and improved gearing
  • Incredibly light-weight
  • Steel hand wheel as standard (most economy hoists don't feature this!)
  • Automatic screw-and-disc type load brake with corrosion-protected components
  • Free chaining device as standard allows quick attachment of the load without having to crank the lever when not under load
  • Heavy-duty robust chain guide rollers eliminate jamming of the chain
  • Innovative bottom block features recessed bolt connections to avoid accidental damage
  • Drop forged suspension and load hook made from non-ageing high tensile steel
  • Full range of spare parts available- never have to actually dispose of your lever hoist!
  • Fully calibrated EN 818-7 Zinc plated Load Chain
  • Yale 12 months return to base warranty
  • Custom heights of lift on request (Chained to order in the UK)

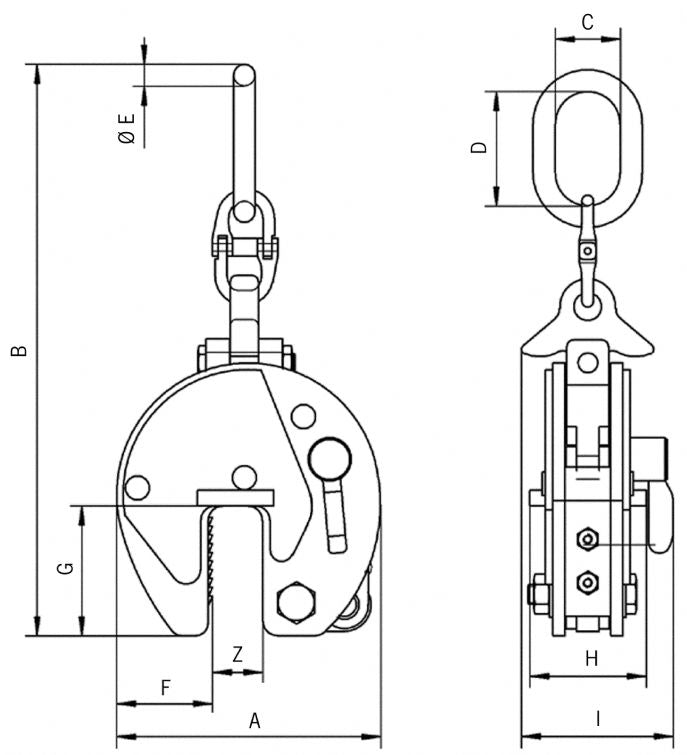

Model WLL
Kgs
Jaw Capacity (Z)
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
Weight
Kgs
CX1500 225-1500 0-20 140 399 63 125 12.5 48 70 57 83 7
CX3000 450-3000 0-32 197 515 67 138 19 68 93 81 110 12
CX3000L 450-3000 30-60 227 515 67 138 19 68 93 81 110 15
CX4500 675-4500 0-50 292 737 95 176 28 95 143 137 188 32
CX6000 1200-6000 0-50 292 737 95 176 28 95 143 137 188 38
CX6000L 1200-6000 50-100 367 785 98 180 28 115 143 135 188 48
CX8000 1600-8000 0-50 292 737 98 176 28 115 143 136 210 39
CX8000L 1600-8000 50-100 367 785 98 180 28 115 143 136 210 51
CX10000 2000-10000 0-50 360 903 110 195 33 125 162 170 223 61
CX10000L 2000-10000 50-100 446 921 112 195 33 168 162 170 223 76
