In stock
SKU: CAM000140

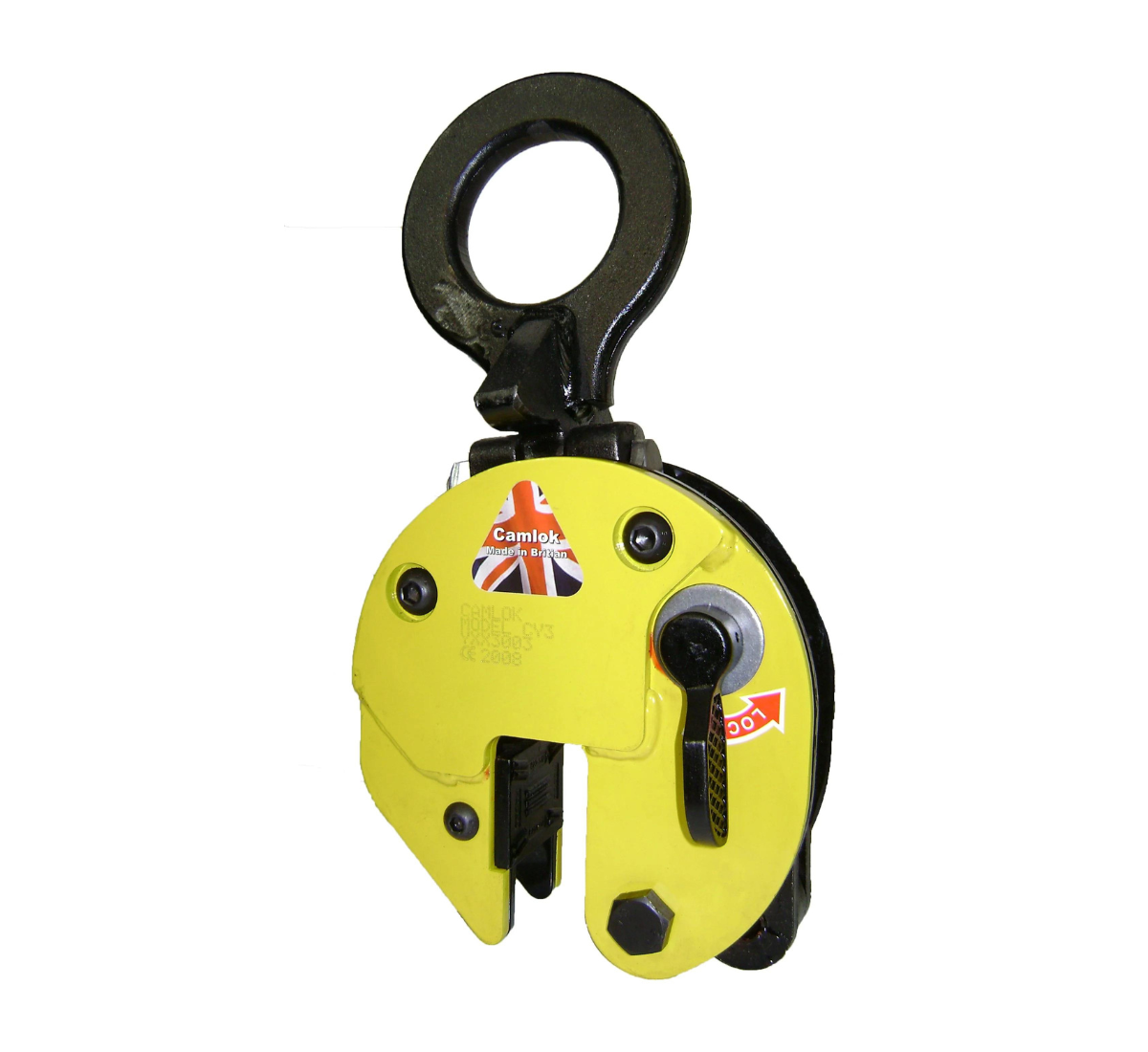

Camlok CY Hinged Vertical Plate Lifting Clamps

From: £304.26
Made in the UK
  • Hinged vertical plate clamp up to 3000kg WLL
  • Ideal for handling plates in different angles
  • The plate surface of the material must have a hardness level below HRC 30/Brinell 300
  • High quality made in the UK
Final Configuration Price:
From: £304.26
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

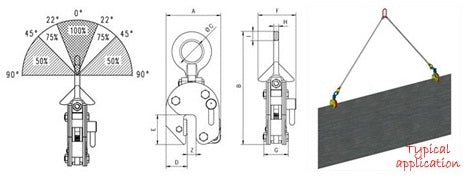

The CY plate clamps with hinged hook rings can be used for the safe handling of plate at various angles. It can lift plate from the horizontal and put down in the vertical. The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity is reduced as seen in the diagram.

The main benefit of the CY hinged plate clamps is that longer plates can be lifted or handled, using two clamps on a two-legged chain sling thus eliminating the need for a spreader beam.

  • High Quality
  • Individually Packaged
  • Complete with Individual Serial Number
  • Includes CE Declaration of Conformity Certificate

Model WLL
Kgs
Jaw Capacity (Z)
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
Weight
Kgs

CY1 100-1000 0-20 126 270 50 49 70 95 63 12 23 4.6
CY2 200-2000 0-32 192 382 80 75 96 132 92 20 30 14
CY3 300-3000 0-32 192 382 80 75 96 132 92 20 30 14
