In stock
SKU: CAM000039

Camlok LJ 'Non-Marking' Plate Clamps

From: £404.11
Made in the UK
  • Designed for lifting steel, iron, aluminium, wood etc
  • Non-marking
  • 500kg or 1500kg WLL
Final Configuration Price:
From: £404.11
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

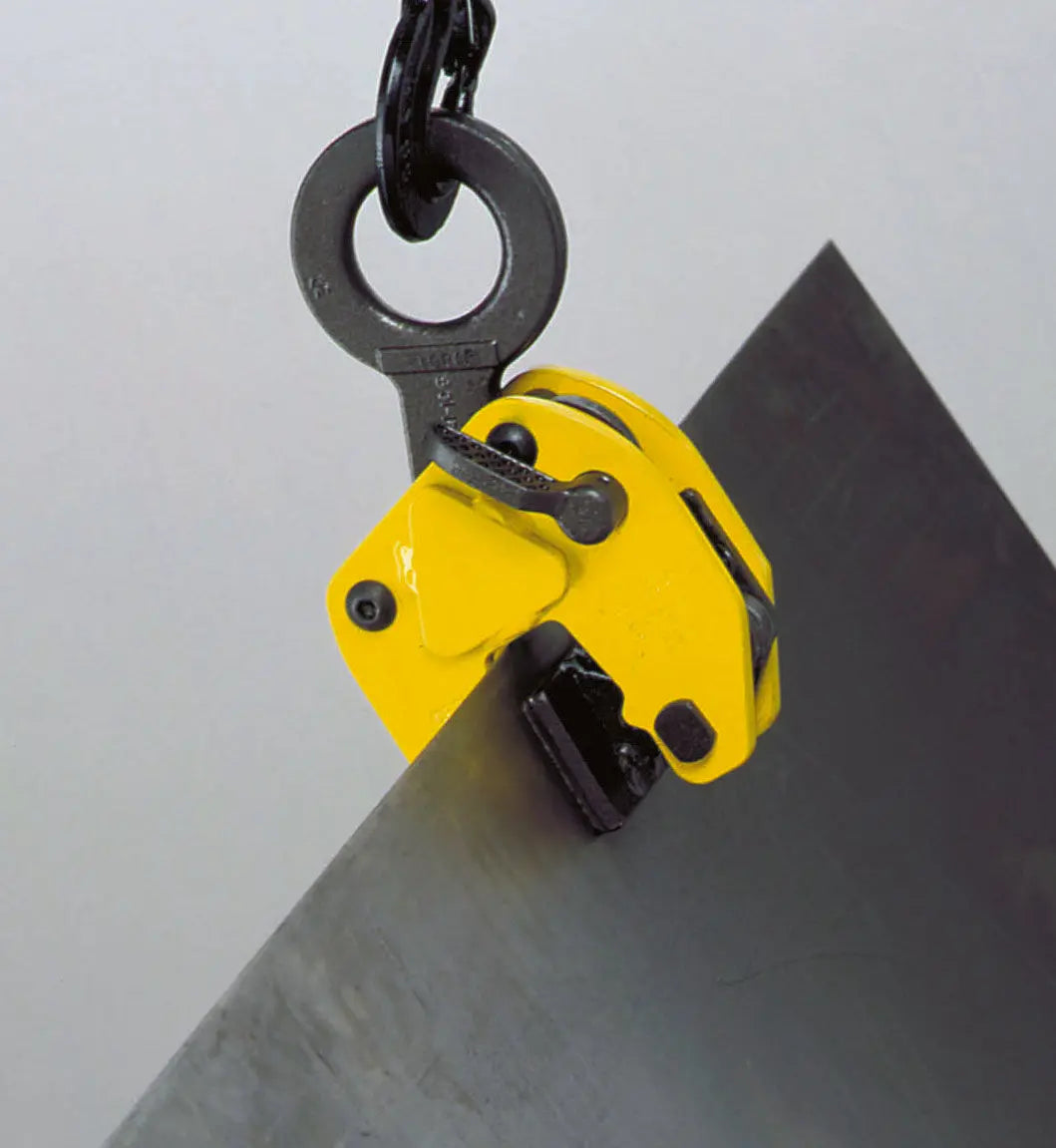

Camlok LJ "Non-Marking' Plate Clamps

These clamps have been specially designed and manufactured by Camlok for the transportation, turning or lifting of steel plates, iron, stainless steel, wood, aluminum etc. Their unique design enables the clamps to do this without any damage or leaving indentations on the surface of the item being lifted. Not only this, but these clamps can be used for plates with very hard surfaces.

The 'LJ' model offers the user 2 different pad types for their clamps depending on the material they're lifting:
 Rubber
 Leather

(please select which material option you require when ordering. If you aren't 100% sure, please feel free to contact our sales team who will be happy to point you in the right direction)

This model also offers the user a choice of 2 capacities:
(i) LJ 500 - 500kg Capacity
(ii) LJ1500 - 1500 Capacity

Please select which model you require when ordering.

When purchasing these clamps you have no long term worries either, they are completely service friendly. Parts are readily available meaning it's easy to buy/install parts when bits may start to look worn instead of replacing the whole clamp!

  • Available in 110v or 230v 1phase and also 400v 3phase to suit every application
  • Upper and lower limit switches as standard
  • 48v ergonomic pendant control rated to IP65 as standard
  • Thermal overload protection- this helps avoid damage to the motor if used beyond the duty rating (perfect for the hire industry)
  • FEM Classification 2m (50% duty = 30 minutes continuous use per hour)
  • Motor Classificiation H4
  • Compact unit provides great closed height dimensions giving optimal headroom
  • Lifetime lubricated gearbox contributes to exceptional service and maintenance characteristics
  • Load hook with axial bearing
  • Large frame single phase hoists provided with handles for easy transportation to and from site
  • Single phase units supplied with 1m supply cable and Cee-Form plug

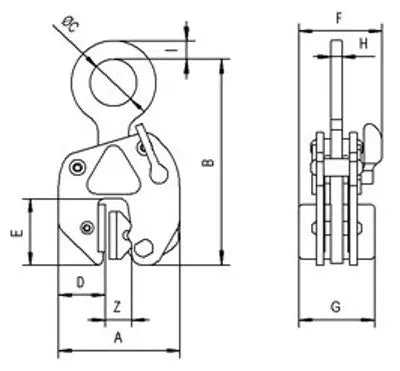

Model WLL
(kg)*
Jaw
Capacity
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
I
(mm)
Weight
(kg)**
LJ 500 25-500 0-10 127 200 50  52 69 86.5 76 13 20 3.5
LJ 1500 180-1500 0-20 215 345 85 75 135 131 118 20 24 12

* per clamp     **weight per clamp

*Please note: When lifting with these clamps ensure all oil, grease & liquid is removed from the material first!
