In stock
SKU: CAM000086

Camlok SC92 Beam Clamp With Shackle

From: $161.00
  • Capacity: 1,000kg-20,000 kg
  • Beam Width: 75-410mm
Final Configuration Price:
From: $161.00
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

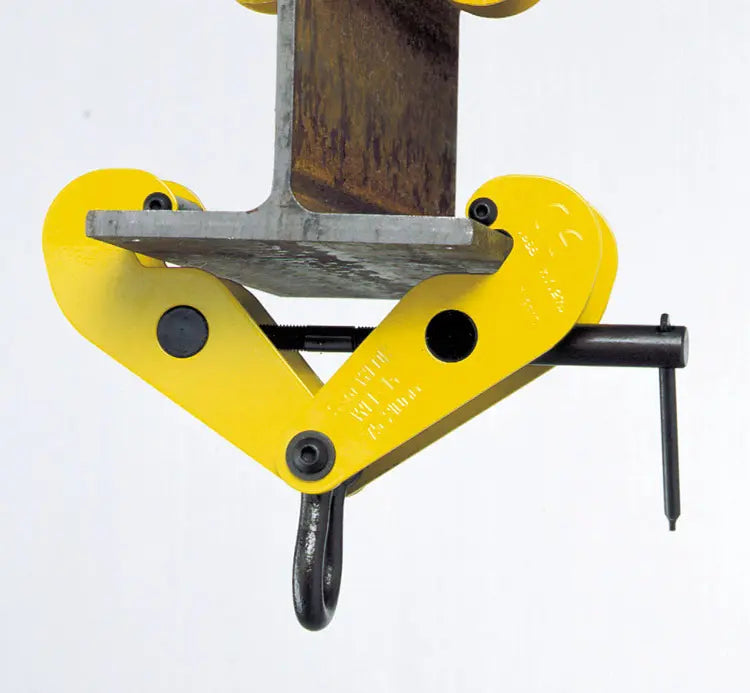

 The SC92 Beam clamp provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads. The unit offers flexible applications, due to the wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip to the beam flange.

  • Capacity: 1,000kg-20,000 kg
  • Beam Width: 75-410mm

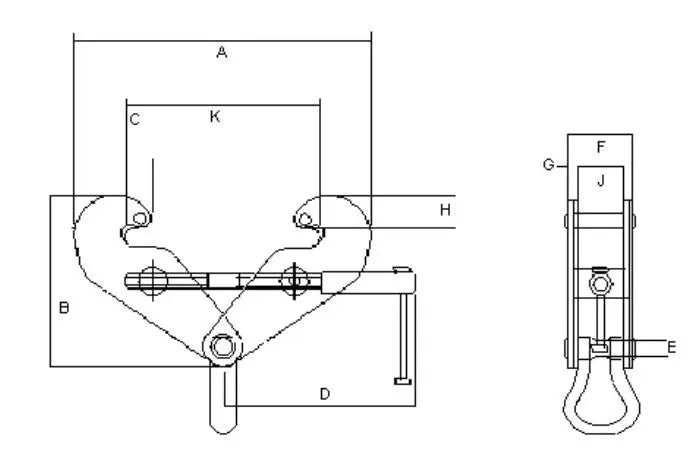

Model Capacity (kg) Beam Width (mm) Weight (kg) A Min/Max  (mm) B Min/Max (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H Min/Max (mm) J (mm) K Min/Max (mm)
SC92-1 1000 75-210 5 186-350 166-232 17 215 20 84 4 31-48 50 78-246
SC92-2 2000 75-210 6 186-350 167-234 18 215 20 94 6 32-50 50 78-246
SC92-3 3000 100-270 8 232-455 242-337 21 255 22 122 8 40-60 70 80-320
SC92-3/L 3000 75-305 9 232-455 242-337 21 255 22 122 8 40-60 70 80-320
SC92-5 5000 100-270 10 242-445 250-343 21 255 28 129 10 42-60 70 90-310
SC92-5L 5000 75-305 12 242-445 250-343 21 255 28 129 10 42-60 70 90-310
SC92-10 10,000 75-305 16 268-480 253-352 20 275 38 146 14 40-60 70 90-310
SC92-15 15,000 75-305 35 On Request On Request On Request​ On Request On Request On Request On Request On Request On Request On Request
SC92-20 20,000 300-410 87 On Request On Request On Request On Request On Request On Request On Request On Request On Request On Request
