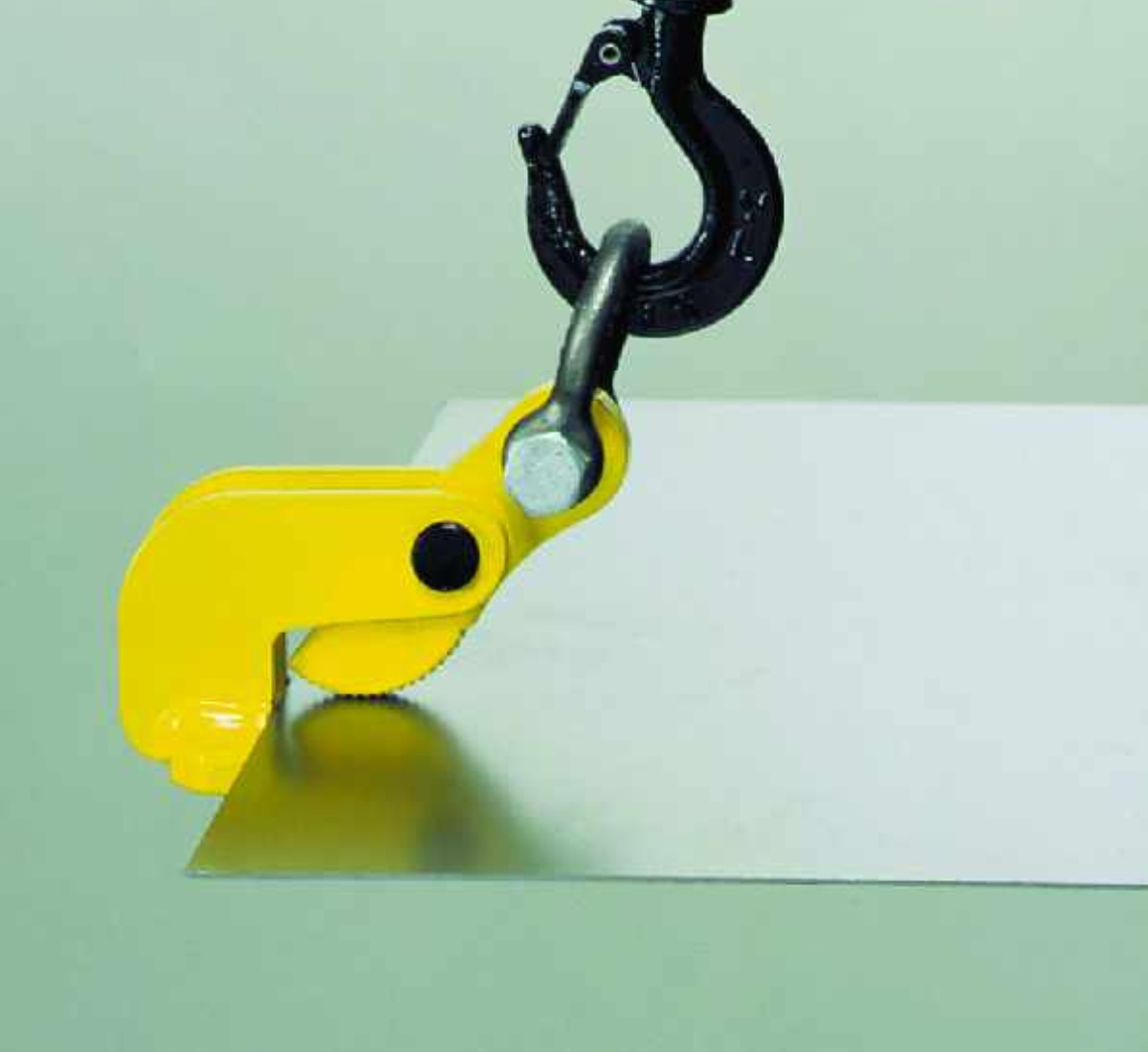

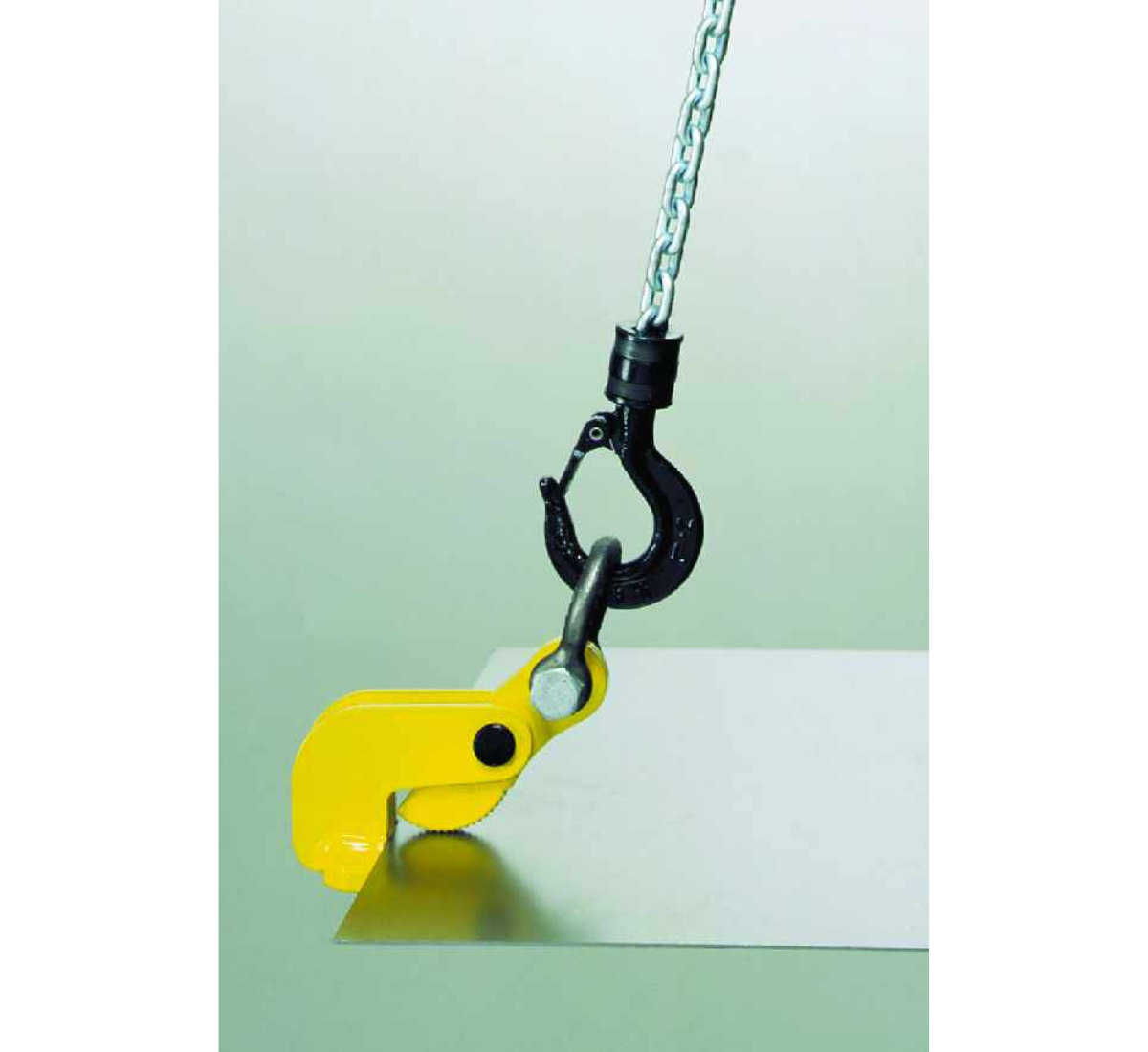

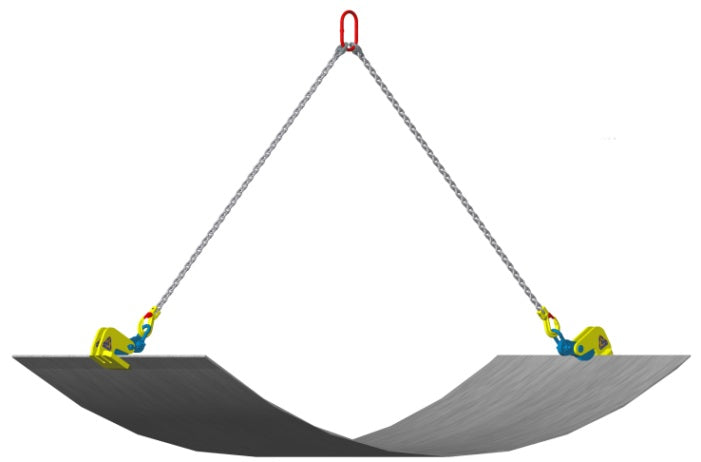

The THK horizontal plate clamps share the same basic design features as the CH range but have a reversed tooth jaw design. This acts as an addictional safety feature specifically for use with thin sheets which may have a tendency to sag or flex.
The THK clamps are particularly suited to thin plate with a surface harness less than 300 Brinell/ 32 Rockwell C.
| Model | WLL Kgs |
Jaw Capacity mm |
Weight Kgs |

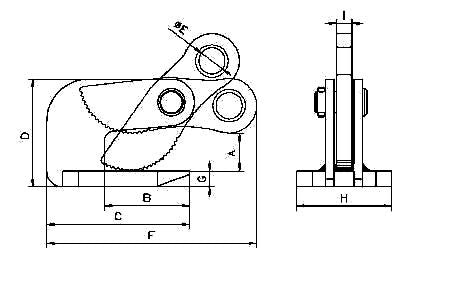

A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THK750 | 40-750 | 0-25 | 3 | 25 | 72 | 118 | 81 | 20 | 161 | 12 | 86 | 12 |
| THK1500 | 75-1,500 | 0-35 | 6 | 36 | 80 | 135 | 102 | 25 | 198 | 15 | 102 | 15 |
| THK3000 | 150-3,000 | 0-35 | 11 | 38 | 93 | 168 | 119 | 30 | 227 | 20 | 110 | 20 |
| THK4500 | 225-4,500 | 0-45 | 16 | 48 | 103 | 183 | 140 | 30 | 238 | 25 | 122 | 20 |
| THK6000 | 300-6,000 | 0-60 | 23 | 63 | 124 | 214 | 176 | 35 | 284 | 30 | 110 | 20 |
| THK9000 | 450-9,000 | 0-60 | 35 | 65 | 113 | 223 | 188 | 40 | 317 | 35 | 148 | 20 |
