SKU: CAM000213

Camlok TKG-VH Manual Balance Crane Forks

From: £981.03
  • Up to 5000kg capacity
  • Safety factor of 4:1
Final Configuration Price:
From: £981.03
Estimated time to dispatch
Estimated time to dispatch: 4-6 Weeks
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

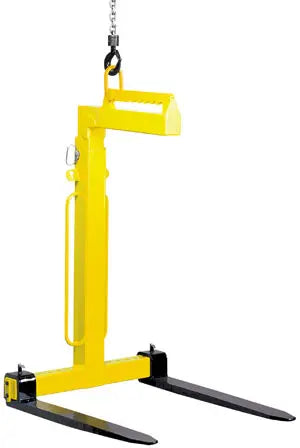

The TKG-VH range of crane forks are equipped with adjustable tines and have an adjustable height mast. The balancing system engages when the master link in manually hooked into the appropriate notch. The crane forks have a safety factor of 4:1 and are maintenance free. It has been painted in a highly visible safety colour so you should not miss this. The crane forks can be used for transporting rings or coils, this is possible by simply pushing the forks closer together. This makes it very easy to adjust the tines for all different pallet sizes. The crane forks are supplied with a length of chain for securing the load.

  • Up to 5000kg capacity
  • Safety factor of 4:1

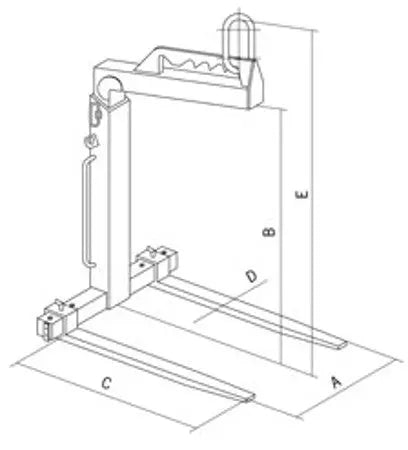

Model WLL (kg) Adjustment Of Tines (A) (mm) Useable Height (B) (mm) Length Of tines (C) (mm) Section Of Tines (D) (mm) Overall Height (E) (mm) Weight (kg)
TKG1.0vh 0-1000 350-900 1100-1600 1000 100x30 1390-1890 130
TKG2.0vh 0-2000 400-900 1300-2000 1000 120x40 1640-2340 200
TKG3.0vh 0-3000 450-900 1300-2000 1000 120x50 1670-2370 250
TKG5.0vh 0-5000 500-1000 1300-2000 1000 150x60 1700-2400 370
