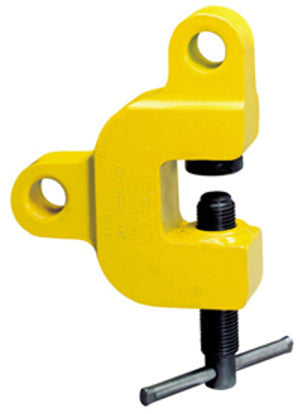

The TSZ two-way screw clamps offer many possible uses. Ideally suited for the construction industry. The unique design of the spindle makes it easy to attach to the angle plate. This is achieved by simply turning the handle which applies the pressure to the plate holding it securely. Two lifting points enabling it to pull in two different directions
*price per clamp*
*surface of material to be lifted must not exceed a hardness level of HRC 50/Brinell 480*
| Model | WLL (kg) | Jaw Capacity (mm) | Weight (kg) |
|---|---|---|---|
| TSZ500 | 500 | 0-28 | 3 |
| TSZ1500 | 1500 | 0-35 | 5 |
| TSZ3000 | 3000 | 0-35 | 9 |
| TSZ5000 | 5000 | 0-40 | 16 |
| TSZ7500 | 7500 | 0-40 | 21 |

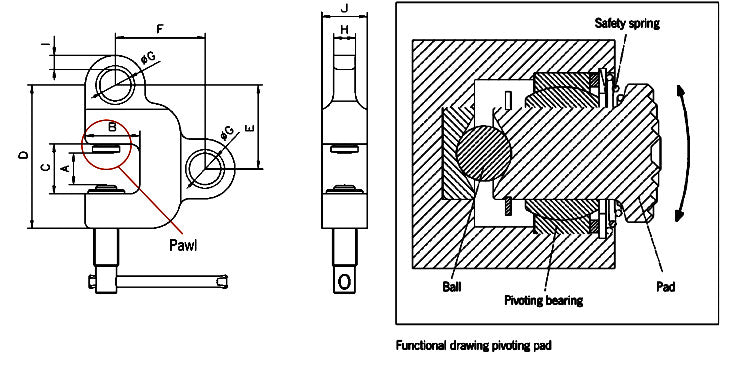

Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| TSZ500 | 28 | 43 | 45 | 125 | 72 | 83 | 26 | 16 | 12 | 35 |
| TSZ1500 | 35 | 60 | 55 | 158 | 93 | 99 | 35 | 24 | 16 | 50 |
| TSZ3000 | 35 | 67 | 65 | 195 | 114 | 120 | 46 | 34 | 17 | 60 |
| TSZ5000 | 40 | 85 | 75 | 230 | 113 | 150 | 55 | 40 | 18 | 75 |
| TSZ7500 | 40 | 92 | 75 | 240 | 143 | 162 | 65 | 50 | 23 | 80 |
