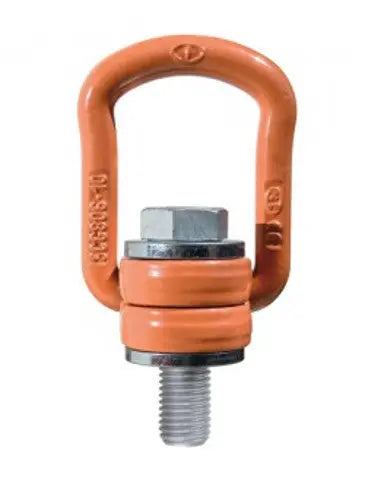

The Cartec 360˚ Swivel Lifting Points Metric are available in a lateral working load limit that ranges from 330kg up to 15,000kg. These lifting points are dedicated to lifting and transporting loads at various angles and provides multiple lifting positions. Thanks to the 360˚ Swivel the lifting points ensure that you have a perfect connection, and takes away the risk of twisting the load, unlike standard eyebolts. All the lifting points fully comply to the machinery directive 2006/42/CE. Bolt sizes vary from M8 up to M42, and thread length varies from 15mm all the way up to 63mm.

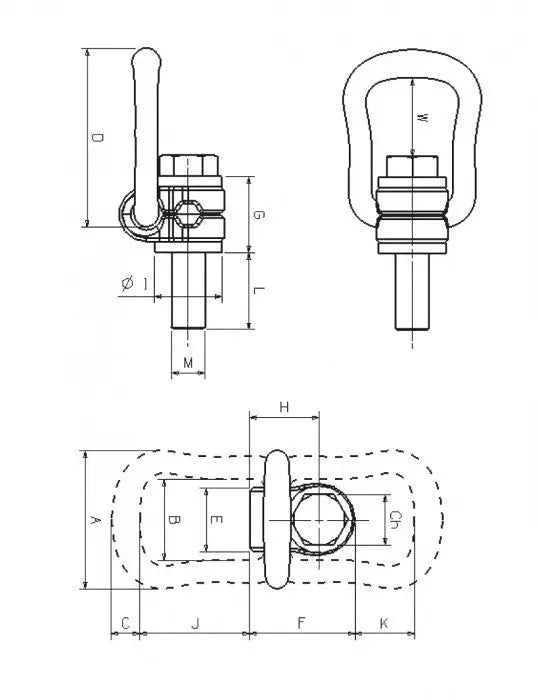

| Model | Lateral WLL (kg) | Bolt Size (mm) | Thread Length (mm) | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | L (mm) | W (mm) | J (mm) | K (mm) | CH (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C806X08 | 330 | M8 | 15 | 0.275 | 57 | 34 | 10 | 78 | 24 | 41 | 30 | 26.5 | 25 | 15 | 43 | 51 | 35 | 13 |
| C806X10 | 630 | M10 | 15 | 0.29 | 57 | 34 | 10 | 78 | 24 | 41 | 30 | 26.6 | 25 | 15 | 42 | 51 | 35 | 17 |
| C806X12 | 1000 | M12 | 23 | 0.5 | 66 | 38 | 13.5 | 85 | 30 | 50 | 36 | 33 | 32 | 23 | 40 | 52 | 28 | 19 |
| C806X16 | 1500 | M16 | 24 | 0.51 | 66 | 38 | 13.5 | 85 | 30 | 50 | 36 | 33 | 32 | 24 | 38 | 52 | 28 | 24 |
| C806X20 | 2500 | M20 | 31 | 1.25 | 87 | 55 | 16 | 111 | 48 | 68 | 44 | 42.5 | 45 | 31 | 54 | 71 | 36 | 30 |
| C806X24 | 4000 | M24 | 37 | 1.3 | 87 | 55 | 16 | 111 | 48 | 68 | 44 | 42.5 | 45 | 37 | 51 | 71 | 36 | 36 |
| C806X30 | 5000 | M30 | 45 | 3.25 | 109 | 66 | 22.5 | 145 | 54 | 91 | 65 | 58.5 | 60 | 45 | 62 | 86 | 47 | 46 |
| C806X36T07 | 7000 | M36 | 50 | 3.30 | 109 | 66 | 22.5 | 145 | 54 | 91 | 55 | 58.5 | 60 | 50 | 60 | 86 | 43 | 55 |
| C806X36 | 8000 | M36 | 59 | 5.9 | 136 | 78 | 28 | 190 | 62 | 108 | 81 | 72.5 | 70 | 59 | 88 | 115 | 74 | 55 |
| C806X42T10 | 10,000 | M42 | 75 | 6.5 | 136 | 78 | 28 | 190 | 62 | 108 | 75 | 72.5 | 70 | 75 | 86 | 115 | 70 | 65 |
| C806X42 | 15,000 | M42 | 63 | 11.2 | 169 | 97 | 36 | 242 | 68 | 131 | 89 | 87.5 | 85 | 63 | 121 | 151 | 97 | 65 |
