In stock
SKU: LES5349

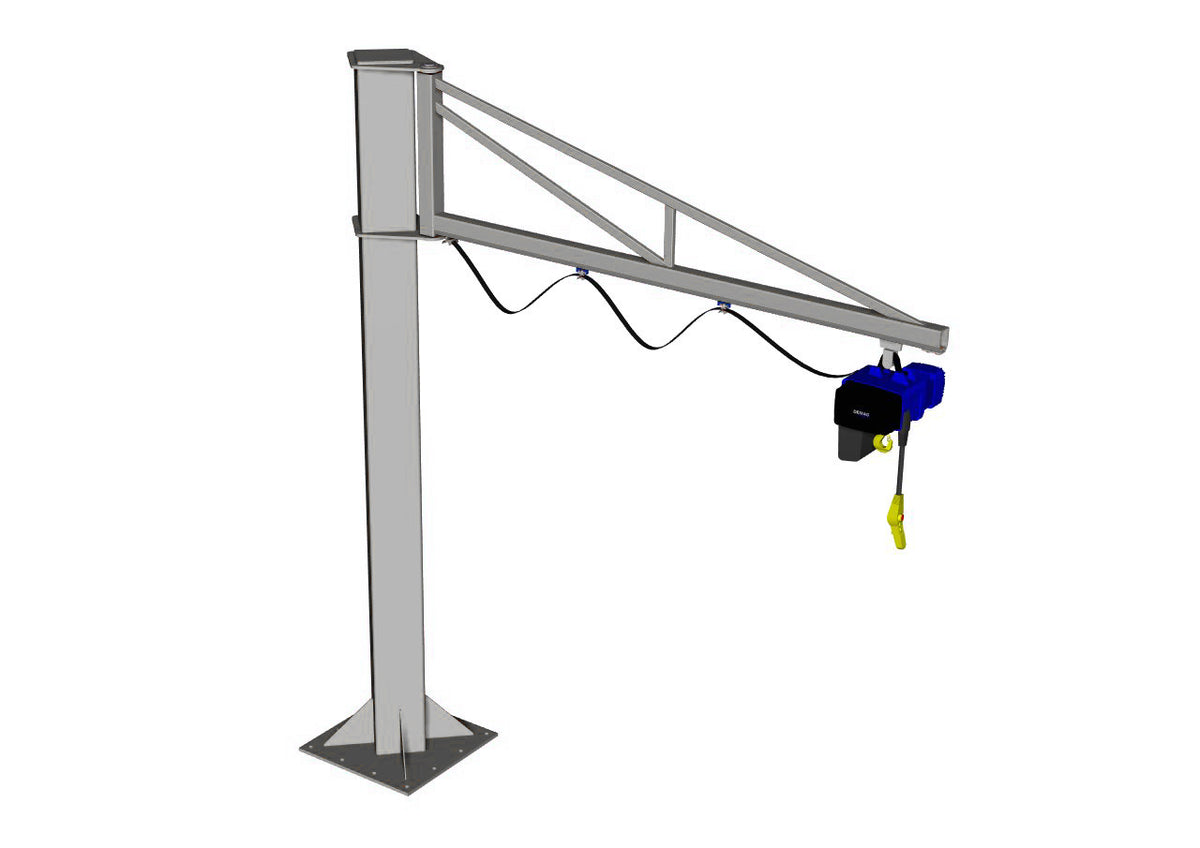

Free-Standing Over-Braced 125kg Stainless Steel Jib Crane

Price on Application
Made in the UK
  • SWL: 125kg
  • Arm length: 2m to 6m
  • Column height: 2m to 6m
  • Stainless steel finish
  • Over-Braced Profile
  • Free-standing design
  • Slewing arc 270° on standard arms
Estimated time to dispatch
Estimated time to dispatch: 3-4 Weeks
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout



NOTE: During Black Friday Week delivery might take a little longer due to the increased demand of our Black Friday sale. We thank you for your patience and we'll do our very best to get you your items as soon as we can.



DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

Our extensive range of Jib Cranes are becoming increasingly popular amongst our growing happy customers, thanks to the shorter lead times and lower prices than our competition.



This free-standing stainless steel jib crane model comes in a variety of lifting capacities from 80kg to 1000kg (search Jib Crane in our search function for the full range) with available arm lengths from 2m to 6m and an extensive variety of column heights from 2m to 6m.



Manufactured in Stainless steel, which is notorious for its high sanitation properties, ideal for pharmaceutical and food & beverage settings, and excellent protection in harsh environments where resistance to rust and corrosion is essential, such as water-based applications, this series is your perfect partner for lifting those heavy loads with peace of mind of added protection – both in- and outdoors.



Each of our over-braced jib cranes are assembled with a super-smooth and reliable running integrated push travel trolley specifically designed to accommodate a Hoist, vacuum lifter or tool balancer, all you need to do is hook or shackle into place.



Our range of free-standing jib cranes are supplied in kit form comprising of 2 items – the pillar and the arm. The pillars are manufactured to suspend the required jib arm safely, which is fixed to the column using a pivot pin. The arm can then rotate around the pillar, lifting within a predetermined arc.



DID YOU KNOW! To make your life as easy as possible, LES can arrange installation of your chosen jib crane, anywhere in the UK, in any environment. Simply contact us with your required jib crane set up and we’ll quote you a price to get you up and running. Call 01384 567430



To make the selection process as easy and faultless as possible, we are now offering a suitable electric or manual chain Hoist as an option. We’ve done the calculations for you, and we’re positive you’ll be happy with our choice.



If you opt for the electric chain Hoist, you will be receiving a Yale CPV – a best-in-class motorised 400v three-phase chain Hoist with ‘dual speed’ renowned for its quality, durability and aesthetically pleasing appearance.



LES can also offer systems with a lifting capability of up to 5T with larger arms upon request. Why not contact us today with your enquiry.



By selecting the Manual Hoist option, you will be kitted out with a Yale VSIII Hand Chain Hoist new and improved to help prevent tilting or jamming, leading to smooth running. EN818-7 rated, this Hoist is manufactured with high-quality bearings, gearbox and load chain sheave to guarantee reliable, efficient, and safe operation.



In addition, as a further option, we are offering the accompanying Hoist electric set-up, once again providing you with peace of mind that you’re getting a kit that is perfectly suited to work efficiently when erected.



But don’t forget that you can also choose a Hoist of your own, why not browse our range online, or contact our expert sales team to discuss your options.



YOUR JIB CRANE SELECTION CHECKLIST

  • Identify the lifting capacity, arm length, and overall height of your jib crane
  • Selecting your Chain Hoist Option – No, Yes – electric, or Yes - manual
  • An integrated push trolley is fitted as standard, so there’s no need to add this as an extra
  • Add to Basket



How easy is that, and don’t forget, if you have any questions, drop us a line and we’ll give you the answers.



*NOTE: WHEN CHOOSING OUR STAINLESS STEEL JIB CRANE MODEL, IF A Hoist IS SELECTED IT IS OF A STANDARD STEEL CONSTRUCTION, IF A STAINLESS STEEL Hoist IS REQUIRED, THESE ARE POA AND YOU NEED TO CONTACT SALES TO DISCUSS YOUR REQUIREMENTS.



PLEASE NOTE: PRICES SUBJECT TO CHANGE – These prices are accurate as of 11/05/2022 but due to the global steel market may fluctuate at any given time. We will continue to update these prices as when advised and aim to maintain accurate pricing. Please don’t hesitate to contact our Sales Team for more information & quotations.

  • SWL: 125kg
  • Arm length: 2m to 6m
  • Column height: 2m to 6m
  • Stainless steel finish
  • Over-Braced Profile
  • Free-standing design
  • Slewing arc 270° on standard arms

Free Standing Profile Jib Crane Dimensions

SWL (kg) Radius (mm) Kingpin Height (kg) Trolley Depth (mm) Pivot Point (mm) Arm Weight (kg)
80 2000 400 57 190 40
125 2000 400 57 190 40
250 2000 500 120 230 48
500 2000 600 141 260 51
1000 2000 600 202 315 91

*These dimensions may vary if the height of the jib crane (H) is increased or decreased



Base Plate Details



  J-Base450 J-Base600 J-Base700 J-Base850
D (mm) 450 600 700 850
d (mm) 380 255 300 250
No. of Holes 4 8 8 12
Hole Diameter (mm) 22 25 25 30
Min Thickness of Floor (mm) 130 135 165 160
Max Distance from Edge of Concrete (mm) 100 150 150 150
Grade of Concrete C30/37 C30/37 C30/37 C30/37
Bolt Size M16 M20 M20 M24
Diameter of Hole in Floor (mm) 18 24 24 28
Dept of Hole in Floor (mm) 80 90 90 100
Recommended Anchor Type HILTI-HY 200-A + HIT-V (8.8) HILTI-HY 200-A + HIT-V (8.8) HILTI-HY 200-A + HIT-V (8.8) HILTI-HY 200-A + HIT-V (8.8)
