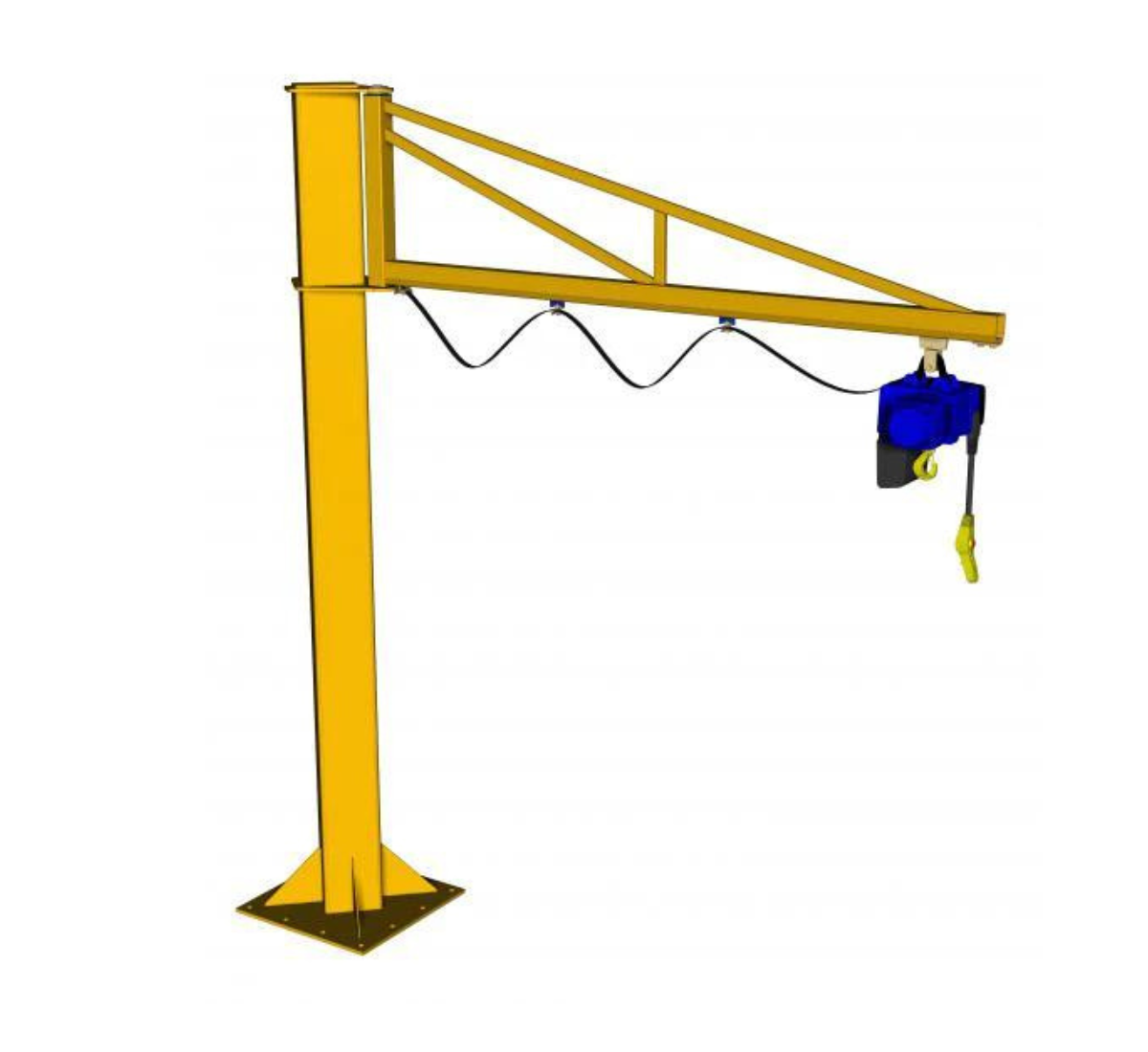

Free Standing Over-Braced Jib Crane 4m Arm

£1,544.00
Made in the UK
  • SWL 80kg, 125kg, 250kg, 500kg or 1000kg
  • Arm length 4m (see other products for larger and contact our office for custom sizes)
  • Column height up to 5m (bespoke sizes on request)
  • 270-degree manual slew
  • Fitted with integrated push travel trolley for suspending hoists, vacuum lifters and tool balancers
  • Optional electrics and festoon cable system for electric hoist as standard c/w Isolator
  • Optional Fixing Bolts
  • Hoist sold separately (see below-related products)
Final Configuration Price:
£1,544.00
Estimated time to dispatch
Estimated time to dispatch: 4-6 Weeks
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

Our range of Jib Cranes is becoming increasingly popular amongst many happy customers due to shortened lead times and lower prices than the competition. This Free Standing Jib Crane model comes in a variety of lifting capacities from 125kg-1000kg with column heights up to 6m while the arm is 4m in length (see related products for other sizes). Supplied as standard in a powder coated yellow finish for indoor use, our Jib Cranes are also available Galvanised or Stainless Steel for outdoor applications upon special request.

Every Over-Braced Jib Crane is fitted with a super smooth running integrated push travel trolley designed to accommodate a hoist, vacuum lifter or tool balancer, simply hook or shackle into place. Supplied as an option complete with electrics for a hoist- cables supported by integrated cable trolleys within the jib arm ensuring efficient management of supply cables.

*Our Jib Cranes are made to order and are sometimes delivered in as quick as 10 days. Prices do not include installation, should installation be required please contact our sales team.

*Chain Hoist Sold Separately



How to Order Your Hoist

In addition to your Free Standing Jib Crane will require a hoist of the equivalent capacity, here's how to get started:

  1. Select between the below-related products and take into consideration the below to ensure selection of the correct Chain Block or Electric Chain Hoist
  2. Ensure the hoist's SWL or Capacity is the same as the crane eg. 250kg Crane SWL = 250kg Hoist SWL
  3. Select 'Hook Suspension' as the suspension method
  4. Decide on the hoists height of lift, this is the distance from the underside of the jib arm to the floor (also consider if lifting in and out of a pit or off a mezzanine floor that you may require an additional height of lift.
  5. Add to basket and checkout, if you need assistance simply contact our sales team!



Jib Crane Check List

  • Decide how high you need your jib crane and how long the arm needs to be
  • Specify and add the jib crane to your basket, electrics for a powered hoist if required
  • An integrated push trolley is fitted as standard (so no need to add a trolley with your hoist)
  • Select a Chain Block or Electric Chain Hoist with 'Hook Suspension' or 'Lug Suspension' and ensure the appropriate height of lift is selected, add to your basket (this is a separate item- please see below 'Related Products')



PLEASE NOTE: PRICES SUBJECT TO CHANGE – These prices are accurate as of 11/05/2022 but due to the global steel market may fluctuate at any given time. We will continue to update these prices as when advised and aim to maintain accurate pricing. Please don’t hesitate to contact our Sales Team for more information & quotations.

  • 270 degree manual slew of jib arm
  • Arm fitted with integrated push travel trolley
  • Arm fitted with optional festoon cable management system and electrics for hoist
  • Floor mounting/base plate fitted to column ready to mount on to existing floor

Free Standing Profile Jib Crane Dimensions

SWL Arm Length (Radius) R (mm) Kingpin Height B (mm) Trolley Depth h1 (mm) Overall Height H (mm) Height to Under Arm h (mm) Pivot Point A (mm) Base Size D (mm) * Overturning Moment Mf (kg.m)* Downward Force P1 (kg)* Arm Weight (kg) Column Weight (kg)
80kg 4000 500 57 3000 2500 230 450 617 341 58 158
125kg 4000 500 67 3000 2500 230 450 845 399 60 158
250kg 4000 600 67 3000 2400 260 600 1492 663 71 158
500kg 4000 750 81 3500 2750 260 600 2800 1018 90 273
1000kg 4000 850 104 3500 2750 315 700 5472 1835 136 399

3m=3000mm

*These dimensions may vary if the height of the jib crane (H) is increased or decreased

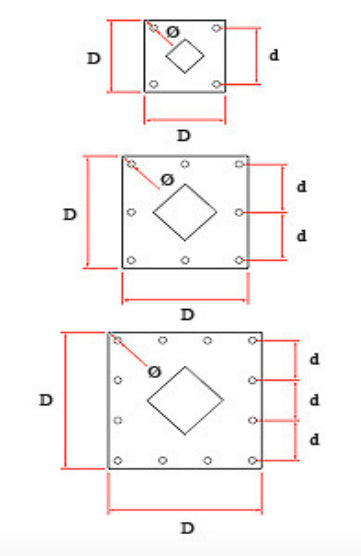

Base Plate Details



  J-Base450 J-Base600 J-Base700 J-Base850
D (mm) 450 600 700 850
d (mm) 380 255 300 250
No. of Holes 4 8 8 12
Hole Diameter (mm) 22 25 25 30
Min Thickness of Floor (mm) 130 135 165 160
Max Distance from Edge of Concrete (mm) 100 150 150 150
Grade of Concrete C30/37 C30/37 C30/37 C30/37
Bolt Size M16 M20 M20 M24
Diameter of Hole in Floor (mm) 18 24 24 28
Dept of Hole in Floor (mm) 80 90 90 100
Recommended Anchor Type HILTI-HY 200-A + HIT-V (8.8) HILTI-HY 200-A + HIT-V (8.8) HILTI-HY 200-A + HIT-V (8.8) HILTI-HY 200-A + HIT-V (8.8)
