In stock
SKU: GAL000119

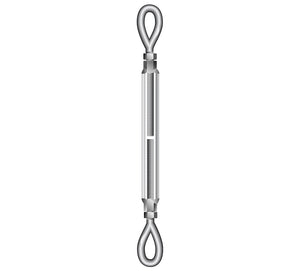

Galvanised Turnbuckle- Eye/Eye

From: £2.77
  • Both ends with eyes
  • No opening shackle connections
  • Hot dip galvanised finish
  • Drop forged
  • UNC thread type
Final Configuration Price:
From: £2.77
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Galvanised eye/eye type open Turnbuckles, otherwise known as open body barrel strainers are intended to provide an adjustable rigging connection which applies tension between two components (usually wire ropes and suspension points). Meeting the working load limit performance requirements of ASTM F1145-05 Type 1 Grade 1 (formerly US FED SPEC FF-T-791b).

The open barrel design gives a clear indication of thread extension whilst both eyes are closed and provide a safe connection point to ensure the rigging is securely fastened. A hot dip galvanised finish gives an added protection against corrosion in normal environments.

  • Both ends with eyes
  • No opening shackle connections
  • Hot dip galvanised finish
  • Drop forged
  • UNC thread type

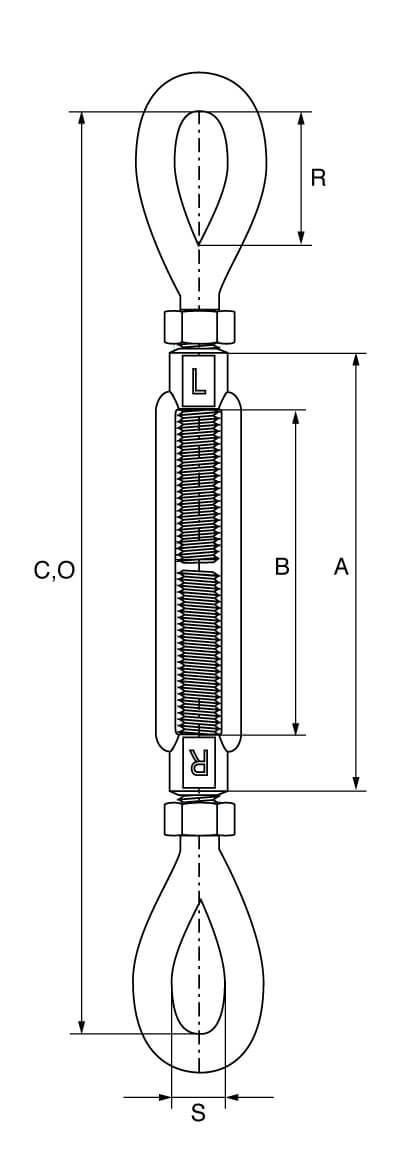

Product Code Size Take Up W.L.L. A B R S C O Weight
  inches Inches t mm mm mm mm mm mm kgs
TBEE6X4 1/4 4 0.23 120 102 20 8.5 215 307 0.14
TBEE8X4.5 5/16 4 1/2 0.36 138 114 24 11.2 249 354 0.20
TBEE10X6 3/8 6 0.54 180 152 28.5 13.5 308 460 0.34
TBEE12X6 1/2 6 1.00 190 152 36.5 18 380 532 0.71
TBEE12X9 1/2 9 1.00 267 229 36.5 18 456 685 0.85
TBEE12X12 1/2 12 1.00 343 305 36.5 18 510 815 1.00
TBEE12X18 1/2 18 1.00 495 457 36.5 18 684 - 1.60
TBEE16X6 5/8 6 1.59 203 152 45 22.5 398 550 1.17
TBEE16X9 5/8 9 1.59 279 229 45 22.5 474 703 1.42
TBEE16X12 5/8 12 1.59 355 305 45 22.5 550 855 1.67
TBEE19X6 3/4 6 2.36 213 152 53 25.4 448 600 1.87
TBEE19X9 3/4 9 2.36 289 229 53 25.4 524 753 2.22
TBEE19X12 3/4 12 2.36 365 305 53 25.4 600 900 2.57
TBEE19X18 3/4 18 2.36 517 457 53 25.4 752 1209 3.27
TBEE22X12 7/8 12 3.27 374 304 60 32 630 934 3.77
TBEE22X18 7/8 18 3.27 527 457 60 32 782 1239 4.70
TBEE25X6 1 6 4.54 233 152 76 37 552 704 4.10
TBEE25X12 1 12 4.54 385 305 76 37 704 1009 5.33
TBEE25X18 1 18 4.54 537 457 76 37 856 1313 6.56
TBEE25X24 1 24 4.54 690 610 76 37 1010 1620 7.83
TBEE32X12 1 1/4 12 6.89 388 305 90 46 776 1081 9.10
TBEE32X18 1 1/4 18 6.89 541 457 90 46 928 1385 10.94
TBEE32X24 1 1/4 24 6.89 693 610 90 46 1080 1690 12.75
TBEE38X12 1 1/2 12 9.71 403 305 103 53.8 838 1143 12.93
TBEE38X18 1 1/2 18 9.71 555 457 103 53.8 990 1447 15.43
TBEE38X24 1 1/2 24 9.71 708 610 103 53.8 1144 1754 17.97
TBEE44X18 1 3/4 18 12.7 571 457 117 60.5 1076 1544 23.37
TBEE44X24 1 3/4 24 12.7 724 610 117 60.5 1230 1840 26.91
TBEE50X24 2 24 16.8 740 610 146 68 1400 2010 39.93
TBEE63X24 2 1/2 24 27.2 795 610 165 79 1490 2100 70.96
TBEE70X24 2 3/4 24 34.0 795 610 178 82.5 1562 2172 82.22
