In stock
SKU: GEO000071

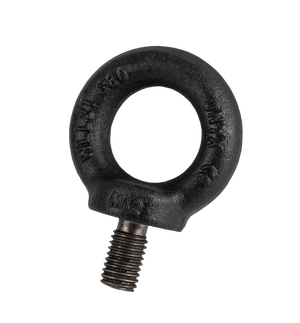

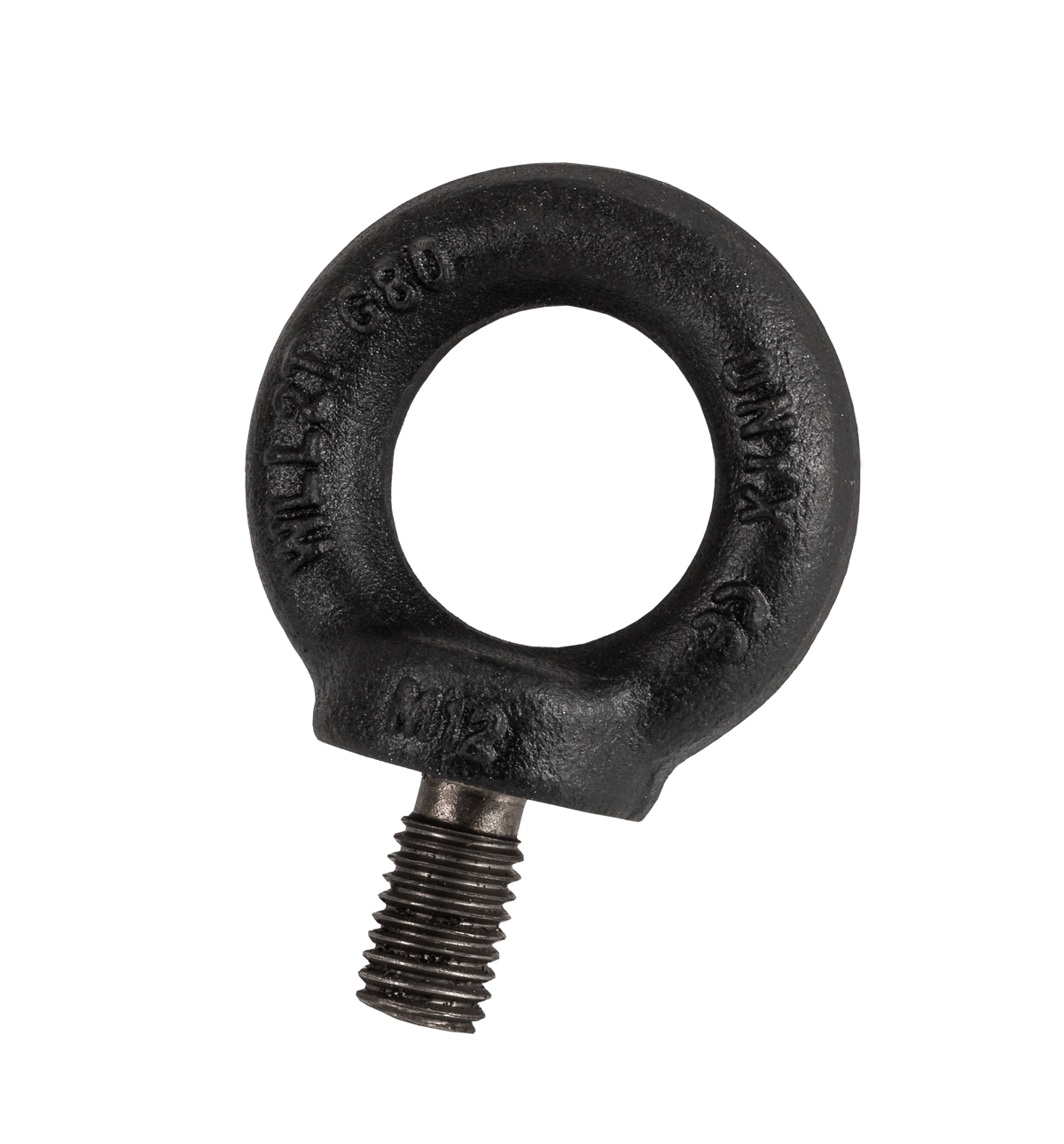

George Taylor Onyx Grade 80 Eyebolt

From: £2.37
  • Grade 80 alloy steel, quenched and tempered.
  • Matte black painted.
  • DIN 580 according to size.
  • -20°C up to +200°C.
  • M.B.L. equals 4 x W.L.L.
  • Marked with ONYX, CE, material grade, size and traceability code.
Final Configuration Price:
From: £2.37
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

George Taylor’s latest offering – the Onyx range – has been specifically designed for entertainment rigging applications, whilst maintaining the brands signature attention to detail and stance on quality engineering.

Finished with a matte black paint for entertainment and stage settings, this Eyebolt is manufactured from Grade 80 alloy steel (quenched and tempered) and has the capacity to operate efficiently in temperatures from -20°C up to +200°C.

Available in working load limits from 0.8t to 4t (note: WLL is based upon in line lifting only – see WLL chart for angles in downloads), each unit has a minimum breaking load equals to 4 times the stated WLL.

Fully certified and compliant, these Eyebolts are DIN 580 according to size. Furthermore, they are marked with the Onyx stamp, material grade, size, and traceability code for total peace of mind.

  • Grade 80 alloy steel, quenched and tempered.
  • Matte black painted.
  • DIN 580 according to size.
  • -20°C up to +200°C.
  • M.B.L. equals 4 x W.L.L.
  • Marked with ONYX, CE, material grade, size and traceability code.

Product Code

W.L.L

(t)

A

(mm)

D

(mm)

K

(mm)

L

(mm)

N

(mm)

Weight

(kgs)

OXEB8 0.8 8 36 15 51 20 0.06
OXEB10 1 10 45 18 63 25 0.11
OXEB12 2 12 54 22 75 30 0.18
OXEB16 4 16 63 28 90 35 0.29
